WISHBONES for POLARIS SPORTSMAN 6X6 - A06CL50AA from 2006

WISHBONES

1

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

2

TIE ROD 1/2-20X13.4 ASM.

1820805

1822852

$246,74 Unit Price incl. VAT

2

TIE ROD ASSEMBLY; 1/2 - 20 X 13.4

1822852

$246,74 Unit Price incl. VAT

3

SEAL BOOT ROD END 1/2 IN

5411291

5412928

$20,99 Unit Price incl. VAT

3

ROD END BOOT/SEAL; 1/2 IN

5412928

$20,99 Unit Price incl. VAT

4

RIGHT HAND END ROD

7061139

$115,49 Unit Price incl. VAT

4

ROD END;RH

7061034

7061139

$115,49 Unit Price incl. VAT

5

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

6

TIE ROD

5020926

$83,99 Unit Price incl. VAT

7

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

8

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

9

TIE ROD END

7061138

$104,99 Unit Price incl. VAT

9

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

10

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

10

BOOT; TIE ROD END; 10 MM

5412929

$20,99 Unit Price incl. VAT

11

WASHER

7556099

$3,14 Unit Price incl. VAT

12

NUT-M10X1.25-HX-LOCK-Y

7547177

7548155

$1,56 Unit Price incl. VAT

13

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

14

BALL-JOINT 52 DEG

7080927

7061306

$52,49 Unit Price incl. VAT

15

BALL JOINT BRACKET

5211121

$62,99 Unit Price incl. VAT

16

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

17

BOOT; RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

18

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

19

CV JOINT SHIELD; LEFT; GLOSS BLACK

5431150070

Not Available

19

CV JOINT SHIELD; RIGHT; GLOSS BLACK

5431149070

Not Available

20

SCREW

7512084

$2,09 Unit Price incl. VAT

21

BUSHING-A-ARM LONG BLK

5434551

5436973

$9,44 Unit Price incl. VAT

22

SHAFT-A-ARM(4X4)

5133806

$52,49 Unit Price incl. VAT

23

A-FRAME KIT; FRAME

2202283

9999999

Not Available

23

A-FRAME KIT; LEFT

2202282

$257,24 Unit Price incl. VAT

24

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

25

SCREW

7512492

$2,09 Unit Price incl. VAT

26

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

27

WASHER

7555832

$4,19 Unit Price incl. VAT

28

SCREW

7515415

9999999

Not Available

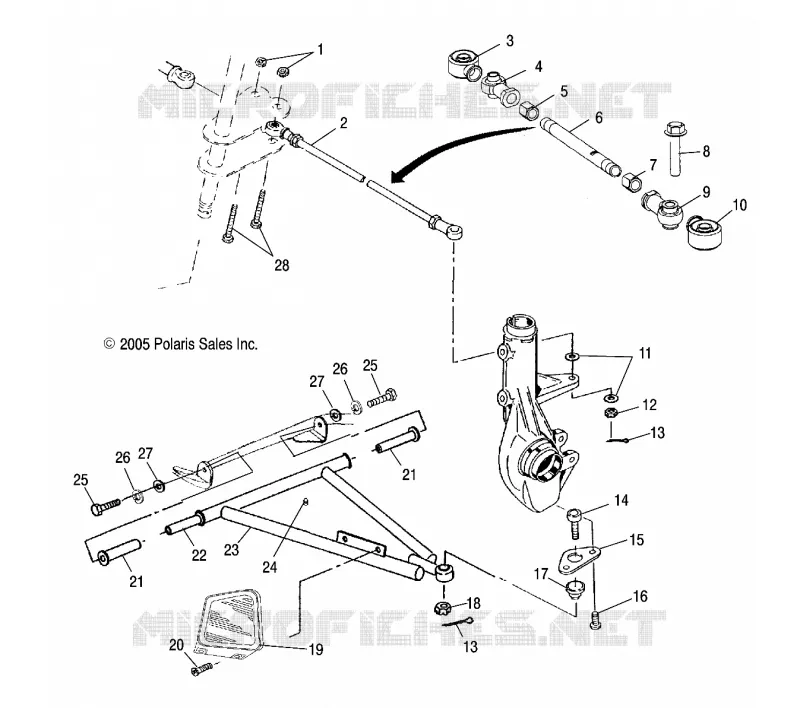

Find the detailed WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
