1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 6X6 - A06CL50AA
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
RACK, FRONT AND BUMPER MOUNTING
by
OIL TANK
COOLING SYSTEM
1
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
1
1
2
2
3
4
4
5
5
6
7
7
7
8
9
9
10
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
32
33
34
34
1
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
2
CAP-PRESSURE 13 PSI
1240044
1240508
$89,24 Unit Price incl. VAT
3
REMOTE COOLANT FILTER
5433364
$73,49 Unit Price incl. VAT
4
BRKT-REMOTE COOLANT FILL PLTD
5243505
9999999
Not Available
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
FLEXGUARD-PLASTIC GUARD
5433948
9999999
Not Available
7
ENGINE HOSE; UPPER
5411811
9999999
Not Available
8
CLAMP-ROTO SPRING 1"
7080827
9999999
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
FILLER NECK HOSE
5411632
9999999
Not Available
11
CLAMP-ROTO CLIP
7080826
9999999
Not Available
12
SCREW
7517659
9999999
Not Available
13
FAN AND MOTOR ASSEMBLY SPAL
2410430
9999999
Not Available
14
CLIP U
7670111
9999999
Not Available
15
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
16
MOUNT; RUBBER
3110032
9999999
Not Available
17
MOUNT SPACER
5020572
9999999
Not Available
18
SHROUD-FAN
5433059
9999999
Not Available
19
RADIATOR
1240178
9999999
Not Available
20
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
21
BOLT
7512240
9999999
Not Available
22
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
23
O-Ring
5411633
Not Available
23
VALVE-PLASTIC DRAIN
7052296
9999999
Not Available
24
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
25
RADIATOR BRACKET; LOWER; GS BLK
5243503067
Not Available
26
BOLT
7512232
$2,09 Unit Price incl. VAT
27
HOSE LOWER ENGINE
5411694
9999999
Not Available
28
GUARD-HOSE 12
5521511
9999999
Not Available
29
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
30
GASKET
5810279
$4,19 Unit Price incl. VAT
31
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
32
SURGE TANK
5433410
9999999
Not Available
33
FUEL LINE; 1/4 ID
84500031525
Not Available
34
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT

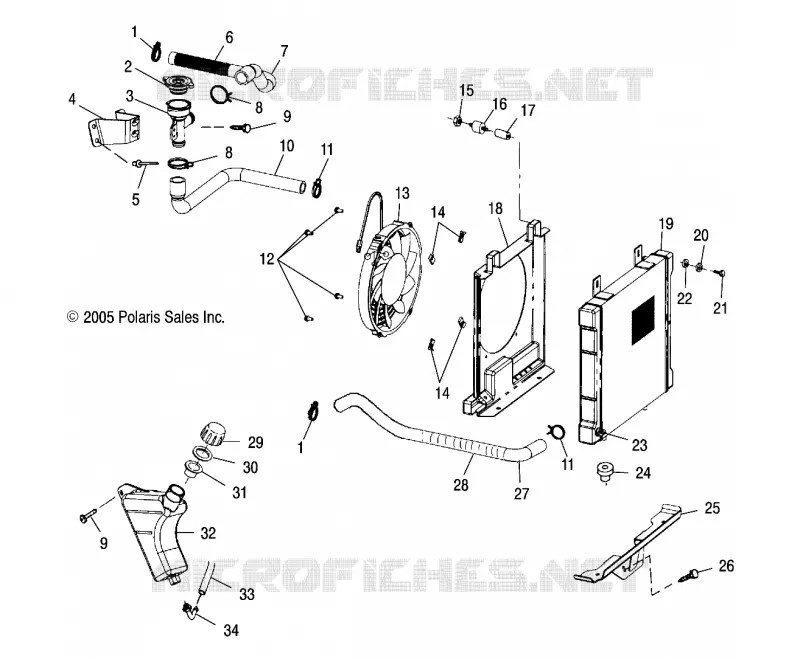

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
