DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 for POLARIS D16B3PD1AJ/B4 BRUTUS HD HDPTO (R02) - D16B4PD1AJ/B4 from 2016

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, THROTTLE PEDAL

DRIVE TRAIN, MAIN GEARCASE INTERNALS 1

1

HYDRO GEARCASE ASSEMBLY

1332941

9999999

Not Available

2

SCREW 6 MM X 1.0 MM 40 MM

3235208

$20,99 Unit Price incl. VAT

3

SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM

3235332

$7,34 Unit Price incl. VAT

4

SCREW; TORX PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

5

HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM

3235210

$14,69 Unit Price incl. VAT

6

CUP WASHER

3234091

$17,84 Unit Price incl. VAT

7

SCREW-CAP HH;M8 X 1.25 X 20

3235096

3236169

$17,84 Unit Price incl. VAT

8

WASHER

3235211

$19,94 Unit Price incl. VAT

9

WASHER

3235212

$25,19 Unit Price incl. VAT

10

WASHER

3235213

$31,49 Unit Price incl. VAT

11

SNAP RING

3233106

$10,49 Unit Price incl. VAT

12

RETAINING RING

3233834

$19,94 Unit Price incl. VAT

13

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

14

EXTERNAL RETAINING RING

3234318

$5,76 Unit Price incl. VAT

15

RING RETAININGBASICINTRNL2.047

3234269

$17,84 Unit Price incl. VAT

16

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

17

RETAINING RING

3234205

$20,99 Unit Price incl. VAT

18

RETAINING RING

3235214

$17,84 Unit Price incl. VAT

19

RETAINING RING

3235216

$19,94 Unit Price incl. VAT

20

THRUST WASHER

3233378

$17,84 Unit Price incl. VAT

21

THRUST WASHER; .446 X .88 X .025

3234642

$19,94 Unit Price incl. VAT

22

SHIM 1.180 X .995(9)

3234272

$68,24 Unit Price incl. VAT

23

SHIM; 2.040 OD X 1.630 ID

3234273

$26,24 Unit Price incl. VAT

24

NEEDLE BEARING

3233014

$74,54 Unit Price incl. VAT

25

BEARING

3233019

$54,59 Unit Price incl. VAT

26

BEARING

3233020

$80,84 Unit Price incl. VAT

27

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

28

BALL BEARNING

3234065

$80,84 Unit Price incl. VAT

29

NEEDLE BEARING

3233384

$54,59 Unit Price incl. VAT

30

BALL BEARING

3235218

$101,84 Unit Price incl. VAT

31

BALL BEARING

3234652

$27,29 Unit Price incl. VAT

32

BALL BEARING

3233265

$68,24 Unit Price incl. VAT

33

COMPRESSION SPRING

3234078

$47,24 Unit Price incl. VAT

34

COMPRESSION SPRING

3234089

$52,49 Unit Price incl. VAT

35

TORSION RETURN SPRING

3234276

$16,79 Unit Price incl. VAT

36

COMPRESSION DETENT SPRING

3234578

$26,24 Unit Price incl. VAT

37

SPRING WASHER

3235327

$17,84 Unit Price incl. VAT

38

SNORKLE TUBE

3234278

$188,99 Unit Price incl. VAT

39

SHIFT DRUM

3235463

$519,74 Unit Price incl. VAT

40

SECTOR GEAR; 16 TOOTH

3233839

$68,24 Unit Price incl. VAT

41

SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH

3233832

$68,24 Unit Price incl. VAT

42

ROLLER PAWL

3235452

$68,24 Unit Price incl. VAT

43

STAR; DETENT

3235477

9999999

Not Available

44

IDLER SHAFT; 29 TOOTH

3235223

$204,74 Unit Price incl. VAT

45

REVERSE SHAFT 35 TOOTH

3235407

9999999

Not Available

46

FRONT OUTPUT SHAFT

3235394

$246,74 Unit Price incl. VAT

47

SHAFT-HELICAL INPUT(353077)

3235408

9999999

Not Available

48

PINION SHAFT SUBASSEMBLY

3235336

9999999

Not Available

49

GEAR SUBASSEMBLY; 53 TOOTH

3235378

9999999

Not Available

50

BELLCRANK

3235474

$62,99 Unit Price incl. VAT

51

SHIFT COLLAR

3234073

$57,74 Unit Price incl. VAT

52

SHIFT RAIL; SHAFT

3235542

$52,49 Unit Price incl. VAT

53

FORK SHIFT

3235455

$173,24 Unit Price incl. VAT

54

ENGAGEMENT DOG

3234928

$136,49 Unit Price incl. VAT

55

PARK/LOW SHIFT DOG

3235457

$272,99 Unit Price incl. VAT

56

STAGE 2 GEAR; 38T

3235410

9999999

Not Available

57

SHIFT FORK SUBASSEMBLY

3235454

$167,99 Unit Price incl. VAT

58

LOW GEAR; 67 TOOTH

3235232

$230,99 Unit Price incl. VAT

59

6 FACE ENGAGEMENT DOG

3235233

$241,49 Unit Price incl. VAT

60

GEAR; 52 T

3235411

$278,24 Unit Price incl. VAT

61

STAGE 3 GEAR; 46 TOOTH

3235236

$204,74 Unit Price incl. VAT

62

OUTPUT GEAR; FRONT; 13 TOOTH

3235237

$246,74 Unit Price incl. VAT

63

SHIFT SHAFT

3235238

$68,24 Unit Price incl. VAT

64

LOCKING DIFFERENTIAL

3235373

$771,74 Unit Price incl. VAT

65

FORK RETAINER

3234934

$19,94 Unit Price incl. VAT

66

CENTER DRIVE BEARING COVER

3235241

$89,24 Unit Price incl. VAT

67

GEAR SUBASSEMBLY

3234469

$136,49 Unit Price incl. VAT

68

PLAIN BEARING; 10 X 12 X 25

3234239

$27,29 Unit Price incl. VAT

69

GEAR POSITION SWITCH PIN

7661999

$220,49 Unit Price incl. VAT

70

O-RING

3233836

$12,59 Unit Price incl. VAT

71

O-RING

3233828

$12,59 Unit Price incl. VAT

72

TRIPLE LIP SEAL; 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

73

EXPANSION PLUG; 1 1/4

3234249

$25,19 Unit Price incl. VAT

74

GEAR SUBASSEMBLY; 39 TOOTH; SIDE

3235374

$351,74 Unit Price incl. VAT

75

PLAIN BEARING; 40 X 44 X 15

3234241

$27,29 Unit Price incl. VAT

76

GEAR SUBASSEMBLY; 39 TOOTH; SIDE

3235375

$351,74 Unit Price incl. VAT

77

COVER SUBASSEMBLY

3235376

$262,49 Unit Price incl. VAT

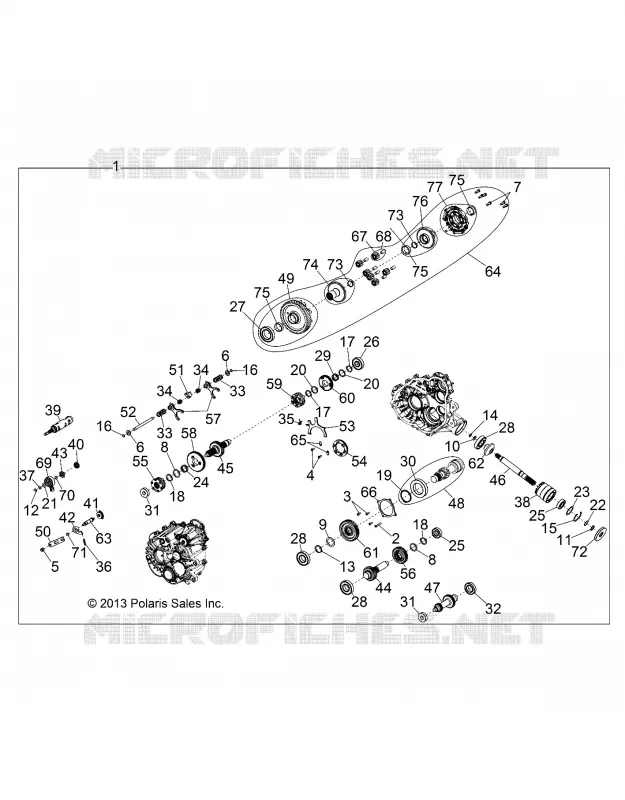

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
