HYDRAULICS PUMP VALVE HOUSING for POLARIS D16B3PD1AJ/B4 BRUTUS HD HDPTO (R02) - D16B4PD1AJ/B4 from 2016

HYDRAULICS MOTOR

HYDRAULICS TILT CYLINDER

HYDRAULICS PUMP VALVE HOUSING

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

2

CAP-END

3120667

9999999

Not Available

3

ADAPTER

3120675

9999999

Not Available

4

PIN

3120621

9999999

Not Available

5

BEARING-NEEDLE

3120666

9999999

Not Available

6

PLUG [INCL. 7]

3120663

Not Available

7

O-RING 10

3120740

9999999

Not Available

8

SPRING

3120627

9999999

Not Available

9

VALVE

3120622

9999999

Not Available

10

PLUG

3120619

9999999

Not Available

11

O-RING 10

3120588

9999999

Not Available

12

O-RING

3120628

$11,96 Unit Price incl. VAT

13

O-RING

3120647

9999999

Not Available

14

PIN-STRAIGHT

3120725

9999999

Not Available

15

PLUG

3120664

9999999

Not Available

16

O-RING

3120629

9999999

Not Available

17

SPRING

3120681

9999999

Not Available

18

VALVE-RELIEF CONE

3120658

9999999

Not Available

19

PLUG

3120616

9999999

Not Available

20

O-RING 10

3120588

9999999

Not Available

21

SCREW

3120679

9999999

Not Available

22

O-RING

3120617

9999999

Not Available

23

COUPLING

3120676

9999999

Not Available

24

RING-RETAINING

3120671

9999999

Not Available

25

KIT-SEAL

3120661

9999999

Not Available

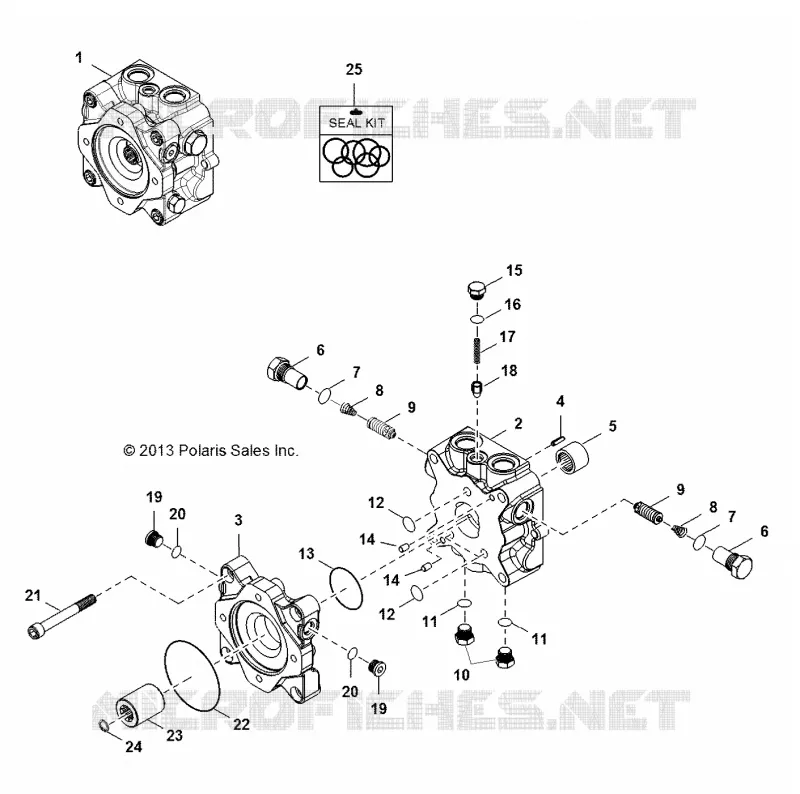

Find the detailed HYDRAULICS PUMP VALVE HOUSING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
