REAR SUSPENSION, ARTICULATING for POLARIS 550 INDY ADVENTURE 155 from 2020

REAR SUSPENSION, ARTICULATING

1

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

2

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

3

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

4

REINFORCEMENT-RAIL ART STOP

5139219

$62,99 Unit Price incl. VAT

5

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

6

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

7

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

8

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

8

ASSEMBLED WHEEL; GLOSS BLACK

1590388070

Not Available

8

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

9

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

10

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$62,99 Unit Price incl. VAT

11

BUSHING

7555918

$3,14 Unit Price incl. VAT

12

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

13

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

14

NUT

7547017

$10,49 Unit Price incl. VAT

15

HEX FLANGE SCREW 10 MM X 1.5 MM X 100 MM

7519167

$17,84 Unit Price incl. VAT

16

BUMPER STOP EXTENSION

5451469

$13,64 Unit Price incl. VAT

17

SCR-TXPH-M6X1.0X25 8.8 ZOD

7519993

$2,09 Unit Price incl. VAT

18

HEX FLANGE SCREW 10MM X 1.25MM X 250MM

7519327

$36,74 Unit Price incl. VAT

19

SPRING-EXTENSION TORSION BLK

7044136329

Not Available

20

SCREW

7515102

$9,44 Unit Price incl. VAT

21

WASHER

7555827

$7,34 Unit Price incl. VAT

22

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

23

ASM-FRAME ARTCLT EXTENSION SVC

1543370

$545,99 Unit Price incl. VAT

24

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

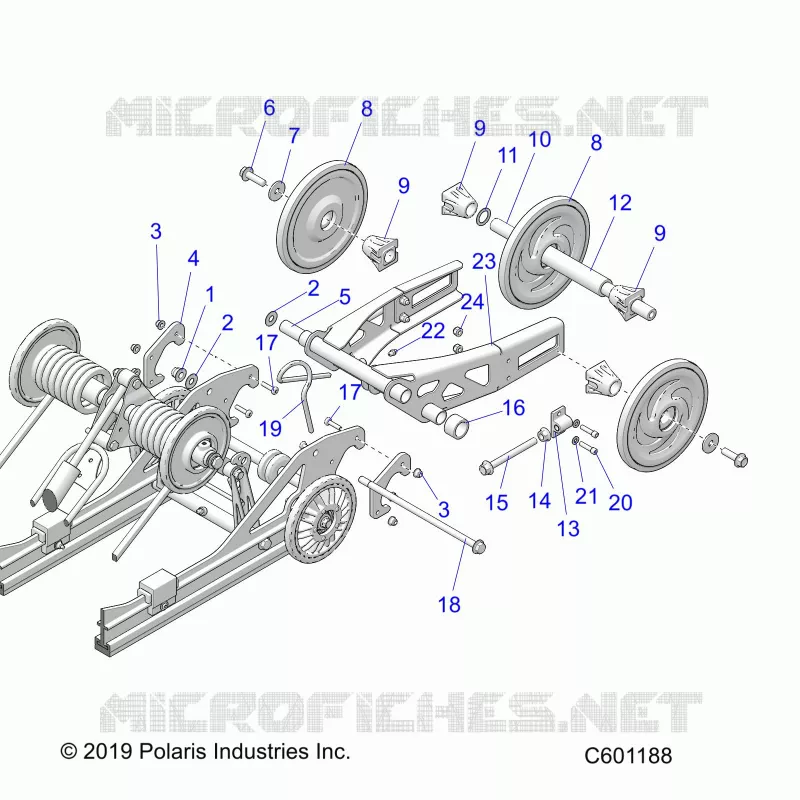

Find the detailed REAR SUSPENSION, ARTICULATING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
