REAR SUSPENSION AND TRACK for POLARIS 550 INDY ADVENTURE 155 from 2020

SUSPENSION, REAR TORQUE ARM

STEERING, HANDLEBAR, STEERING POST

REAR SUSPENSION AND TRACK

1

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

2

HEX FLANGE SCREW; 10 MM X 1.5 MM X 40

7519216

$9,44 Unit Price incl. VAT

3

WASHER

7556153

$3,66 Unit Price incl. VAT

4

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

5

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

6

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

6

TRACK 15 X 155 IN

5414902

$1 340,84 Unit Price incl. VAT

6

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

7

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$52,49 Unit Price incl. VAT

8

SPRING MOUNT PUCK

5451470

$20,99 Unit Price incl. VAT

9

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$36,74 Unit Price incl. VAT

10

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

11

WELD-REAR PIVOT ARM; ECOAT

1544229329

Not Available

12

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

13

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

14

WELD-SHOCK PIVOT ARM;60.33;BLK

1543408329

Not Available

15

OUTSIDE SPACER

5337106

$47,24 Unit Price incl. VAT

16

SHAFT-17.45X216.95

5137936

5140954

$73,49 Unit Price incl. VAT

17

BOGIE WHEEL ASSEMBLY

1590509

$99,74 Unit Price incl. VAT

17

RET.RING-1.658

7710700

$15,74 Unit Price incl. VAT

17

BEARING

3514777

$54,59 Unit Price incl. VAT

18

SHAFT 17.45 X 214.77

5137312

$52,49 Unit Price incl. VAT

19

WSHR-.719X1.250X.065-Y

7556210

$7,34 Unit Price incl. VAT

20

SHOCK CENTERING SPACER

5334062

$20,99 Unit Price incl. VAT

21

HEX FLANGE SCREW 10MM X 1.25MM X 250MM

7519327

$36,74 Unit Price incl. VAT

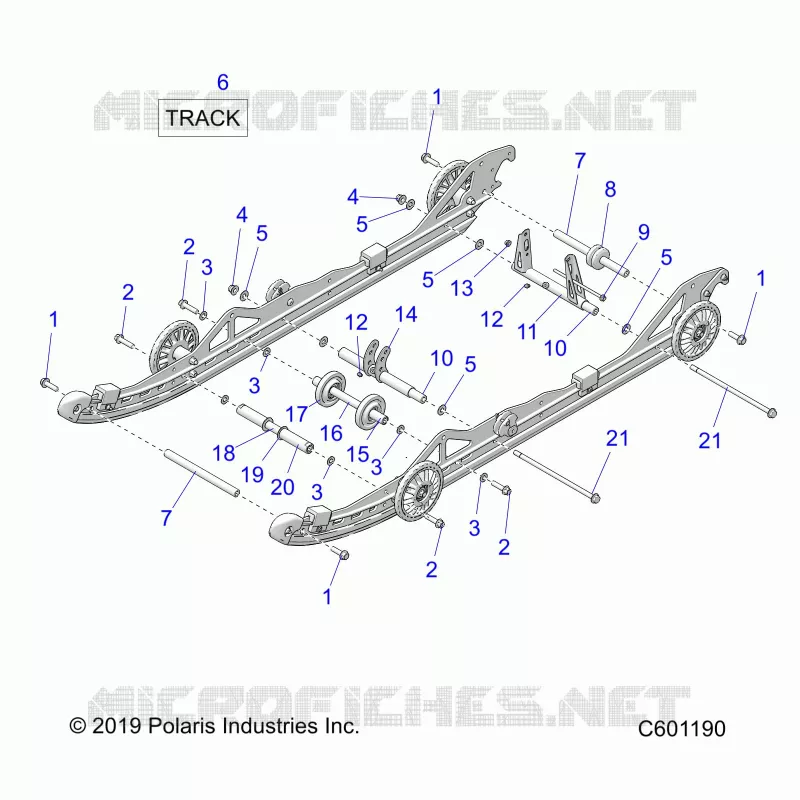

Find the detailed REAR SUSPENSION AND TRACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
