1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XCR 136
4
Parts Catalog
STEERING, SKI ASM. (INTL)
5
Parts Diagram
Parts Catalog
SUSPENSION, REAR TORQUE ARM
by
STEERING, SKI ASM. (INTL)
1
1
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
TOE-SKI INDY RED
5456439293
Not Available
1
TOE-SKI POLARIS BLUE NON-MET
5456439795
Not Available
1
TOE-SKI BLK
5456439070
Not Available
1
TOE-SKI RADIANT GREEN NM
5456439886
Not Available
2
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
3
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
4
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
5
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
6
PLASTIC SKI BUSHING
5136908
$27,29 Unit Price incl. VAT
7
RUBBER SKI STOP
5412794
$26,24 Unit Price incl. VAT
8
RMK SKI; INCLUDES BUSHINGS; GLOSS BLACK
1823660070
Not Available
9
BOLT 10 MM X 1.5 MM X 155 MM
7519098
$23,09 Unit Price incl. VAT
10
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
11
BOLT-1/4-20X4.25 HX/CP GR5
7518655
$7,34 Unit Price incl. VAT
12
CARBIDE SKAG 3 60DEG.
2875723
$110,24 Unit Price incl. VAT
13
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
14
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
15
SCR-5/16-18X1 TRX GR5 Y
7518070
$10,49 Unit Price incl. VAT

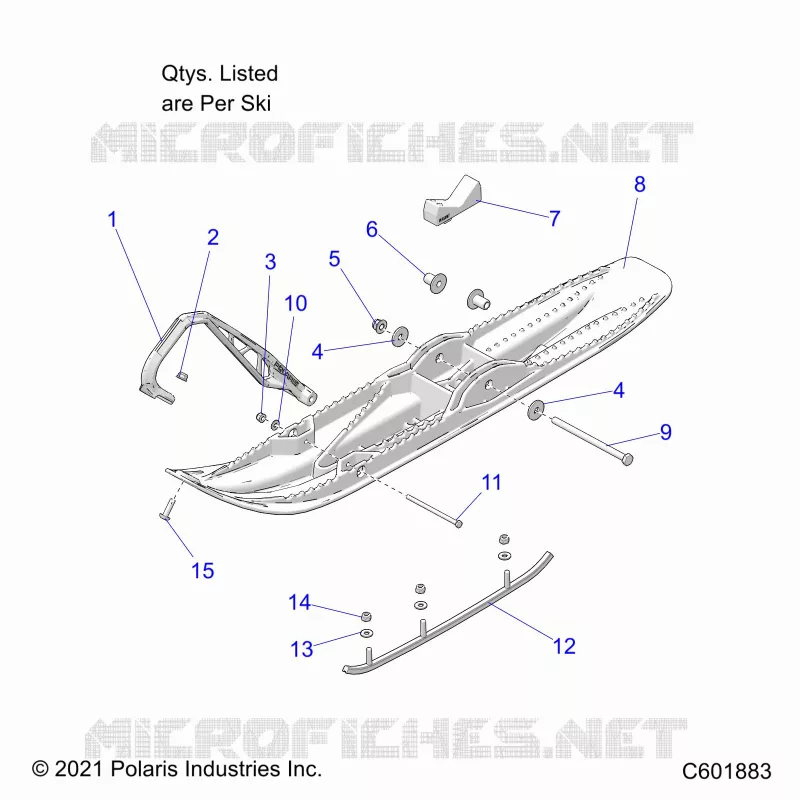

Find the detailed STEERING, SKI ASM. (INTL) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
