1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XCR 136
4
Parts Catalog
HOOD ASM.
5
Parts Diagram
Parts Catalog
DECALS, WHITE SIDE PANEL W/ RAD. GREEN TRIM
by
HOOD FOAM/SEAL
HOOD ASM.
1
1
1
1
2
2
2
3
4
5
5
5
6
7
8
8
8
9
10
11
11
12
13
1
HOOD-IN MOLD CRUISER BLACK
5459678266
Not Available
1
HOOD FOAM
2638091
$178,49 Unit Price incl. VAT
1
HOOD-IN MOLD WHITE LIGHTNING
5459678599
Not Available
1
HOOD-RADIANT GREEN METALLIC
5459679887
Not Available
2
TRIM-HOOD RH IN-MOLD CRSRBLK
5456444266
Not Available
2
TRIM-HOOD RH RADIANT GREEN MET
5457067887
Not Available
2
TRIM-HOOD RH IN-MOLD WHTLGHTNG
5456444599
Not Available
3
PLUG-HOOD RH
5457198
$9,44 Unit Price incl. VAT
4
HOOD CAP; BLK
5456423070
Not Available
5
SCR-10X 5/8 TX PN PLST-243
7518577
$4,19 Unit Price incl. VAT
6
STUD 1/4TH TURN
7662246
$18,89 Unit Price incl. VAT
7
1/4 TURN RETAINER; STEEL; 6 MM
7710807
$1,56 Unit Price incl. VAT
8
TRIM-HOOD LH RADIANT GREEN MET
5457066887
Not Available
8
TRIM-HOOD LH IN-MOLD WHTLGHTNG
5456443599
Not Available
8
TRIM-HOOD LH IN-MOLD CRSRBLK
5456443266
Not Available
9
PLUG-HOOD LH
5457197
$9,44 Unit Price incl. VAT
10
SCREEN-HOOD MID
5268326
$73,49 Unit Price incl. VAT
11
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT
12
SCREEN-HOOD LOWER
5268325
$68,24 Unit Price incl. VAT
13
SEAL-EDGE TRIM 125MM
5526473
$10,49 Unit Price incl. VAT

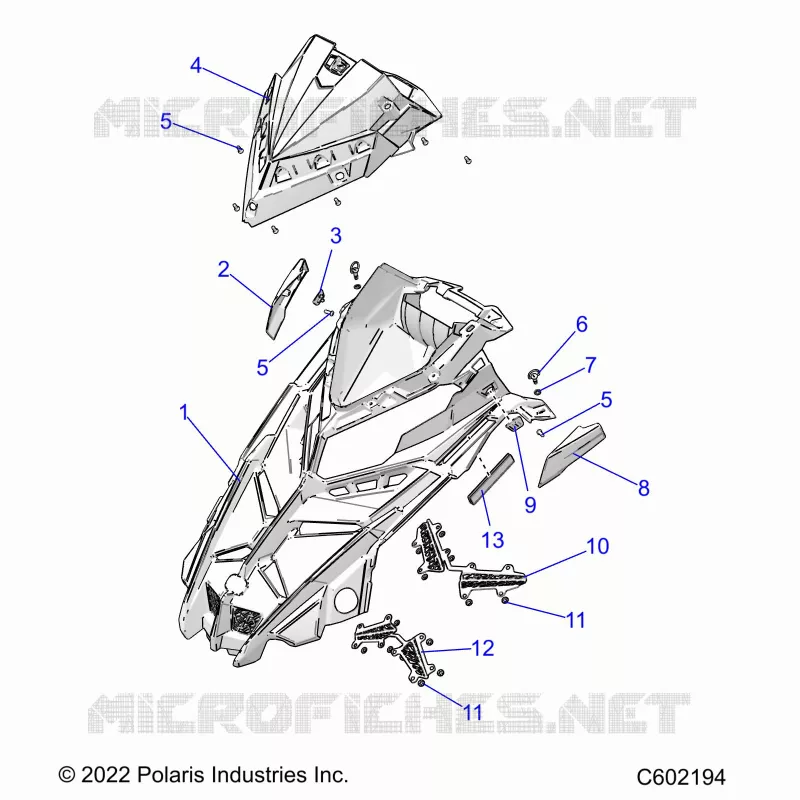

Find the detailed HOOD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
