1
Engine displacement
autre
2
Year
1991
3
Trim
LITE - 0913033
4
Parts Catalog

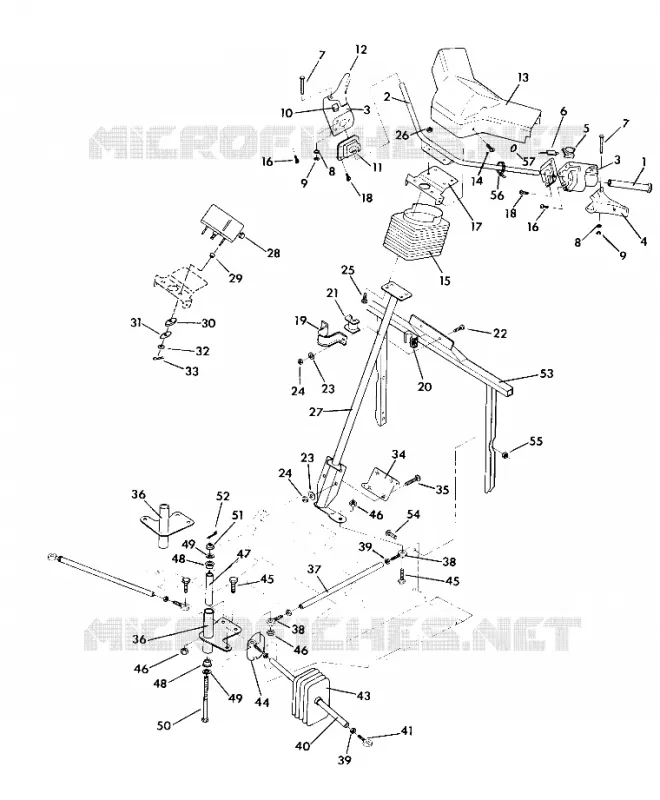

STEERING INDY LITE AND STAR LITE (4918591859009A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4918591859007A)
by
SUSPENSION INDY LITE AND STAR LITE (4918591859011A)
STEERING INDY LITE AND STAR LITE (4918591859009A)
1
2
3
3
4
5
6
7
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
16
17
18
18
19
20
21
22
23
23
24
24
25
26
27
27
27
27
28
28
28
28
29
30
31
32
33
34
35
36
36
36
36
37
38
38
38
38
38
38
38
38
39
39
39
39
39
39
39
39
40
41
41
41
41
43
44
45
45
46
46
46
47
48
48
49
49
50
51
52
53
54
56
1
2
3
3
4
5
6
7
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
16
17
18
18
19
20
21
22
23
23
24
24
25
26
27
27
27
27
28
28
28
28
29
30
31
32
33
34
35
36
36
36
36
37
38
38
38
38
38
38
38
38
39
39
39
39
39
39
39
39
40
41
41
41
41
43
44
45
45
46
46
46
47
48
48
49
49
50
51
52
53
54
56
1
2
3
3
4
5
6
7
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
16
17
18
18
19
20
21
22
23
23
24
24
25
26
27
27
27
27
28
28
28
28
29
30
31
32
33
34
35
36
36
36
36
37
38
38
38
38
38
38
38
38
39
39
39
39
39
39
39
39
40
41
41
41
41
43
44
45
45
46
46
46
47
48
48
49
49
50
51
52
53
54
56
1
2
3
3
4
5
6
7
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
16
17
18
18
19
20
21
22
23
23
24
24
25
26
27
27
27
27
28
28
28
28
29
30
31
32
33
34
35
36
36
36
36
37
38
38
38
38
38
38
38
38
39
39
39
39
39
39
39
39
40
41
41
41
41
43
44
45
45
46
46
46
47
48
48
49
49
50
51
52
53
54
56
1
GRIP H BAR BLACK
5410272067
Not Available
2
DESC NOT_AVAILABLE
1823148
Not Available
3
BLOCK THROTTLE/BRAKE
5431265
5431592
$73,49 Unit Price incl. VAT
4
LEVER-BRAKE
5430602
9999999
Not Available
5
SWITCH DIMMER
4110104
9999999
Not Available
6
SWITCH; BRAKE LIGHT
4110105
9999999
Not Available
7
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
10
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
11
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
12
THROTTLE LEVER
5430601
9999999
Not Available
13
COVER H#BAR(W/O SPEEDO) (WO/Speedometer)
5431233070
Not Available
13
COVER H#BAR W/SPEEDO (W/Speedometer)
5431232070
Not Available
14
SCREW
7512024
$9,44 Unit Price incl. VAT
15
BOOT STRG.POST
5431234070
Not Available
16
SCREW
7511848
$7,34 Unit Price incl. VAT
17
BRACKET Substituted by 5222472-067
5222472
Not Available
18
SCREW SET
7512465
$7,34 Unit Price incl. VAT
19
BUSHING UPPER STRG.
5220887
5257028
$62,99 Unit Price incl. VAT
20
BUSHING STRG. UPPER
5430966
5433416
$16,79 Unit Price incl. VAT
21
BUSHING UPPER STRG.
5431138
5433415
$16,79 Unit Price incl. VAT
22
BOLT
7515321
9999999
Not Available
23
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
24
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
25
BOLT
7512240
9999999
Not Available
26
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
27
DESC NOT_AVAILABLE (Star)
1823147
Not Available
27
POST STRG BLK. (Indy)
1823150067
Not Available
28
SPEEDOMETER
3280112
9999999
Not Available
28
CABLE SPEEDOMETER
3280113
Not Available
29
SPACER
5410592
Not Available
30
SPACER SPEEDO.MTG.
5810442
9999999
Not Available
31
PLATE MTG (SPEEDO)
5211189
9999999
Not Available
32
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
33
HAIRPIN COTTER
7660701
9999999
Not Available
34
BRKT BOLT RETAINER
5222421
9999999
Not Available
35
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
36
FROG; LH STRG.
5222402
9999999
Not Available
36
FROG; RH STRG.
5222403
9999999
Not Available
37
ROD; DRAG LINK
5333005
9999999
Not Available
38
ROD END; RH
7060152
7060167
$99,74 Unit Price incl. VAT
38
ROD END; LH
7060151
7060166
$99,74 Unit Price incl. VAT
39
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
39
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
40
ROD; TIE
5333006
5333006-067
Not Available
41
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
41
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
43
BOOT TIE ROD
5410576
Not Available
44
RETAINER BOOT
5222283
Not Available
45
BOLT
7512404
$7,34 Unit Price incl. VAT
46
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
47
BUSHING; SPACER
5333009
9999999
Not Available
48
BUSHING
5630371
9999999
Not Available
49
WASHER
7555817
9999999
Not Available
50
BOLT
7512572
9999999
Not Available
51
NUT CASTLE
7542523
9999999
Not Available
52
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
53
HOOP STEERING Substituted by 1011782-067
1011782
Not Available
54
BOLT
7512298
9999999
Not Available
56
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

Find the detailed STEERING INDY LITE AND STAR LITE (4918591859009A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for LITE - 0913033

NOSE PAN AND CONSOLE INDY LITE AND STAR LITE (4918591859005A)

NOSE PAN AND CONSOLE INDY LITE AND STAR LITE (4918591859005A)

for LITE - 0913033 from 1991

FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4918591859007A)

FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4918591859007A)

for LITE - 0913033 from 1991

STEERING INDY LITE AND STAR LITE (4918591859009A)

STEERING INDY LITE AND STAR LITE (4918591859009A)

for LITE - 0913033 from 1991

SUSPENSION INDY LITE AND STAR LITE (4918591859011A)

SUSPENSION INDY LITE AND STAR LITE (4918591859011A)

for LITE - 0913033 from 1991

DRIVE CLUTCH INDY LITE (4918591859019B)

DRIVE CLUTCH INDY LITE (4918591859019B)

for LITE - 0913033 from 1991

DRIVEN CLUTCH INDY LITE AND STAR LITE (4918591859020A)

DRIVEN CLUTCH INDY LITE AND STAR LITE (4918591859020A)

for LITE - 0913033 from 1991

CRANKCASE AND CYLINDER STAR LITE (4918591859023A)

CRANKCASE AND CYLINDER STAR LITE (4918591859023A)

for LITE - 0913033 from 1991

CRANKCASE INDY LITE (4918591859024A)

CRANKCASE INDY LITE (4918591859024A)

for LITE - 0913033 from 1991

MAGNETO INDY LITE (4918591859029A)

MAGNETO INDY LITE (4918591859029A)

for LITE - 0913033 from 1991

BLOWER HOUSING STAR LITE (4918591859030A)

BLOWER HOUSING STAR LITE (4918591859030A)

for LITE - 0913033 from 1991

RECOIL STARTER STAR LITE (4918591859031A)

RECOIL STARTER STAR LITE (4918591859031A)

for LITE - 0913033 from 1991

BLOWER HOUSING AND RECOIL STARTER INDY LITE (4918591859032A)

BLOWER HOUSING AND RECOIL STARTER INDY LITE (4918591859032A)

for LITE - 0913033 from 1991

CARBURETOR STAR LITE (4918591859037A)

CARBURETOR STAR LITE (4918591859037A)

for LITE - 0913033 from 1991

CARBURETOR INDY LITE (4918591859038A)

CARBURETOR INDY LITE (4918591859038A)

for LITE - 0913033 from 1991

NOSEPAN CONSOLE INDY LITE AND STAR LITE (4919311931005A)

NOSEPAN CONSOLE INDY LITE AND STAR LITE (4919311931005A)

for LITE - 0913033 from 1991

FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4919311931007A)

FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4919311931007A)

for LITE - 0913033 from 1991

STEERING INDY LITE AND STAR LITE (4919311931009A)

STEERING INDY LITE AND STAR LITE (4919311931009A)

for LITE - 0913033 from 1991

SUSPENSION INDY LITE AND STAR LITE (4919311931011A)

SUSPENSION INDY LITE AND STAR LITE (4919311931011A)

for LITE - 0913033 from 1991

DRIVE CLUTCH INDY LITE (4919311931019B)

DRIVE CLUTCH INDY LITE (4919311931019B)

for LITE - 0913033 from 1991

DRIVEN CLUTCH INDY LITE AND STAR LITE (4919311931020A)

DRIVEN CLUTCH INDY LITE AND STAR LITE (4919311931020A)

for LITE - 0913033 from 1991

CRANKCASE AND CYLINDER STAR LITE (4919311931023A)

CRANKCASE AND CYLINDER STAR LITE (4919311931023A)

for LITE - 0913033 from 1991

CRANKCASE INDY LITE (4919311931024A)

CRANKCASE INDY LITE (4919311931024A)

for LITE - 0913033 from 1991

MAGNETO INDY LITE (4919311931029A)

MAGNETO INDY LITE (4919311931029A)

for LITE - 0913033 from 1991

BLOWER HOUSING STAR LITE (4919311931030A)

BLOWER HOUSING STAR LITE (4919311931030A)

for LITE - 0913033 from 1991

RECOIL STARTER STAR LITE (4919311931031A)

RECOIL STARTER STAR LITE (4919311931031A)

for LITE - 0913033 from 1991

BLOWER HOUSING/RECOIL STARTER INDY LITE (4919311931032A)

BLOWER HOUSING/RECOIL STARTER INDY LITE (4919311931032A)

for LITE - 0913033 from 1991

CARBURETOR STAR LITE (4919311931037A)

CARBURETOR STAR LITE (4919311931037A)

for LITE - 0913033 from 1991

CARBURETOR INDY LITE (4919311931038A)

CARBURETOR INDY LITE (4919311931038A)

for LITE - 0913033 from 1991

CHASSIS AND SEAT INDY LITE AND STAR LITE (4918591859001A)

CHASSIS AND SEAT INDY LITE AND STAR LITE (4918591859001A)

for LITE - 0913033 from 1991

HOOD INDY LITE AND STAR LITE (4918591859003A)

HOOD INDY LITE AND STAR LITE (4918591859003A)

for LITE - 0913033 from 1991

BRAKE INDY LITE AND STAR LITE (4918591859013A)

BRAKE INDY LITE AND STAR LITE (4918591859013A)

for LITE - 0913033 from 1991

DRIVE TRAIN INDY LITE AND STAR LITE (4918591859014A)

DRIVE TRAIN INDY LITE AND STAR LITE (4918591859014A)

for LITE - 0913033 from 1991

ENGINE MOUNTING STAR LITE (4918591859015A)

ENGINE MOUNTING STAR LITE (4918591859015A)

for LITE - 0913033 from 1991

ENGINE MOUNTINIG INDY LITE (4918591859017A)

ENGINE MOUNTINIG INDY LITE (4918591859017A)

for LITE - 0913033 from 1991

DRIVE CLUTCH STAR LITE (4918591859019A)

DRIVE CLUTCH STAR LITE (4918591859019A)

for LITE - 0913033 from 1991

CYLINDER INDY LITE (4918591859025A)

CYLINDER INDY LITE (4918591859025A)

for LITE - 0913033 from 1991

PISTON AND CRANKSHAFT STAR LITE (4918591859026A)

PISTON AND CRANKSHAFT STAR LITE (4918591859026A)

for LITE - 0913033 from 1991

PISTON AND CRANKSHAFT INDY LITE (4918591859027A)

PISTON AND CRANKSHAFT INDY LITE (4918591859027A)

for LITE - 0913033 from 1991

MAGNETO STAR LITE (4918591859028A)

MAGNETO STAR LITE (4918591859028A)

for LITE - 0913033 from 1991

OIL PUMP STAR LITE (4918591859033A)

OIL PUMP STAR LITE (4918591859033A)

for LITE - 0913033 from 1991

OIL PUMP INDY LITE (4918591859034A)

OIL PUMP INDY LITE (4918591859034A)

for LITE - 0913033 from 1991

FUEL PUMP STAR LITE (4918591859035A)

FUEL PUMP STAR LITE (4918591859035A)

for LITE - 0913033 from 1991

FUEL PUMP INDY LITE (4918591859036A)

FUEL PUMP INDY LITE (4918591859036A)

for LITE - 0913033 from 1991

CHASSIS AND SEAT INDY LITE AND STAR LITE (4919311931001A)

CHASSIS AND SEAT INDY LITE AND STAR LITE (4919311931001A)

for LITE - 0913033 from 1991

HOOD INDY LITE AND STAR LITE (4919311931003A)

HOOD INDY LITE AND STAR LITE (4919311931003A)

for LITE - 0913033 from 1991

BRAKE INDY LITE AND STAR LITE (4919311931013A)

BRAKE INDY LITE AND STAR LITE (4919311931013A)

for LITE - 0913033 from 1991

DRIVE TRAIN INDY LITE AND STAR LITE (4919311931014A)

DRIVE TRAIN INDY LITE AND STAR LITE (4919311931014A)

for LITE - 0913033 from 1991

ENGINE MOUNTING STAR LITE (4919311931015A)

ENGINE MOUNTING STAR LITE (4919311931015A)

for LITE - 0913033 from 1991

ENGINE MOUNTING INDY LITE (4919311931017A)

ENGINE MOUNTING INDY LITE (4919311931017A)

for LITE - 0913033 from 1991

DRIVE CLUTCH STAR LITE (4919311931019A)

DRIVE CLUTCH STAR LITE (4919311931019A)

for LITE - 0913033 from 1991

CYLINDER INDY LITE (4919311931025A)

CYLINDER INDY LITE (4919311931025A)

for LITE - 0913033 from 1991

PISTON AND CRANKSHAFT STAR LITE (4919311931026A)

PISTON AND CRANKSHAFT STAR LITE (4919311931026A)

for LITE - 0913033 from 1991

PISTON AND CRANKSHAFT INDY LITE (4919311931027A)

PISTON AND CRANKSHAFT INDY LITE (4919311931027A)

for LITE - 0913033 from 1991

MAGNETO STAR LITE (4919311931028A)

MAGNETO STAR LITE (4919311931028A)

for LITE - 0913033 from 1991

OIL PUMP STAR LITE (4919311931033A)

OIL PUMP STAR LITE (4919311931033A)

for LITE - 0913033 from 1991

OIL PUMP INDY LITE (4919311931034A)

OIL PUMP INDY LITE (4919311931034A)

for LITE - 0913033 from 1991

FUEL PUMP STAR LITE (4919311931035A)

FUEL PUMP STAR LITE (4919311931035A)

for LITE - 0913033 from 1991

FUEL PUMP INDY LITE (4919311931036A)

FUEL PUMP INDY LITE (4919311931036A)

for LITE - 0913033 from 1991

POLARIS LITE - 0913033 1991

LITE - 0913033

LITE - 0913033

Model : OTHERS

Engine capacity : autre

Year : 1991

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
