Parts Catalog

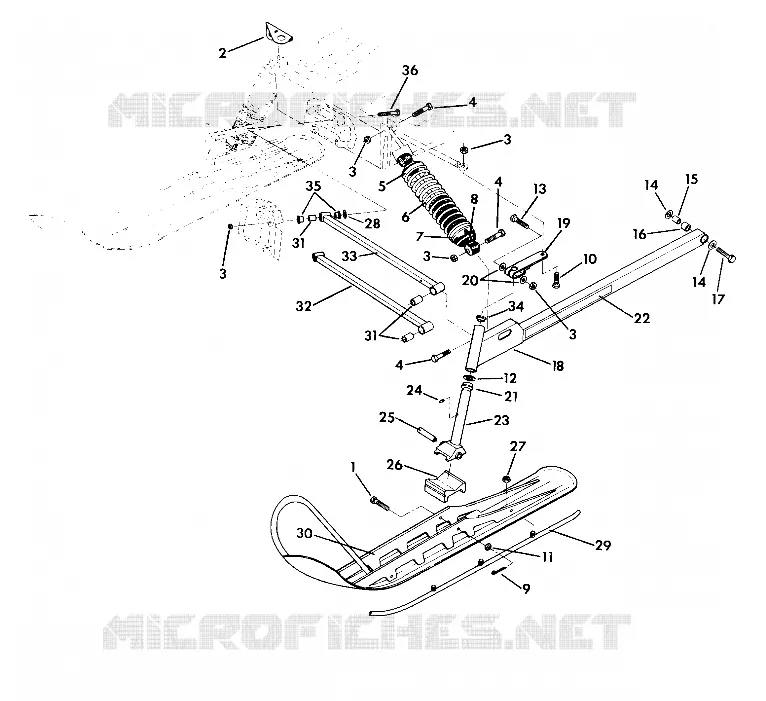

FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4918591859007A)
5
Parts Diagram
Parts Catalog
NOSE PAN AND CONSOLE INDY LITE AND STAR LITE (4918591859005A)
by
STEERING INDY LITE AND STAR LITE (4918591859009A)
FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4918591859007A)
1
2
3
3
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
18
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
1
2
3
3
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
18
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
1
2
3
3
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
18
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
1
2
3
3
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
18
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
1
SCREW
7515462
9999999
Not Available
2
BRKT MUFF.SUPPORT Substituted by 5222468-067
5222468
Not Available
3
NUT LOCK
7542403
9999999
Not Available
4
SCREW
7515415
9999999
Not Available
5
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
6
SUBSTITUTED BY 7041261-067
7041242
$246,74 Unit Price incl. VAT
7
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSP.
7041144
9999999
Not Available
9
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
10
BOLT
7512404
$7,34 Unit Price incl. VAT
11
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
12
BUSHING
7556509
$3,14 Unit Price incl. VAT
13
SCREW
7515433
$3,14 Unit Price incl. VAT
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
BOLT
7512557
9999999
Not Available
18
ARM RH TRLG.
1823137
9999999
Not Available
18
ARM; LH TRLG.
1823136
9999999
Not Available
19
ARM STEERING Substituted by 5220326-067
5220326
Not Available
20
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
21
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
22
DECAL RH IFS RED [No Longer Available]
7072951
Not Available
22
DECAL LH IFS RED [No Longer Available]
7072950
Not Available
23
SPINDLE GREASABLE Substituted by 5130919-067
6230055
Not Available
24
FITTING-LUBE.
7080220
9999999
Not Available
25
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
26
STOP RUBBER
5521231
9999999
Not Available
27
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
28
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
29
SKI SKAG WELD
1820267
$40,94 Unit Price incl. VAT
30
SKI
1820299
Not Available
31
BUSHING
5010252
9999999
Not Available
32
ROD RADIUS LOWER Substituted by 1822083-067
1822083
Not Available
33
ROD RADIUS UPPER Substituted by 1822082-067
1822082
Not Available
34
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
35
BUSHING FLANGE
5431132
9999999
Not Available
36
SCREW
7515509
9999999
Not Available

Find the detailed FRONT SUSPENSION AND SKI INDY LITE AND STAR LITE (4918591859007A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
