CRANKSHAFT AND PISTON 500 XLT (4921662166035A) for POLARIS XLT SP

CYLINDER 500 XLT (4921662166034A)

MAGNETO 500 XLT (4921662166040A)

CRANKSHAFT ASM.

3084440

9999999

Not Available

CRANKSHAFT 1

3084441

9999999

Not Available

CRANKSHAFT MAG SIDE (Mag Side)

3084443

Not Available

CRANKSHAFT CENTER

3084442

9999999

Not Available

CRANKSHAFT PTO SIDE

3084444

9999999

Not Available

CRANKSHAFT 3

3084445

Not Available

ROD CONNECTING Substituted by 3085422

3084446

Not Available

BEARING-LARGE END

3083255

9999999

Not Available

PIN CRANK #1

3084447

9999999

Not Available

PIN CRANK #2

3084448

9999999

Not Available

CRANKPIN SPACER

3083277

9999999

Not Available

BEARING BALL

3083480

3515063

$60,89 Unit Price incl. VAT

BALL BEARING C-4

3083708

9999999

Not Available

SPACER CRANKSHAFT

3080447

9999999

Not Available

SET PISTON .020/.50MM O/S

3084451

9999999

Not Available

PISTON (.010 O/S) (0.10 O/S)

3084450

Not Available

SET PISTON STANDARD

3084449

9999999

Not Available

STANDARD PISTON RING

3084452

9999999

Not Available

RING PISTON(.010 O/S) (0.10 O/S)

3084453

Not Available

RING PISTON(.020 O/S) (2)

3084454

9999999

Not Available

SMALL END BEARING

3080998

9999999

Not Available

PIN; PISTON

3084455

9999999

Not Available

PISTON PIN CLIP

3084456

9999999

Not Available

NUT

3083093

7547895

$7,34 Unit Price incl. VAT

WASHER

3084457

9999999

Not Available

KEY WOODRUFF

3081543

$26,24 Unit Price incl. VAT

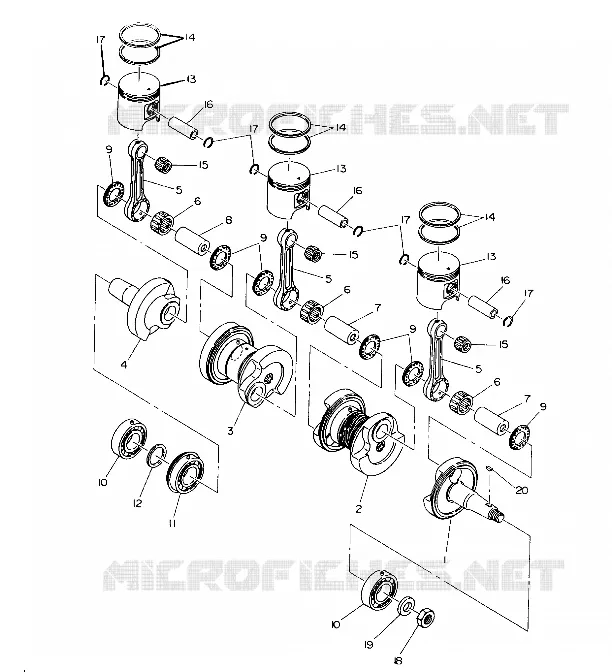

Find the detailed CRANKSHAFT AND PISTON 500 XLT (4921662166035A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
