1
Engine displacement
autre
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog
DRIVE CLUTCH 500 XLT (4921662166027A)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM 500 XLT (4921662166026A)
by
DRIVEN CLUTCH 500 XLT (4921662166028A)
DRIVE CLUTCH 500 XLT (4921662166027A)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
1
CLUTCH DRIVE
1321556
9999999
Not Available
2
BOLT
7512265
9999999
Not Available
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
5
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
6
SPRING CLUTCH; GOLD
7041148
$115,49 Unit Price incl. VAT
7
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
8
DRIVE CLUTCH KIT
2200387
$47,24 Unit Price incl. VAT
9
GUIDE BUTTON
5430445
$11,54 Unit Price incl. VAT
10
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
11
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
12
JAM NUT
5020425
$41,99 Unit Price incl. VAT
13
SPACER .020
5210752
$3,14 Unit Price incl. VAT
13
SPACER .050
5210754
$6,29 Unit Price incl. VAT
13
SPACER .032
5210753
$4,19 Unit Price incl. VAT
14
BUSHING WEIGHT ASSEMBLY(3)
1321528
$73,49 Unit Price incl. VAT
15
HARDENED WEIGHT PIN
7515105
$26,24 Unit Price incl. VAT
16
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
17
BEARING SLEEVE
3576502
$40,94 Unit Price incl. VAT
18
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT

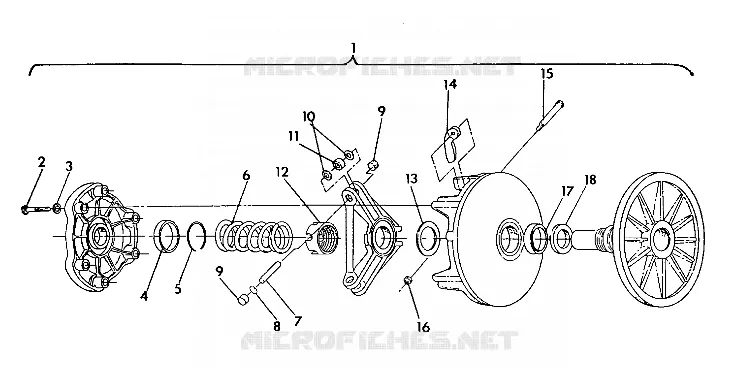

Find the detailed DRIVE CLUTCH 500 XLT (4921662166027A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
