Parts Catalog
CHAINCASE ASSEMBLY 500 XLT (4921662166021A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE 500 XLT (4921662166019A)
by
SUSPENSION 500 XLT (4921662166023A)
CHAINCASE ASSEMBLY 500 XLT (4921662166021A)
1
2
3
4
5
6
7
8
9
9
10
11
11
12
13
13
14
15
16
17
18
18
19
19
20
21
15
23
24
25
26
27
28
29
30
31
32
1
BOLT
7515301
9999999
Not Available
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
9999999
Not Available
5
CLUTCH DRIVEN Substituted by 1322154
1322107
Not Available
6
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE
5222751
9999999
Not Available
10
KIT HI-PERF BEARING (Incl. 9 11)
2200422
Not Available
11
FLANGETTE W/GREASE HOLE
5222752
9999999
Not Available
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
KEY-SQUARE
7721204
9999999
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC ASM BRAKE
1910086
9999999
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
BOLT CARRIAGE
7515428
9999999
Not Available
21
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
24
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
25
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
26
BEARING; (RUBBER SEAL)
3514515
9999999
Not Available
27
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
28
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
29
DRIVESHAFT ASM. Substituted by 1590245
1590229
Not Available
30
SPROCKET 9T
5430571
9999999
Not Available
31
SPROCKET HALF9T
5430993
9999999
Not Available
32
DRIVE SHAFT
6230067
9999999
Not Available

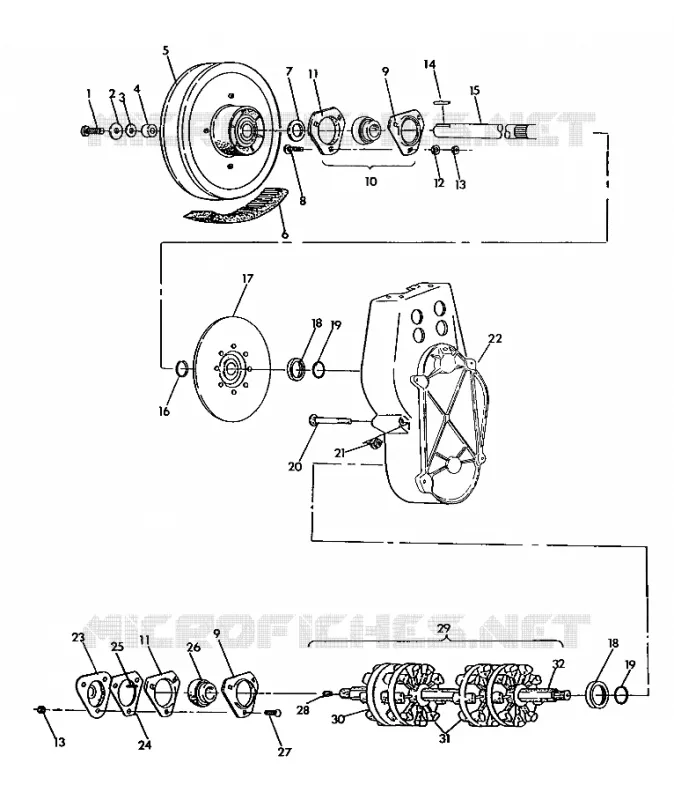

Find the detailed CHAINCASE ASSEMBLY 500 XLT (4921662166021A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
