Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
OIL PUMP
5
Parts Diagram
Parts Catalog
CRANKCASE
by
MAGNETO
OIL PUMP
1
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
1
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
1
PIPE#2 VINYL(L=315)
3083488
9999999
Not Available
2
HOSE CLAMP
3083141
$2,09 Unit Price incl. VAT
3
SCREW-AIR VENT
3083125
9999999
Not Available
4
PACKING(10)
3083126
9999999
Not Available
5
OIL PUMP
3084013
9999999
Not Available
6
SPRING-RETURN
3083123
9999999
Not Available
7
COLLAR CAMSHAFT(10)
3083445
9999999
Not Available
8
LEVER CONTROL
3084014
9999999
Not Available
9
WASHER-SPRING(10)
3083121
1205792
$614,24 Unit Price incl. VAT
10
NUT(10)
3083120
9999999
Not Available
11
ASM. SCREW & WASHER (10)
3083783
9999999
Not Available
12
GEAR SMALL
3083131
5141635
$141,74 Unit Price incl. VAT
13
SPACER
3083130
9999999
Not Available
14
BUSHING
3083353
9999999
Not Available
15
SPACER 3.6MM
3083673
5141621
$8,39 Unit Price incl. VAT
15
SPACER 2.3 MM
3083672
5141620
$6,29 Unit Price incl. VAT
15
SPACER 1.15MM
3083671
5141619
$6,29 Unit Price incl. VAT
16
O-RING
3083127
9999999
Not Available

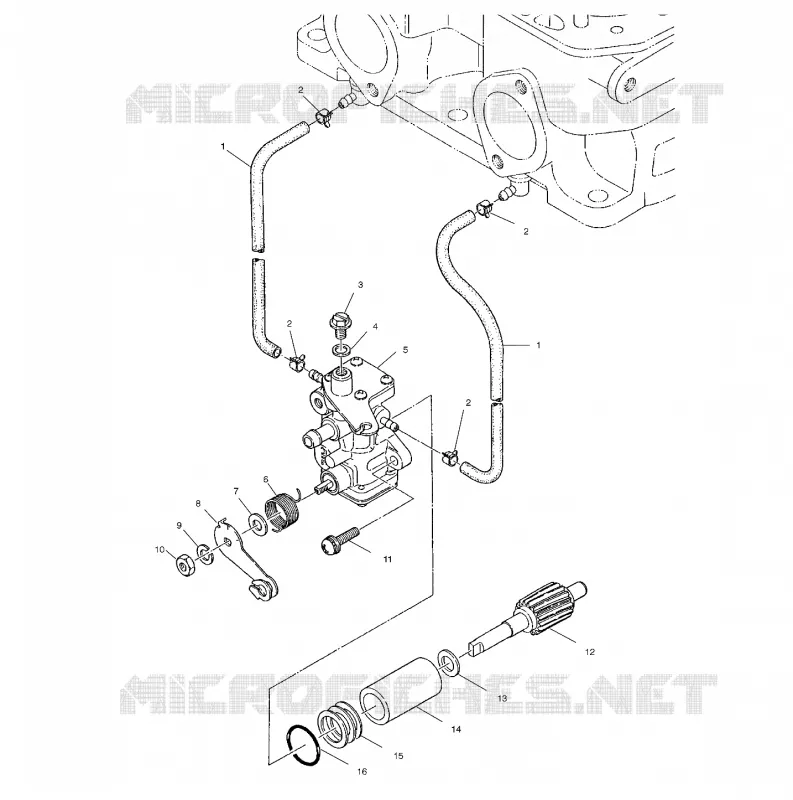

Find the detailed OIL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
