Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
CONSOLE
5
Parts Diagram
Parts Catalog
NOSEPAN
by
RACK TUNNEL EXTENSION
CONSOLE
1
2
3
4
5
6
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
1
2
3
4
5
6
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
1
SCREW
7512031
9999999
Not Available
2
SPACERREGULATOR
5211573
9999999
Not Available
3
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
4
RECTIFIER LR-4
4060104
9999999
Not Available
5
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
7
TERMINAL; RING
4020092
9999999
Not Available
8
HOUSING
4020057
9999999
Not Available
9
HARNESS-MAINWIRE W/T EURO
2460910
9999999
Not Available
9
FOIL 4X5 3M#1430PSA5.5MIL
5811765
9999999
Not Available
10
SCREW
7515199
$2,09 Unit Price incl. VAT
11
KIT IGN.SWITCH
2200358
2205055
$141,74 Unit Price incl. VAT
12
CHOKE CABLE
7080290
$194,24 Unit Price incl. VAT
13
LEVER CHOKE
5432943
2201439
$47,24 Unit Price incl. VAT
14
CABLE TIE-RELEASABLE;5 1/2
7080804
$6,29 Unit Price incl. VAT
15
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
16
POP RIVET
7621330
$2,09 Unit Price incl. VAT
17
RECOIL GUIDE
5243049
$18,89 Unit Price incl. VAT
18
WASHER
7555817
9999999
Not Available
19
SWITCH-TETHER HYBRID
4010187
9999999
Not Available
20
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
21
BOOT-HANDLEBAR
5433243
9999999
Not Available
21
BOOT-HANDLEBAR EURO W/T
5434227
9999999
Not Available
22
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
23
NUT CHOKE
5432944
$15,74 Unit Price incl. VAT
24
CAP W/KEY
5410611
9990000
Not Available
25
NUT IGNITION
7547035
$15,74 Unit Price incl. VAT
26
SWITCH HEATER HI/LO
4110263
9999999
Not Available
27
CONSOLE-HYB W/T EURO
5433992
9999999
Not Available
27
CONSOLE HYB.BLK.
5432994
9999999
Not Available

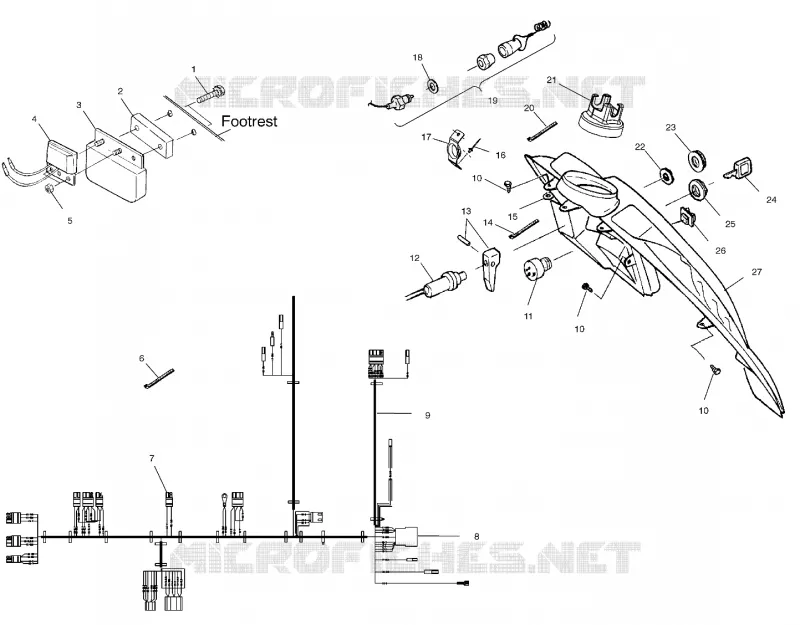

Find the detailed CONSOLE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
