Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN ACE 570 EURO
4
Parts Catalog
STARTER DRIVE
5
Parts Diagram
Parts Catalog
OIL PUMP
by
ENGINE, VALVE COVER
STARTER DRIVE
1
2
3
4
5
6
7
8
1
STARTER HUB SPRAG CLUTCH ASSEMBLY
1204884
$277,19 Unit Price incl. VAT
2
STARTER GEAR ASSEMBLY
1204683
$330,74 Unit Price incl. VAT
3
PIN-SOLID STARTER TQ LIMITGEAR
3022500
3023967
$52,49 Unit Price incl. VAT
4
1 CYLINDER STARTER
4013015
4014909
$414,53 Unit Price incl. VAT
5
ONE WAY CLUTCH FREEWHEEL GEAR
6230561
$351,74 Unit Price incl. VAT
6
BOLT ALLEN M6 X 1.0 X 14
7517431
$10,49 Unit Price incl. VAT
7
STUD-DOUBLE END M6X1.0X25/10
7519237
$7,34 Unit Price incl. VAT
8
SCR-M6X1X75 HX/FL
7518755
$13,64 Unit Price incl. VAT

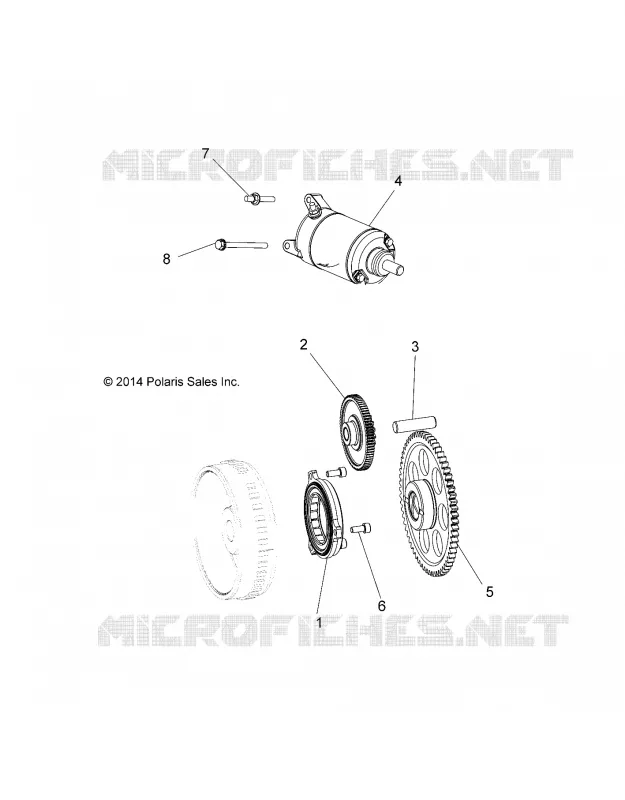

Find the detailed STARTER DRIVE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
