1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN ACE 570 EURO
4
Parts Catalog

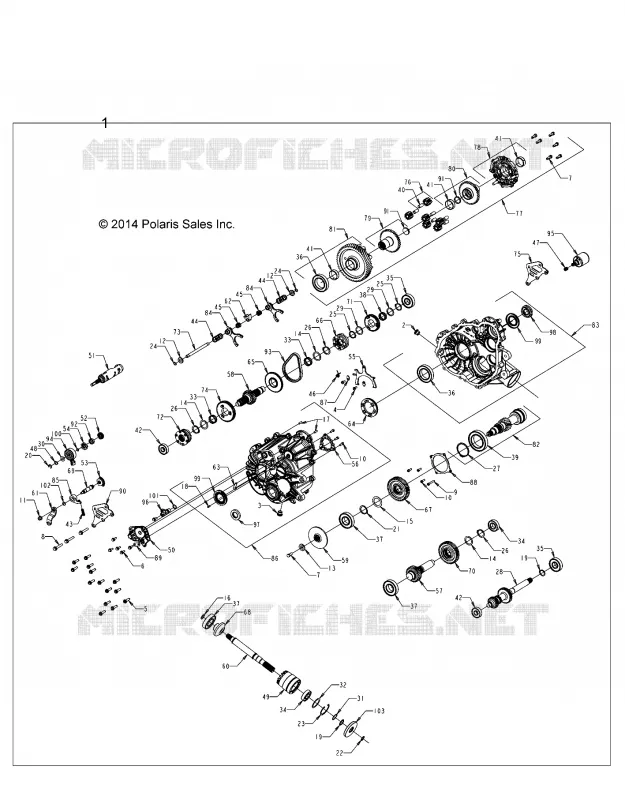

DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS
by
DRIVE TRAIN, REAR HALF SHAFT
DRIVE TRAIN, MAIN GEARCASE
1
2
3
4
5
6
7
7
8
9
10
10
11
12
12
13
14
14
14
15
16
17
18
19
19
20
21
22
23
24
24
25
25
26
26
26
27
28
29
29
30
31
32
33
33
34
34
35
35
36
36
37
37
37
38
39
40
41
41
41
42
42
43
44
44
45
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
84
85
86
87
88
89
90
91
91
92
93
94
102
96
97
98
99
99
100
101
102
103
1
1
2
3
3
4
5
6
6
6
6
7
7
7
7
8
9
10
11
11
11
11
11
12
13
1
ASM-GEARCASE COMPLETE INTL
1333144
9999999
Not Available
2
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
3
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
4
SCREW; TORX PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
6
SCREW
3235206
$13,64 Unit Price incl. VAT
7
SCREW-CAP HH;M8 X 1.25 X 20
3235096
3236169
$17,84 Unit Price incl. VAT
8
SCREW
3235207
$19,94 Unit Price incl. VAT
9
SCREW 6 MM X 1.0 MM 40 MM
3235208
$20,99 Unit Price incl. VAT
10
SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM
3235332
$7,34 Unit Price incl. VAT
11
HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM
3235210
$14,69 Unit Price incl. VAT
12
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
13
WASHER-FENDER 5/16-1.25
3234952
$13,64 Unit Price incl. VAT
14
WASHER
3235211
$19,94 Unit Price incl. VAT
15
WASHER
3235212
$25,19 Unit Price incl. VAT
16
WASHER
3235213
$31,49 Unit Price incl. VAT
17
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
18
SPRING-SLOTTED PIN;6MM
7043746
$15,74 Unit Price incl. VAT
19
SNAP RING
3233106
$10,49 Unit Price incl. VAT
20
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
21
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
22
EXTERNAL RETAINING RING
3234318
$5,76 Unit Price incl. VAT
23
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
24
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
25
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
26
RETAINING RING
3235214
$17,84 Unit Price incl. VAT
27
RETAINING RING
3235216
$19,94 Unit Price incl. VAT
28
SHAFT BOSS LW INPUT AVALANCHE
3235560
9999999
Not Available
29
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
30
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
31
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
32
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
33
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
34
BEARING
3233019
$54,59 Unit Price incl. VAT
35
BEARING
3233020
$80,84 Unit Price incl. VAT
36
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
37
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
38
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
39
BALL BEARING
3235218
$101,84 Unit Price incl. VAT
40
PLAIN BEARING; 10 X 12 X 25
3234239
$27,29 Unit Price incl. VAT
41
PLAIN BEARING; 40 X 44 X 15
3234241
$27,29 Unit Price incl. VAT
42
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
43
COMPRESSION SPRING
3233830
$19,94 Unit Price incl. VAT
44
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
45
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
46
TORSION RETURN SPRING
3234276
$16,79 Unit Price incl. VAT
47
SPRING COMPRSSN.54ODX.44IDX.05
3234277
$26,24 Unit Price incl. VAT
48
SPRING WASHER
3235327
$17,84 Unit Price incl. VAT
49
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
50
GEARCASE COVER
3234188
$209,99 Unit Price incl. VAT
51
SHIFT DRUM
3235463
$519,74 Unit Price incl. VAT
52
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
53
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
54
DETENT STAR
3235453
9999999
Not Available
55
FORK SHIFT
3235455
$173,24 Unit Price incl. VAT
56
PARK PLATE
3235456
$73,49 Unit Price incl. VAT
57
IDLER SHAFT; 29 TOOTH
3235223
$204,74 Unit Price incl. VAT
58
27T REVERSE SHAFT
3235380
$456,74 Unit Price incl. VAT
59
DISC BRAKE
3235372
$120,74 Unit Price incl. VAT
60
FRONT OUTPUT SHAFT
3235394
$246,74 Unit Price incl. VAT
61
BELLCRANK
3235532
9999999
Not Available
62
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
63
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
64
ENGAGEMENT DOG
3234928
$136,49 Unit Price incl. VAT
65
SPROCKET; 48 TOOTH; 6 FACE
3235231
$152,24 Unit Price incl. VAT
66
6 FACE ENGAGEMENT DOG
3235233
$241,49 Unit Price incl. VAT
67
STAGE 3 GEAR; 46 TOOTH
3235236
$204,74 Unit Price incl. VAT
68
OUTPUT GEAR; FRONT; 13 TOOTH
3235237
$246,74 Unit Price incl. VAT
69
SHIFT SHAFT
3235238
$68,24 Unit Price incl. VAT
70
STAGE 3 GEAR; 46 TOOTH
3235381
$246,74 Unit Price incl. VAT
71
GEAR; 49 TOOTH
3235396
$246,74 Unit Price incl. VAT
72
PARK/LOW SHIFT DOG
3235457
$272,99 Unit Price incl. VAT
73
SHIFT RAIL; SHAFT
3235542
$52,49 Unit Price incl. VAT
74
GEAR; 61T
3235561
$157,49 Unit Price incl. VAT
75
WELD-BKT MNT RR(422042/422100)
3235527
9999999
Not Available
76
GEAR SUBASSEMBLY
3234469
$136,49 Unit Price incl. VAT
77
LOCKING DIFFERENTIAL
3235373
$771,74 Unit Price incl. VAT
78
COVER SUBASSEMBLY
3235376
$262,49 Unit Price incl. VAT
79
GEAR SUBASSEMBLY; 39 TOOTH; SIDE
3235374
$351,74 Unit Price incl. VAT
80
GEAR SUBASSEMBLY; 39 TOOTH; SIDE
3235375
$351,74 Unit Price incl. VAT
81
GEAR SUBASSEMBLY; 53 TOOTH
3235378
9999999
Not Available
82
PINION SUBASSEMBLY
3235371
$782,24 Unit Price incl. VAT
83
LEFT HAND CASE SUBASSEMBLY
3235422
$1 244,24 Unit Price incl. VAT
84
SHIFT FORK SUBASSEMBLY
3235454
$167,99 Unit Price incl. VAT
85
ROLLER PAWL
3235452
$68,24 Unit Price incl. VAT
86
CASE SUBASSEMBLY; RIGHT
3235446
9999999
Not Available
87
FORK RETAINER
3234934
$19,94 Unit Price incl. VAT
88
CENTER DRIVE BEARING COVER
3235241
$89,24 Unit Price incl. VAT
89
BRKT-MOUNT(430592)
3235350
$16,79 Unit Price incl. VAT
90
BRKT-MNT REAR (422042/422100)
3235528
9999999
Not Available
91
EXPANSION PLUG; 1 1/4
3234249
$25,19 Unit Price incl. VAT
92
SPACER
3235243
$17,84 Unit Price incl. VAT
93
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
94
GEAR POSITION SWITCH PIN
7661999
$220,49 Unit Price incl. VAT
95
SOLENOID
3235475
3235478
$545,99 Unit Price incl. VAT
96
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
97
VITON TRIPLE LIP SEAL
3234892
$68,24 Unit Price incl. VAT
98
SEAL
3234851
$68,24 Unit Price incl. VAT
99
VITON TRIPLE LIP SEAL; 40 X 70 X 7
3235052
$57,74 Unit Price incl. VAT
100
O-RING
3233076
$11,54 Unit Price incl. VAT
101
O-RING
3234302
$13,64 Unit Price incl. VAT
102
SOLENOID
3235475
3235478
$545,99 Unit Price incl. VAT
103
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN ACE 570 EURO

DECALS

DECALS

for SPORTSMAN ACE 570 EURO from 2015

FLOOR ROCKER PANELS

FLOOR ROCKER PANELS

for SPORTSMAN ACE 570 EURO from 2015

FUEL TANK

FUEL TANK

for SPORTSMAN ACE 570 EURO from 2015

HOOD FRONT BODY WORK

HOOD FRONT BODY WORK

for SPORTSMAN ACE 570 EURO from 2015

SPLASH SHIELDS

SPLASH SHIELDS

for SPORTSMAN ACE 570 EURO from 2015

BRAKE LINES AND MASTER CYLINDER

BRAKE LINES AND MASTER CYLINDER

for SPORTSMAN ACE 570 EURO from 2015

BARKE CALIPER MOUNTING

BARKE CALIPER MOUNTING

for SPORTSMAN ACE 570 EURO from 2015

BARKE FRONT BRAKE CALIPER

BARKE FRONT BRAKE CALIPER

for SPORTSMAN ACE 570 EURO from 2015

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN ACE 570 EURO from 2015

BATTERY

BATTERY

for SPORTSMAN ACE 570 EURO from 2015

IGNITION

IGNITION

for SPORTSMAN ACE 570 EURO from 2015

SENSORS

SENSORS

for SPORTSMAN ACE 570 EURO from 2015

WIRE HARNESS

WIRE HARNESS

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for SPORTSMAN ACE 570 EURO from 2015

CYLINDER

CYLINDER

for SPORTSMAN ACE 570 EURO from 2015

CYLINDER HEAD, CAMS AND VALVES

CYLINDER HEAD, CAMS AND VALVES

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, ENGINE AND TRANSMISSION MOUNTING

ENGINE, ENGINE AND TRANSMISSION MOUNTING

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for SPORTSMAN ACE 570 EURO from 2015

THERMOSTAT and COVER

THERMOSTAT and COVER

for SPORTSMAN ACE 570 EURO from 2015

THROTTLE BODY AND FUEL RAIL

THROTTLE BODY AND FUEL RAIL

for SPORTSMAN ACE 570 EURO from 2015

THROTTLE PEDAL

THROTTLE PEDAL

for SPORTSMAN ACE 570 EURO from 2015

SUSPENSION, A-ARM AND STRUT MOUNTING

SUSPENSION, A-ARM AND STRUT MOUNTING

for SPORTSMAN ACE 570 EURO from 2015

FRONT SUSPENSION STRUT

FRONT SUSPENSION STRUT

for SPORTSMAN ACE 570 EURO from 2015

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for SPORTSMAN ACE 570 EURO from 2015

STEERING

STEERING

for SPORTSMAN ACE 570 EURO from 2015

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for SPORTSMAN ACE 570 EURO from 2015

WHEELS, REAR

WHEELS, REAR

for SPORTSMAN ACE 570 EURO from 2015

FRONT BUMPER

FRONT BUMPER

for SPORTSMAN ACE 570 EURO from 2015

REAR BUMPER

REAR BUMPER

for SPORTSMAN ACE 570 EURO from 2015

REAR RACK AND FENDERS

REAR RACK AND FENDERS

for SPORTSMAN ACE 570 EURO from 2015

SEAT ASM.

SEAT ASM.

for SPORTSMAN ACE 570 EURO from 2015

SEAT MOUNTING AND BELT

SEAT MOUNTING AND BELT

for SPORTSMAN ACE 570 EURO from 2015

SIDE NETS

SIDE NETS

for SPORTSMAN ACE 570 EURO from 2015

BARKE REAR CALIPER

BARKE REAR CALIPER

for SPORTSMAN ACE 570 EURO from 2015

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

for SPORTSMAN ACE 570 EURO from 2015

PARKING BRAKE BRAKE LEVER ASM.

PARKING BRAKE BRAKE LEVER ASM.

for SPORTSMAN ACE 570 EURO from 2015

CHASSIS, CAB FRAME AND SIDE BARS

CHASSIS, CAB FRAME AND SIDE BARS

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN ACE 570 EURO from 2015

HEADLIGHTS

HEADLIGHTS

for SPORTSMAN ACE 570 EURO from 2015

TAIL LAMPS

TAIL LAMPS

for SPORTSMAN ACE 570 EURO from 2015

TURN SIGNALS, HORN AND MIRRORS

TURN SIGNALS, HORN AND MIRRORS

for SPORTSMAN ACE 570 EURO from 2015

ELECTRICAL, DASH INSTRUMENTS AND SWITCHES

ELECTRICAL, DASH INSTRUMENTS AND SWITCHES

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, BREATHER

ENGINE, BREATHER

for SPORTSMAN ACE 570 EURO from 2015

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for SPORTSMAN ACE 570 EURO from 2015

COOLING SYSTEM

COOLING SYSTEM

for SPORTSMAN ACE 570 EURO from 2015

CRANKCASE

CRANKCASE

for SPORTSMAN ACE 570 EURO from 2015

EXHAUST SYSTEM

EXHAUST SYSTEM

for SPORTSMAN ACE 570 EURO from 2015

LONG BLOCK

LONG BLOCK

for SPORTSMAN ACE 570 EURO from 2015

OIL FILTER AND DIPSTICK

OIL FILTER AND DIPSTICK

for SPORTSMAN ACE 570 EURO from 2015

OIL PUMP

OIL PUMP

for SPORTSMAN ACE 570 EURO from 2015

STARTER DRIVE

STARTER DRIVE

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for SPORTSMAN ACE 570 EURO from 2015

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for SPORTSMAN ACE 570 EURO from 2015

REFERENCES, TOOL KIT AND OWNERS MANUAL

REFERENCES, TOOL KIT AND OWNERS MANUAL

for SPORTSMAN ACE 570 EURO from 2015

STEERING

STEERING

for SPORTSMAN ACE 570 EURO from 2015

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

for SPORTSMAN ACE 570 EURO from 2015

REAR STRUT STABILIZER

REAR STRUT STABILIZER

for SPORTSMAN ACE 570 EURO from 2015

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for SPORTSMAN ACE 570 EURO from 2015

WHEELS, REAR

WHEELS, REAR

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN ACE 570 EURO from 2015

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN ACE 570 EURO from 2015

POLARIS SPORTSMAN ACE 570 EURO 2015

SPORTSMAN ACE 570 EURO

SPORTSMAN ACE 570 EURO

Model : ACE 570 EU

Engine capacity : 570

Year : 2015

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
