WHEELS, FRONT AND HUB for POLARIS SPORTSMAN XP 550 INTL - A09ZN55FX from 2009

WHEELS, FRONT AND HUB

1

KNUCKLE-STEERING MACH LH

5136733

5143613

$272,99 Unit Price incl. VAT

1

ASM-STEERING KNUCKLE LH

1822945

9990000

Not Available

1

ASM-STEERING KNUCKLE RH

1822946

9990000

Not Available

1

KNUCKLE-STEERING MACH RH

5136734

5143614

$272,99 Unit Price incl. VAT

2

TAPERED WHEEL NUT; 10 MM X 1.25 MM

7547361

$4,19 Unit Price incl. VAT

3

HUB COVER

5438120

$89,24 Unit Price incl. VAT

4

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

5

RIM-FRONT 14X6 CAST LTWT

1521266

9999999

Not Available

6

CASTLE NUT; 18 MM X 1.5 MM X 13 MM

7547406

$9,44 Unit Price incl. VAT

7

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

8

COTTER PIN

7661402

$3,14 Unit Price incl. VAT

9

WHEEL STUD; M10 X 1.25 X 58

7518671

$3,14 Unit Price incl. VAT

10

WHEEL HUB

5135499

5136946

$178,49 Unit Price incl. VAT

11

BRAKE DISC

5250205

$141,74 Unit Price incl. VAT

12

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

13

BEARING-BALL SEALED 44X72X33.1

3514627

3514699

$73,49 Unit Price incl. VAT

14

TIRE-FRONT 26X8-14 ECON E-MARK

5413685

9999999

Not Available

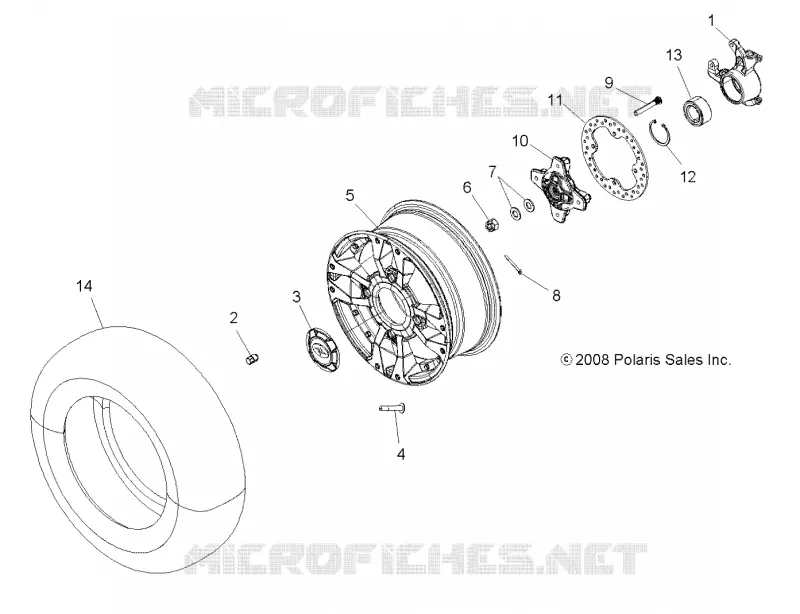

Find the detailed WHEELS, FRONT AND HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
