Engine displacement
550
2
Year
2009
3
Trim
SPORTSMAN XP 550 INTL - A09ZN55FX
4
Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/01/08 AND BEFORE)
5
Parts Diagram
Parts Catalog
SWITCHES, SENSORS, ECU AND CONTROL MODULES
by
DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/02/08 AND AFTER)
DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/01/08 AND BEFORE)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
1
2
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
1
ASM-GEARCASE REAR
1332492
2204462
$2 383,49 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEXFLANGEHEAD M8X1.25X30
3234329
3234898
$17,84 Unit Price incl. VAT
4
NUT-HEX M16 X 2.0
3234776
$19,94 Unit Price incl. VAT
5
LOCKING WASHER; 17 X 30
3234777
$78,74 Unit Price incl. VAT
6
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
7
RING-RETAINING BEVELED INTERNA
3234158
$41,99 Unit Price incl. VAT
8
SHIM
3233554
$62,99 Unit Price incl. VAT
9
BUSHING
3233577
$36,74 Unit Price incl. VAT
10
BALL BEARING
3233714
9999999
Not Available
11
BALL BEARING; 50 X 80 X 10
3234275
$47,24 Unit Price incl. VAT
12
CASE-MAIN MACHINED
3234779
2204462
$2 383,49 Unit Price incl. VAT
13
SUBASSEMBLY COVER
3234682
2204462
$2 383,49 Unit Price incl. VAT
14
SHAFT-PINION 10T STRAIGHTBEVEL
3234780
9999999
Not Available
15
GEAR-37T STRAIGHT BEVEL
3234781
2204462
$2 383,49 Unit Price incl. VAT
16
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
17
COUPLER
3234782
$188,99 Unit Price incl. VAT
18
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
19
SEAL-TRIPLE LIP;40 X 70 X 7
3234783
3234300
$57,74 Unit Price incl. VAT
20
SEAL-TRIPLE LIP;40 X 80 X 10
3234784
3235051
$57,74 Unit Price incl. VAT
21
O-RING 2-023 NITRIL
3234785
$17,84 Unit Price incl. VAT

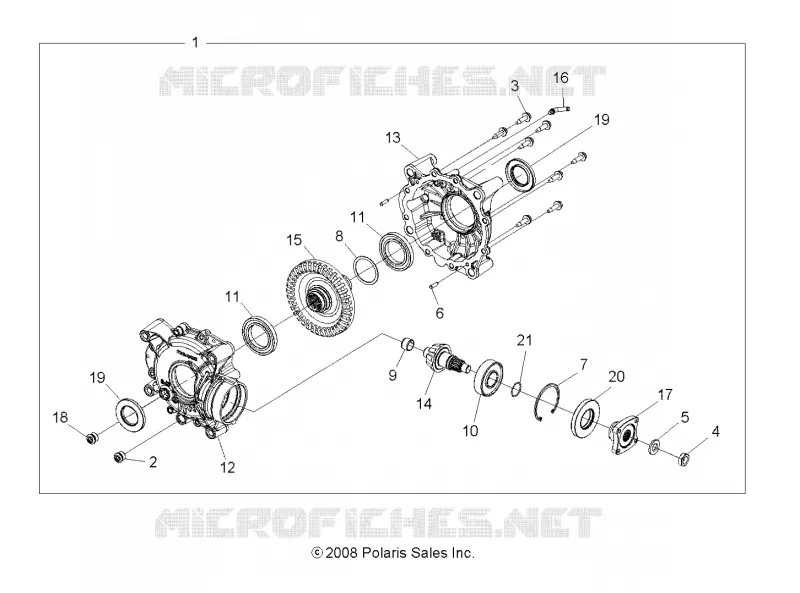

Find the detailed DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 12/01/08 AND BEFORE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
