1
Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP 900 PS INTL - R13XT9EFX
4
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER AND HEAD
ENGINE, CRANKSHAFT AND PISTON
1
PISTON KIT
2204637
$256,19 Unit Price incl. VAT
2
PISTON RINGS KIT 93 MM 875
2204509
$108,14 Unit Price incl. VAT
3
PISTON PIN; 20 X 11.3 X 54
3022190
$73,49 Unit Price incl. VAT
3
PISTON CIRCLIP
3022328
$4,19 Unit Price incl. VAT
4
FORGED CONNECTING ROD ASSEMBLY
1204403
9999999
Not Available
5
CON ROD BEARING; 41 MM; GREEN
3514663003
Not Available
5
CONNECTING ROD BEARING; 41MM; WHITE
3514663001
Not Available
5
BEARING-CON ROD; G-90; 41MM; YELLOW
3514663004
Not Available
5
CONNECTING ROD BEARING; 41 MM; BLUE
3514663002
Not Available
6
CRANKSHAFT ASSEMBLY
1204599
9999999
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
MAIN GEARCASE; 41 MM; GREEN
3514662003
Not Available
8
MAIN BEARING; 41 MM; BLUE
3514662002
Not Available
8
MAIN BEARING; 41 MM; WHITE
3514662001
Not Available
8
MAIN BEARING; RED
3514662005
Not Available
8
MAIN BEARING; 41 MM; YELLOW
3514662004
Not Available

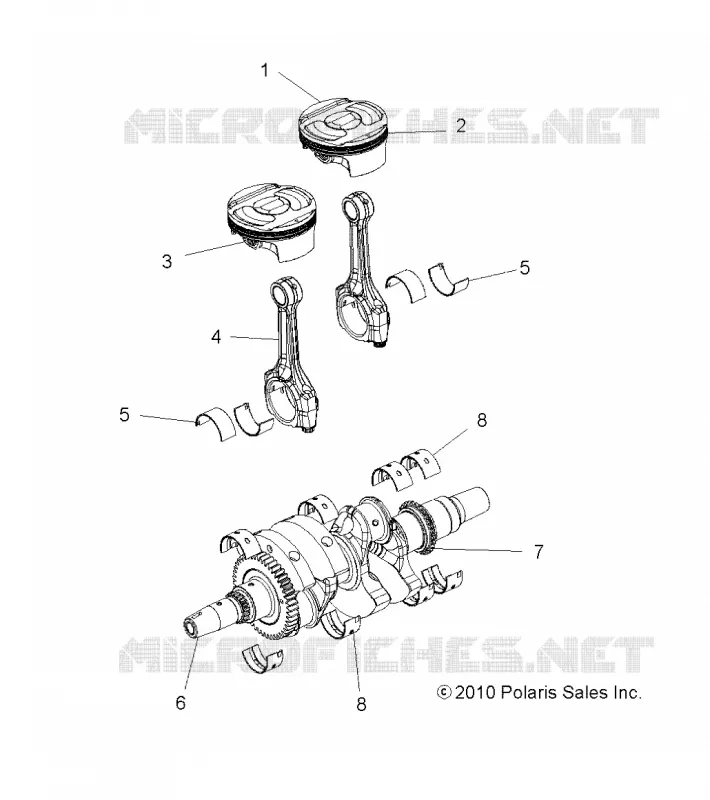

Find the detailed ENGINE, CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
