1
Engine displacement
autre
2
Year
1994
3
Trim
WIDE TRAK LX - 0942064
4
Parts Catalog
ENGINE MOUNTING WIDETRAK LX 0942064 (49250425040025)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH WIDETRAK LX 0942064 (49250425040024)
by
EXHAUST SYSTEM WIDETRAK LX 0942064 (49250425040026)
ENGINE MOUNTING WIDETRAK LX 0942064 (49250425040025)
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
PRESSURE CAP
2511155
9999999
Not Available
7
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC50PL-05 [No Longer Available]
3084621
Not Available
8
DESC NOT_AVAILABLE
1211485
Not Available
9
HANDLE-RECOIL
5430520
Not Available
10
SCREW
7512533
9999999
Not Available
11
WASHER
7555740
$3,14 Unit Price incl. VAT
12
MOUNT ENGINE
5410390
9999999
Not Available
13
SPACER (MTR.MT.)
5332778
9999999
Not Available
14
MOUNT MOTOR [No Longer Available]
1011761067
Not Available
15
NUT FLEXLOCK
7542503
9999999
Not Available
16
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
17
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
18
BOLT(10) Substituted by 7512457
7512491
Not Available
19
PLATE MTR.MT.
5222333
9999999
Not Available
20
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
21
BOLT
7512539
$7,34 Unit Price incl. VAT
22
MOUNT
3110022
9999999
Not Available
23
WASHER
7555721
$2,09 Unit Price incl. VAT
24
NUT JAM
7542432
$7,34 Unit Price incl. VAT
25
LIMITER TORQUE BLK.
1012048067
Not Available
26
RIVET
7661637
$2,09 Unit Price incl. VAT
27
STOP
3110023
9999999
Not Available
28
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
29
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
30
FUEL LINE; 600 CM
8450040600
Not Available
31
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
FUEL FILTER
2530008
9999999
Not Available
34
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
35
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
36
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
37
THROTTLE CABLE WITH OIL
7080554
$120,74 Unit Price incl. VAT

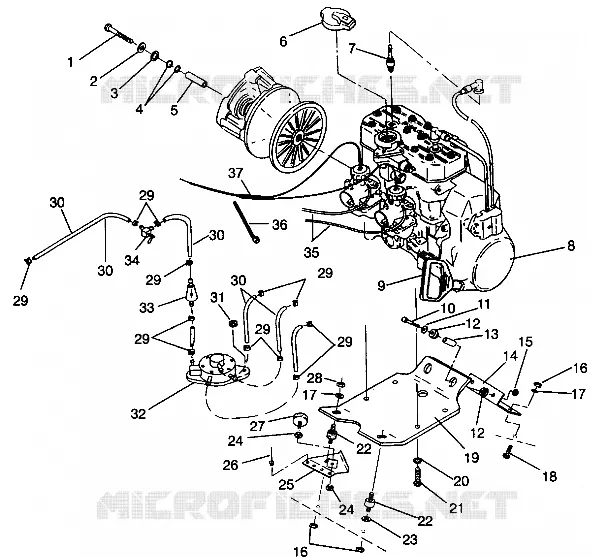

Find the detailed ENGINE MOUNTING WIDETRAK LX 0942064 (49250425040025) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
