1
Engine displacement
autre
2
Year
1994
3
Trim
WIDE TRAK LX - 0942064
4
Parts Catalog
DRIVE SHAFT ASSEMBLY WIDETRAK LX 0942064 (49250425040015)
5
Parts Diagram
Parts Catalog
STEERING ASSEMBLY WIDETRAK LX 0942064 (49250425040014)
by
BRAKE WIDETRAK LX 0942064 (49250425040016)
DRIVE SHAFT ASSEMBLY WIDETRAK LX 0942064 (49250425040015)
1
CALIPER
1930593
9999999
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
O-RING
5410630
9999999
Not Available
4
COUPLER GREASEABLE
1341096
9999999
Not Available
5
COLLAR SHAFT
7010038
Not Available
6
JACKSHAFT BLK (WIDETRAK) Substituted by 6230095-067
6230074067
Not Available
7
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
8
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
9
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
10
BEARING 1 IN.(GREASEABLE)
3514511
Not Available
11
FLANGETTE; GREASABLE
5222647
$47,24 Unit Price incl. VAT
12
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
13
BUSHING
7556509
$3,14 Unit Price incl. VAT
14
KEY-SQUARE
7721204
9999999
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
SPACER INLET SHAFT
5431482
9999999
Not Available
17
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
18
WASHER; SPRING
7571626
9999999
Not Available
19
BOLT
7515502
9999999
Not Available
20
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
21
SPEEDO CABLE
3280094
$115,49 Unit Price incl. VAT
22
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
23
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
24
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
25
FLANGETTE
5222751
9999999
Not Available
26
BEARING DRIVESHAFT
3514518
9999999
Not Available
27
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
28
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
29
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
30
DRIVESHAFT ASM.(W#TRAK)
1590227
Not Available
31
SPROCKET 9T LH
5431181
9999999
Not Available
32
SPROCKET 9T
5431131
Not Available
33
WHEEL IDLER
5431180
Not Available
34
SPROCKET 9T RH
5431379
Not Available
35
SHAFT DRIVE (W TRAK)
6230064
9999999
Not Available
36
BOLT
7515474
9999999
Not Available
37
SHIM
5211065
9999999
Not Available
37
SPACER-.063 (10)
5210759
$6,29 Unit Price incl. VAT
37
SPACER-.080 (10)
5210760
9999999
Not Available
37
SPACER; .020
5210764
9999999
Not Available
38
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT

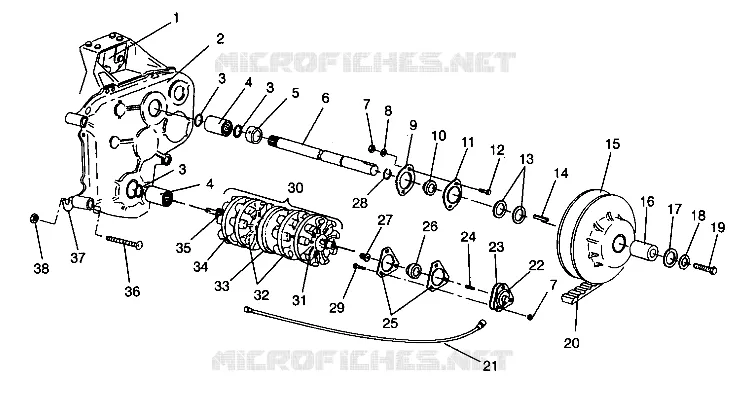

Find the detailed DRIVE SHAFT ASSEMBLY WIDETRAK LX 0942064 (49250425040015) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
