Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, WIRE HARNESS
by
ENGINE, STATOR COVER AND FLYWHEEL
ENGINE, AIR INTAKE SYSTEM
21
23
1
BOOT-ENGINE INTAKE
5450494
9999999
Not Available
2
AIR INTAKE BOX
5450495
9999999
Not Available
3
AIRBOX CLIP
7081707
$9,44 Unit Price incl. VAT
4
AIR FILTER
7082037
$48,71 Unit Price incl. VAT
5
COMPRESSION SHAFT LIMITER; 34.4 MM
5138987
$31,49 Unit Price incl. VAT
6
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
7
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
7
ENGINE INTAKE DUCT
5452665
9999999
Not Available
8
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
9
HOSE-INTAKE ENGINE
5414582
$62,99 Unit Price incl. VAT
10
AIRBOX COVER
5450175
$47,24 Unit Price incl. VAT
11
ENGINE INTAKE BOX; RIGHT
5450728
9999999
Not Available
12
AIR BOX COVER SEAL
5814106
$20,99 Unit Price incl. VAT
13
ADHESIVE FOAM SEAL
5814033
$20,99 Unit Price incl. VAT
14
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
15
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
16
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
17
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
18
FILTER INTAKE; FOAM
5814026
$26,24 Unit Price incl. VAT
19
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
20
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
21
FOIL-AIRBOX
5813106
9999999
Not Available
23
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT

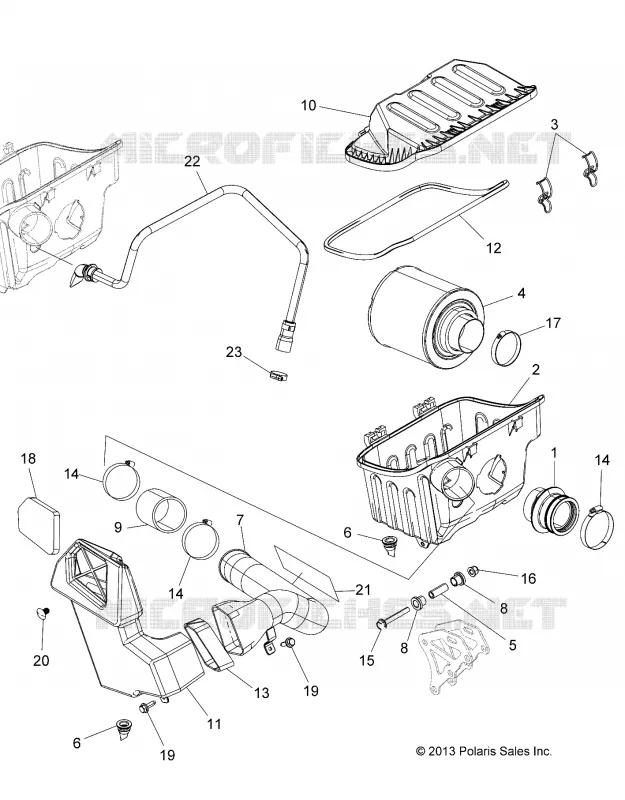

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
