Engine displacement
570
2
Year
2016
3
Trim
ACE 570 EFI MD
4
Parts Catalog
REAR BODYWORK RACK AND FENDERS
5
Parts Diagram
Parts Catalog
ENGINE, FUEL INJECTOR 2521068 O-RINGS
by
SEAT ASM.
REAR BODYWORK RACK AND FENDERS
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
1
REAR CARGO BOX; GLOSS BLACK
5450078070
Not Available
2
FENDER-REAR LH S.GREEN HDPE
5450076498
Not Available
2
FENDER; REAR; LEFT; TITANIUM METALLIC
5451416632
Not Available
3
FENDER; REAR; RIGHT; MT TITANIUM MET
5451417632
Not Available
3
FENDER; REAR; RIGHT; SB GRN MTLC
5450077498
Not Available
4
CLOSEOFF PANEL; GLOSS BLACK
5450079070
Not Available
5
BOX-MAINT PANEL;REMOVABLE;BLK
5450080070
Not Available
6
UNDERSEAT COVER PANEL; LEFT; GLOSS BLACK
5450299070
Not Available
7
PANEL-UNDERSEAT COVER;RH;BLK
5450589070
Not Available
8
GRILL INTAKE; COVER; LEFT; GLOSS BLACK
5450392070
Not Available
9
INTAKE GRILL COVER; RIGHT; GLOSS BLACK
5450393070
Not Available
10
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
11
TURN LATCH; 1/4
7081730
$10,49 Unit Price incl. VAT
12
WASHER
7555919
$7,34 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
15
GROMMET
5412507
$12,59 Unit Price incl. VAT
16
FOIL-TANK RES SUMP
5813858
9999999
Not Available
17
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

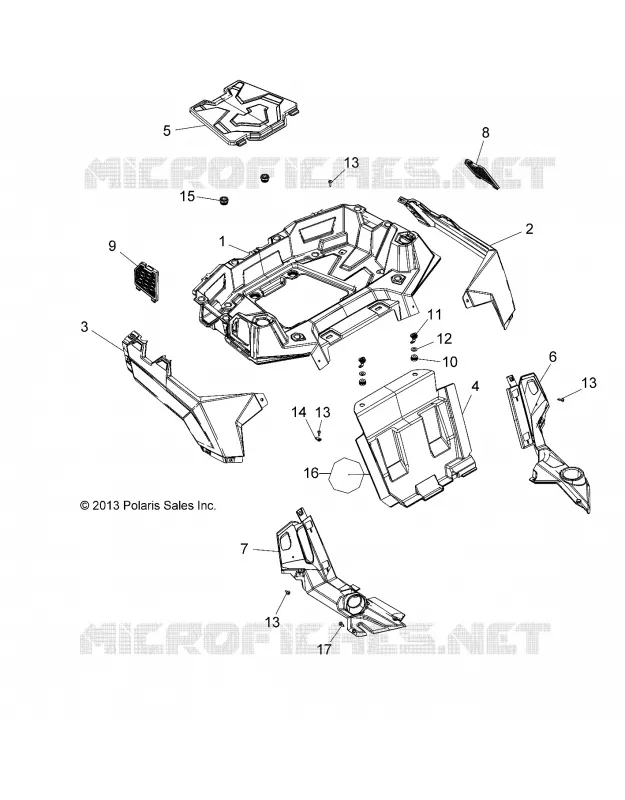

Find the detailed REAR BODYWORK RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
