Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 4X4 W948040 (4926842684C003)
5
Parts Diagram
Parts Catalog
CENTER TIGHTENER ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B012)
by
REAR BRAKE SPORTSMAN 4X4 W948040 (4926842684C004)
GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 4X4 W948040 (4926842684C003)
10
10
10
22
23
10
10
10
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
10
10
10
22
23
10
10
10
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
1
BOLT
7515345
9999999
Not Available
2
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
4
DECAL(CPSC) BRAKE SHIELD Substituted by 7075339
7072790
Not Available
5
SHIELD R.CALIPER BLK.
5240149067
Not Available
6
CAL.ASM REAR BRAKE
1910156
9999999
Not Available
7
BOLT
7515522
$7,34 Unit Price incl. VAT
8
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
BOLT CARRIAGE
7515484
9999999
Not Available
14
BRAKE SEAL
3610026
9999999
Not Available
15
SHIM; .030
5211517
9999999
Not Available
15
SHIM
5211065
9999999
Not Available
15
SPACER; .020
5210764
9999999
Not Available
16
OUTPUT SHAFT BEARING ASSEMBLY
1590237
9999999
Not Available
17
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
18
NUT FLANGE LOCK
7542449
$7,34 Unit Price incl. VAT
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
23
SPACER CHAIN GUARD
5333244
9999999
Not Available
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
DECAL LUBRICATION
7074214
Not Available
28
CHAIN GUARD
5431717
9999999
Not Available
29
SCREW
7515346
$10,49 Unit Price incl. VAT
30
WASHER
7552606
9999999
Not Available
31
WASHER
7555770
7558402
$1,56 Unit Price incl. VAT
32
DECAL DEMAND 4 DRIVE
7074226
Not Available
33
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
34
BOLT
7512269
9999999
Not Available
35
WASHER
7552605
9999999
Not Available
36
SPEED NUT
7670060
9999999
Not Available
37
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
38
NUT LOCK
7542403
9999999
Not Available
39
BOLT
7515472
$4,19 Unit Price incl. VAT
40
NUT
7542404
$3,14 Unit Price incl. VAT
41
BOLT
7515485
9999999
Not Available

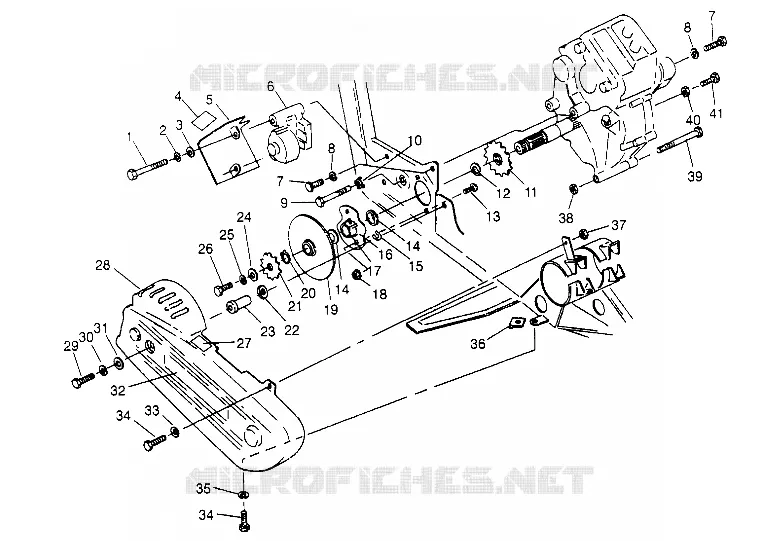

Find the detailed GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 4X4 W948040 (4926842684C003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
