1
Engine displacement
autre
2
Year
1994
3
Trim
SPORTSMAN 4X4 - W948039
4
Parts Catalog
FRONT WHEEL ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B005)
5
Parts Diagram
Parts Catalog
HEADLIGHT SPORTSMAN 4X4 W948040 (4926842684A013)
by
FRONT BRAKE SPORTSMAN 4X4 W948040 (4926842684B006)
FRONT WHEEL ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B005)
24
24
1
ROLL CAGE
3250028
9999999
Not Available
2
ROLL
3250010
9999999
Not Available
3
SPRING; GARTER
3250022
9999999
Not Available
4
SPACER
3250026
9999999
Not Available
5
CAM
3250027
9999999
Not Available
6
BOLT
7515321
9999999
Not Available
7
DISC; BRAKE
5211326
9999999
Not Available
8
HUB SEAL; FRONT
3610019
$68,24 Unit Price incl. VAT
9
ARMATURE PLATE
5211148
$52,49 Unit Price incl. VAT
10
KEY
7721115
9999999
Not Available
11
CLUTCH ASMF.HUBELEC/MECH.
1520190
9999999
Not Available
12
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
13
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
14
HUB ASM;W/BRG.RACE
1520182
9999999
Not Available
15
STUD
7515523
$5,76 Unit Price incl. VAT
16
MAGNETIC DRAIN PLUG
7052045
$26,24 Unit Price incl. VAT
17
TIRE-25-8-12__MB0
5410947
5419027
$153,29 Unit Price incl. VAT
17
DUNLOP KT121 AT 25X8-12
5410568
5419027
$153,29 Unit Price incl. VAT
18
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
19
RIM FRONT(SPORTSMAN)
1520179067
Not Available
20
WASHER
5211101
9999999
Not Available
21
NUT RH THREAD
7543201
9999999
Not Available
22
O-RING
5410470
$4,19 Unit Price incl. VAT
23
HUB CAP
5431368
9999999
Not Available
24
FLANGED NUT LOCK(10)
7542459
$3,14 Unit Price incl. VAT

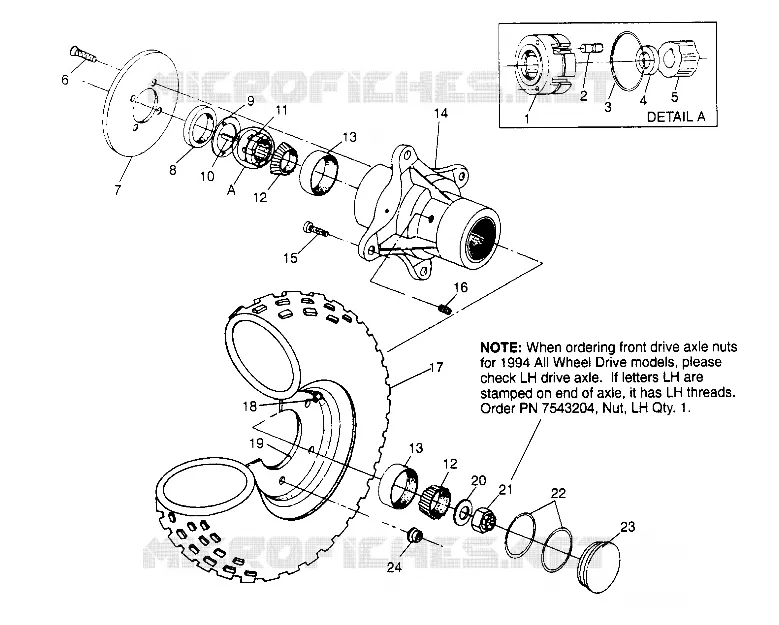

Find the detailed FRONT WHEEL ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
