ENGINE, AIR INTAKE SYSTEM for POLARIS SCRAMBLER 500 4X4 INTL - A12NG50FA from 2012

ENGINE, AIR INTAKE SYSTEM

1

SCREW

7517317

$6,29 Unit Price incl. VAT

2

DUCT-INLET AIRBOX COVER

5438032

9999999

Not Available

3

INTAKE GASKET

5411422

$10,49 Unit Price incl. VAT

4

AIRBOX COVER

5432868

9999999

Not Available

5

AIRBOX COVER SEAL

5812829

5813949

$52,49 Unit Price incl. VAT

6

SCREW

7517685

$3,14 Unit Price incl. VAT

7

SLEEVE-CARB INNER

5433847

$27,29 Unit Price incl. VAT

8

LINE BREATHER 3/8 ID.

8450073600

Not Available

9

HOSE CLAMP

7080699

$3,14 Unit Price incl. VAT

10

BREATHER FILTER IN LINE

2530029

9999999

Not Available

11

CLAMP HOSE SPRING

7080694

$10,49 Unit Price incl. VAT

12

BREATHER HOSE; FORMED WITH CHAFE

5414226

9999999

Not Available

13

CLAMP BAND; NARROW

7080413

$5,76 Unit Price incl. VAT

14

BOOT-CARB AIR BOX

5438033

9999999

Not Available

15

FLAP-AIR INTAKE

5813510

9999999

Not Available

16

PRECLEANER FILTER SLEEVE

5811633

$19,20 Unit Price incl. VAT

17

AIR BOX

5433387

9999999

Not Available

18

CLIP

5242044

$17,84 Unit Price incl. VAT

19

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

20

FILTER AIR

7080595

7083107

$51,23 Unit Price incl. VAT

21

FOIL-AIRBOX 10.75 X 5.60

5813042

9999999

Not Available

22

TRAP PLUG

5435299

9999999

Not Available

23

FUEL LINE

8450059150

Not Available

24

CLAMP HOSE

7080650

$7,34 Unit Price incl. VAT

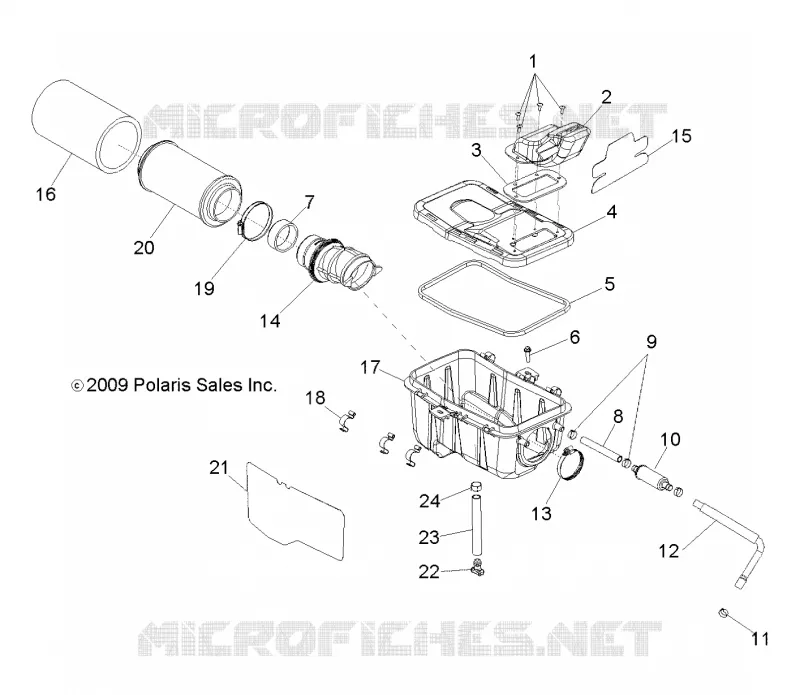

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
