Engine displacement
500
2
Year
2012
3
Trim
SCRAMBLER 500 4X4 INTL - A12NG50FA
4
Parts Catalog
IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
STARTING SYSTEM (BUILT 4/09/12 AND AFTER)
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
1
1
1
2
2
2
3
3
3
4
5
5
5
6
7
8
8
8
9
10
11
11
11
12
12
12
12
13
13
14
15
16
17
17
18
19
20
21
1
IGNITION COIL ASSEMBLY
3089260
9999999
Not Available
2
PLATE
3089248
9999999
Not Available
3
STATOR
3089249
9999999
Not Available
4
O-RING
3084978
9999999
Not Available
5
BEARING; METAL
3084972
9999999
Not Available
6
SPARKPLUG CAP
3084980
9999999
Not Available
7
BOLT FLANGE
3083361
9999999
Not Available
8
OIL SEAL
3084973
9999999
Not Available
9
SPARK PLUG
3070172
$7,34 Unit Price incl. VAT
10
ASM-SCREW AND WASHER
3089251
9999999
Not Available
11
FLYWHEEL WITH RING GEAR
3090239
9999999
Not Available
12
SCREW&WASHER ASM.
3084976
9999999
Not Available
13
BAND-PULSE
3089250
9999999
Not Available
14
PULSER COIL
3089254
9999999
Not Available
15
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
16
CDI SYSTEM COMPLETE
3090281
9999999
Not Available
17
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
18
BOLT
7512007
$7,34 Unit Price incl. VAT
19
SCREW
7512024
$9,44 Unit Price incl. VAT
20
BRKT-CDI DIGITAL LONG
5246747
9999999
Not Available
21
PAD
5810317
9999999
Not Available

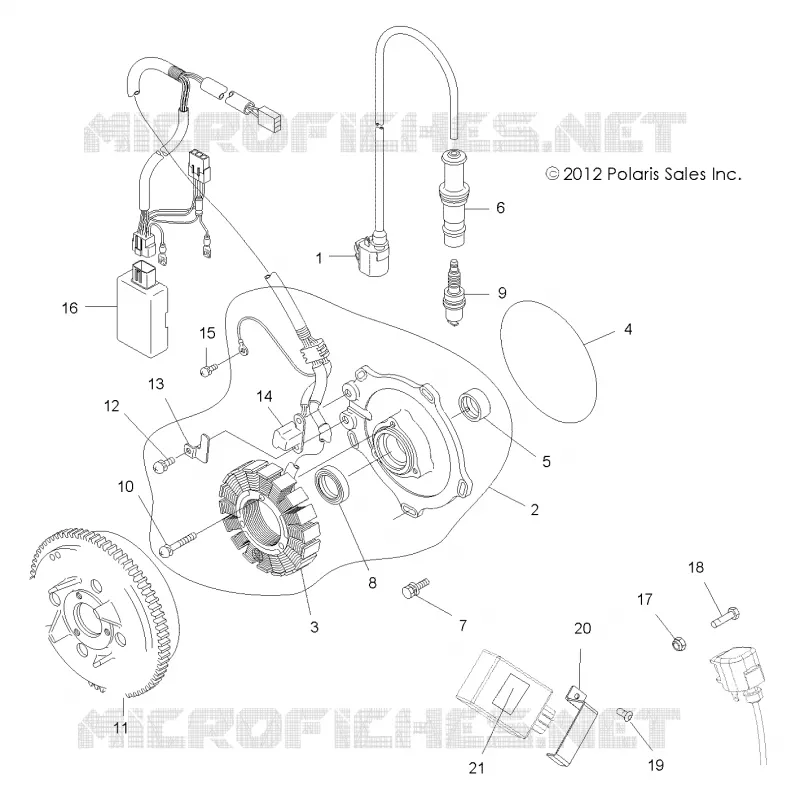

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
