1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 2X4 - A01CB32AA
4
Parts Catalog
AIR BOX (IF BUILT AFTER 1/08/01)
5
Parts Diagram
Parts Catalog
AIR BOX (IF BUILT BEFORE 1/08/01)
by
FRONT WHEEL
AIR BOX (IF BUILT AFTER 1/08/01)
1
SCREW
7515180
9999999
Not Available
2
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
3
FILTER-AIRBOX VENT
5812137
9999999
Not Available
4
SEAL
5812023
9999999
Not Available
5
DUCT-INLET
5433920
9999999
Not Available
6
PAD
5810317
9999999
Not Available
7
AIRBOX COVER
5433769
9999999
Not Available
8
SEAL COVER
5811482
5813949
$52,49 Unit Price incl. VAT
9
CLIP
5242044
$17,84 Unit Price incl. VAT
10
COLLAR CARBURETOR INLET
5432601
9999999
Not Available
11
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
12
CAP-RUBBER 3/8 ID
5412101
$10,49 Unit Price incl. VAT
13
HOSE BRTHR .47-.38X13.5
5411866
9999999
Not Available
14
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
15
CARBURETOR BOOT
5411588
9999999
Not Available
16
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
17
CARBURETOR INLET DUCT
5433180
9999999
Not Available
18
CARBURETOR INLUET DUCT GASKET
5830128
9999999
Not Available
19
BOX-AIR INTAKE;4 STROKE
5433919
9999999
Not Available
20
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
21
PLUG TRAP
5432377
9999999
Not Available
22
FOIL-ARIBOX RH
5812111
Not Available
23
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
24
CAP; RUBBER
5412099
9999999
Not Available
25
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
26
PRE CLEAN SLEEVE FILTER; 4 IN
5811660
9999999
Not Available
27
4.0 IN. AIR FILTER ASSEMBLY
1253372
$49,13 Unit Price incl. VAT

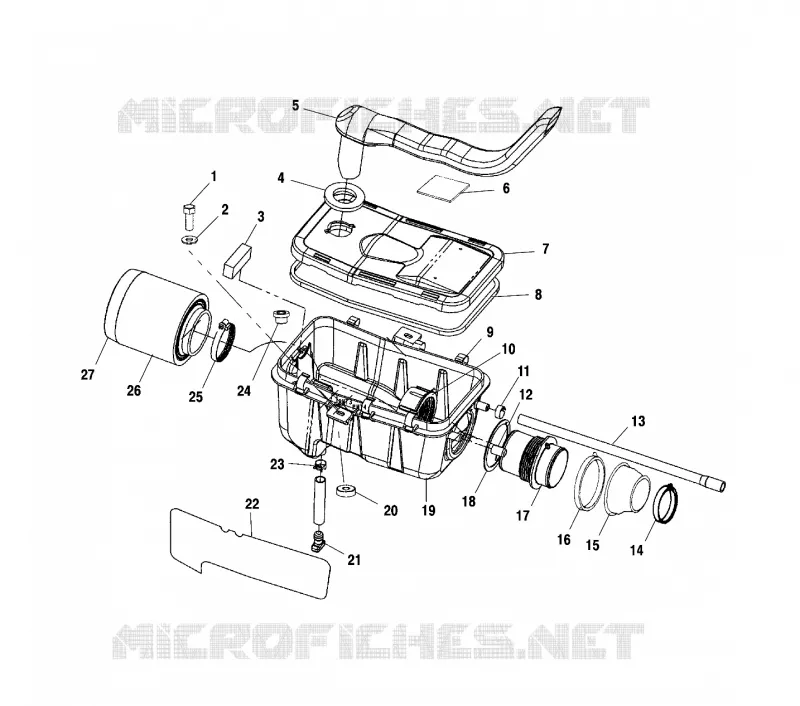

Find the detailed AIR BOX (IF BUILT AFTER 1/08/01) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
