1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 2X4 - A01CB32AA
4
Parts Catalog
STEERING POST
5
Parts Diagram
Parts Catalog
STEERING POST
by
DRIVE CLUTCH
STEERING POST
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
3
BUSHING-UPPER 1 IN
5433866
5439731
$12,59 Unit Price incl. VAT
4
STEERING POST2X4BLK
1820983067
Not Available
5
BRKT-STEERING POST
5132679
9999999
Not Available
6
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
7
BUSHING 1 X 1.5 X .145
7556162
$7,34 Unit Price incl. VAT
8
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
9
BEARING-1XM52XM15 SPH
3514352
3514617
$54,59 Unit Price incl. VAT
10
NUT-SLOTTED HEX1-14-HX
7547158
9999999
Not Available
11
PIN; COTTER
7661633
9999999
Not Available
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT

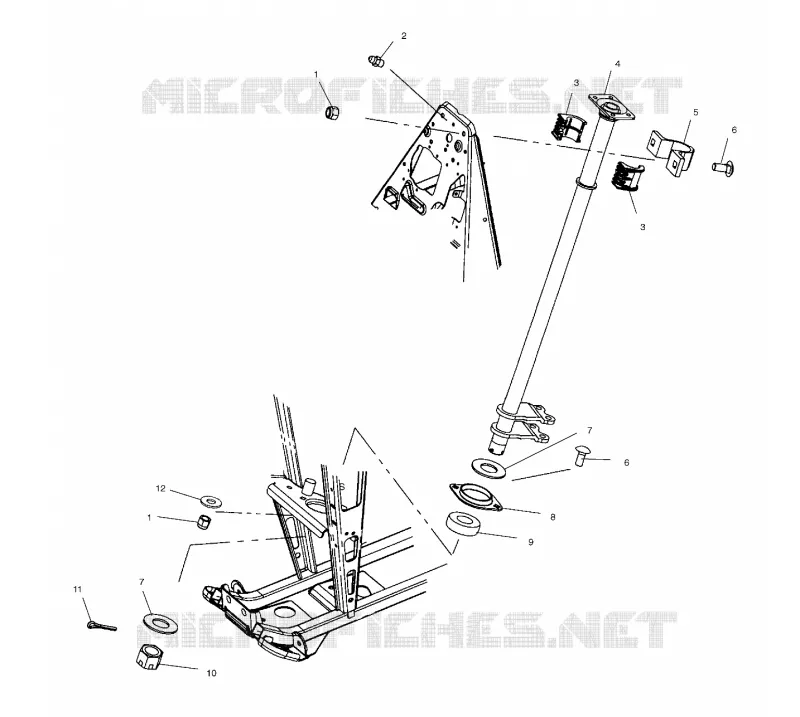

Find the detailed STEERING POST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
