Parts Catalog
FRONT SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT SUSPENSION HUB
FRONT SUSPENSION CONTROL ARMS
1
1
2
2
3
3
4
11
6
7
8
8
9
10
10
11
12
12
13
13
14
15
16
17
18
18
19
1
WELD-A-ARM FR UPR RH BLK
1025699458
Not Available
1
WELD-A-ARM FR UPR LH BLK
1025698458
Not Available
2
WELD-A-ARM FRT LWR RH M.BLK
1025855458
Not Available
2
WELD-A-ARM FRT LWR LH M.BLK
1025854458
Not Available
3
BALL-JOINT HARDENED HI-MISALGN
7082892
$89,24 Unit Price incl. VAT
3
HIGH MISALIGNED BALL JOINT
7082422
7082892
$89,24 Unit Price incl. VAT
4
BALL-JOINT
7082557
$89,24 Unit Price incl. VAT
5
INTERNAL RETAINING RING
7710780
$17,84 Unit Price incl. VAT
6
PIVOT SHAFT; SHORT
5140555
5144660
$16,79 Unit Price incl. VAT
7
STANDARD BUSHING; SUSPENSION; M12
5452271
$6,29 Unit Price incl. VAT
8
CAP-PIVOT SEAL;M12
5139992
$8,39 Unit Price incl. VAT
8
SEALED PIVOT CAP ASSEMBLY; 12 MM
1543612
$10,49 Unit Price incl. VAT
9
O-RING 2-213
5415654
$2,09 Unit Price incl. VAT
10
CARRIER-BEARING FRONT RH
5143402
$188,99 Unit Price incl. VAT
10
CARRIER-BEARING FRONT LH
5143401
$188,99 Unit Price incl. VAT
11
INTERNAL RETAINING RING
7710780
$17,84 Unit Price incl. VAT
12
BALL BEARING; SEALED; 44 X 72 X 33.1
3515090
$108,14 Unit Price incl. VAT
12
SEALED BALL BEARING; 44 X 72 X 33.1
3514924
$73,49 Unit Price incl. VAT
13
SHIELD-CV FRONT RH BLK
5459098070
Not Available
13
SHIELD-CV FRONT LH BLK
5459097070
Not Available
14
RIVET
7621472
$2,09 Unit Price incl. VAT
15
WASHER 13 X 2.5
7556287
$13,64 Unit Price incl. VAT
16
HEX FLANGE SCREW 12 MM X 1.5 MM X 105 MM
7520479
$13,64 Unit Price incl. VAT
17
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
18
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
19
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT

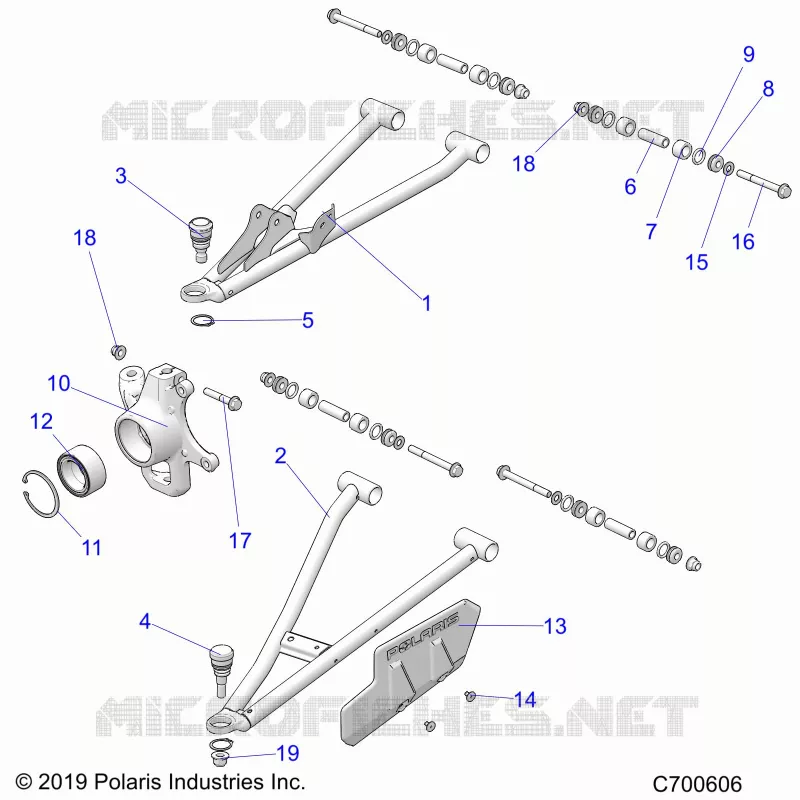

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
