CYLINDER AND PISTON for POLARIS RANGER CREW 1000 FULL SIZE from 2023

ENGINE, CRANKCASE AND CRANKSHAFT

ENGINE, CYLINDER HEAD AND VALVES

CYLINDER AND PISTON

1

ASM-CYLINDER 875

3023800

$801,14 Unit Price incl. VAT

2

DOWEL PIN; 6 MM X 10 MM

5132835

$4,19 Unit Price incl. VAT

3

K-PISTON 3023455

2208319

$256,19 Unit Price incl. VAT

4

KIT-PISTON RINGS

2205245

2204949

$157,49 Unit Price incl. VAT

5

PISTON PIN

3022358

$40,94 Unit Price incl. VAT

6

GASKET-BASE 2 CYL

5272970

$68,24 Unit Price incl. VAT

6

BASE GASKET

5253037

$57,74 Unit Price incl. VAT

7

CAST WATER INLET COVER

5632557

$29,39 Unit Price incl. VAT

8

INLET WATER GASKET

5813736

$41,99 Unit Price incl. VAT

9

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

10

CYLINDER HEAD GASKET

5814793

$110,24 Unit Price incl. VAT

11

ROUND RETAINING RING; 20.0 X 1.6

3022413

$7,34 Unit Price incl. VAT

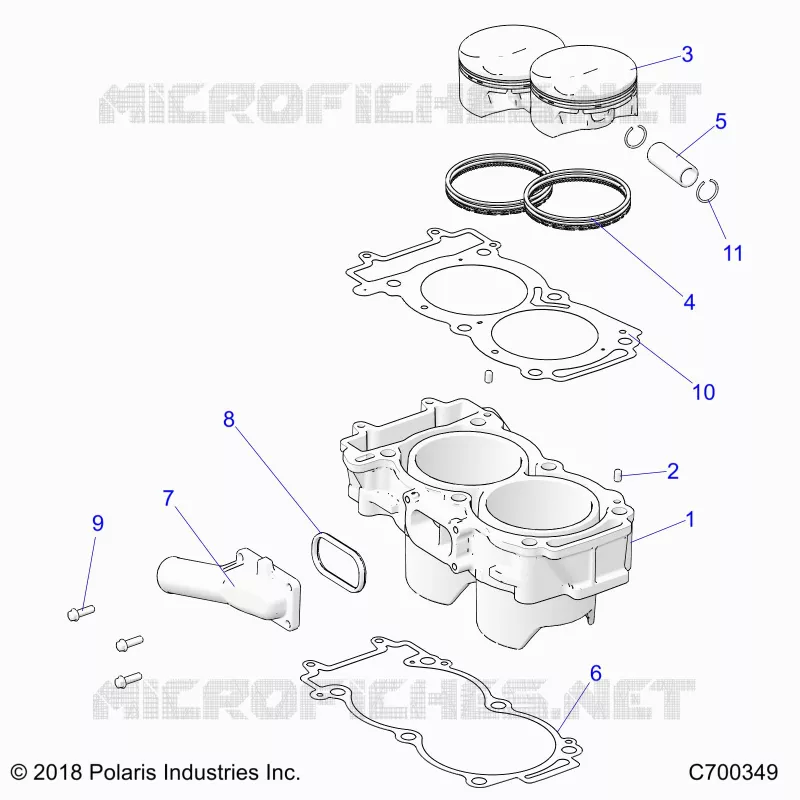

Find the detailed CYLINDER AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
