1
Engine displacement
900
2
Year
2011
3
Trim
RANGER 4X4 900 D - R11TH90DG
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE DUCTING
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS
COOLING SYSTEM
31
32
33
34
1
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
2
ASM-HOSE RAD IN ENG OUT 900D
1240590
9990000
Not Available
3
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
4
ASM-HOSE RAD OUT ENG IN 900D
1240591
9990000
Not Available
5
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
6
CONNECTOR SPLICE BARBED 1 I
7052381
9999999
Not Available
7
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
8
CLIP-COOLANT ROUTING
5438331
9999999
Not Available
9
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
10
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
11
RADIATOR-FLAT
1240528
1240721
$913,49 Unit Price incl. VAT
12
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
13
ASM-FAN RANGER
2411559
2411732
$593,24 Unit Price incl. VAT
14
GROMMET AND INSERT ASSEMBLY
5413155
$7,34 Unit Price incl. VAT
15
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
16
VALVE-PLASTIC RAD/COOLER DRAIN
7052410
$52,49 Unit Price incl. VAT
17
SCREW
7517685
$3,14 Unit Price incl. VAT
18
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
19
HOSE-LOWER RADIATOR
5413988
9999999
Not Available
20
GASKET
5810279
$4,19 Unit Price incl. VAT
21
FUEL LINE; 1/4 ID
84500031525
Not Available
22
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
BRKT-SURGE TANK;BLK
5252305329
Not Available
25
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
26
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
27
HOSE-RETAINER
7043724
9999999
Not Available
28
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
29
HOSE-UPPER RADIATOR
5413987
5414279
$104,99 Unit Price incl. VAT
30
HOSE-1.00 ID ENG OUT
5413905
9999999
Not Available
31
HOSE-1.00ID RAD INLET
5413909
9999999
Not Available
32
Bracket Coolant Hose Retainer Black
5254962329
Not Available
33
SCR-1/4-20X3/4-TR/TX/TAP-M
7517916
$11,54 Unit Price incl. VAT
34
SHIELD
TBD
Not Available

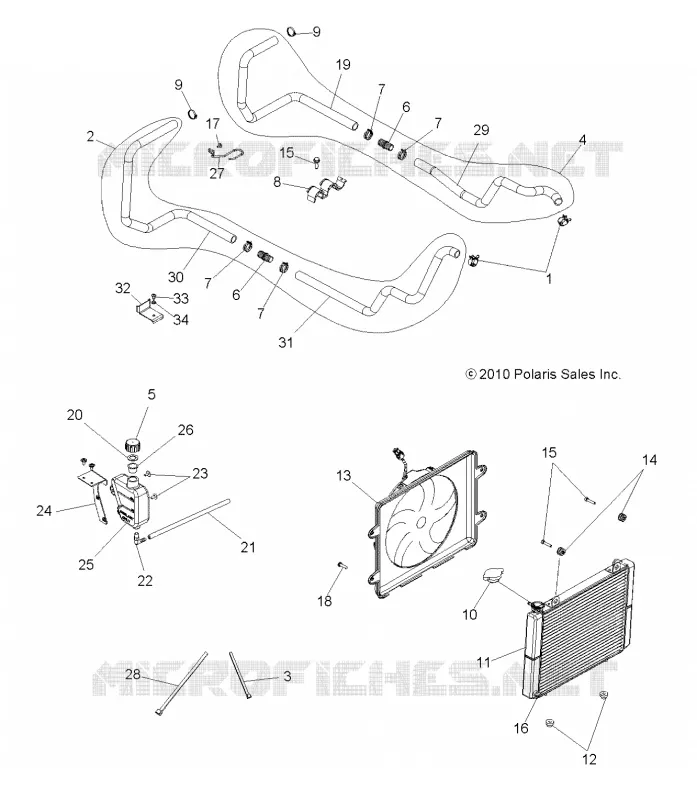

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
