1
Engine displacement
900
2
Year
2011
3
Trim
RANGER 4X4 900 D - R11TH90DG
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
THROTTLE PEDAL
ENGINE, MOUNTING
1
2
3
3
4
4
5
5
6
7
8
8
9
9
10
10
11
11
12
12
13
14
15
1
BRKT-ENGINE THROTTLE DSL BLK
5254264329
Not Available
2
SCREW
7517704
$13,64 Unit Price incl. VAT
3
ISOLATOR BASE WELD
1015672
9999999
Not Available
4
ENGINE MOUNT; 70 DURO
1332886
$157,49 Unit Price incl. VAT
5
SCREW
7515398
9999999
Not Available
6
ENGINE MOUNT WELD; FRONT; LEFT; BLACK
1017636329
Not Available
7
ENGINE CASE MOUNT; RIGHT; BLACK
5254141329
Not Available
8
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
9
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
10
BOLT CAP; 8 MM X 1.25 MM
7517924
$8,39 Unit Price incl. VAT
11
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
12
SCR-HEXFLGHD M10X16 0600086
7517951
$10,49 Unit Price incl. VAT
13
GUARD-BELT DIESEL
5438629
9999999
Not Available
14
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
15
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT

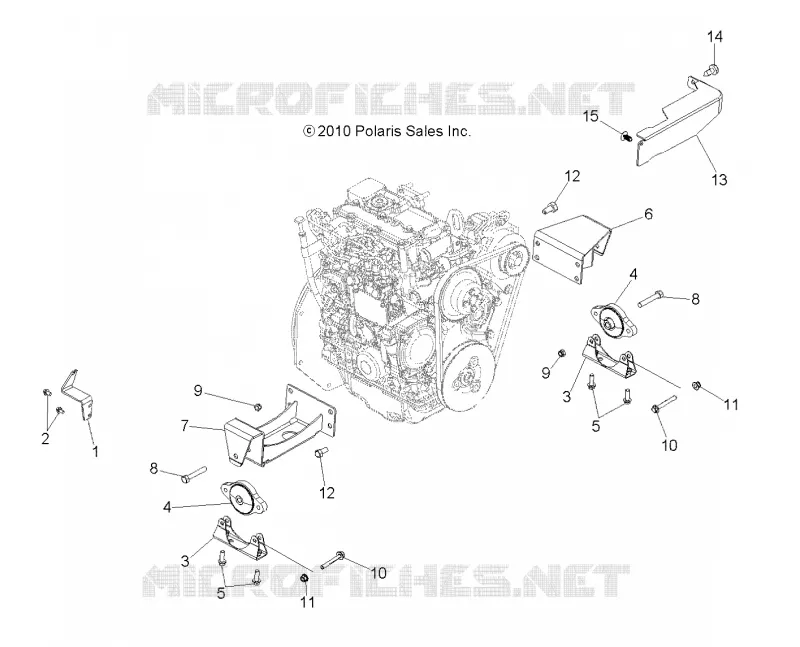

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
