1
Engine displacement
800
2
Year
2013
3
Trim
800 RUSH PRO-R
4
Parts Catalog
BATTERY AND CABLES
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
FUEL SYSTEM, FUEL TANK ASM.
BATTERY AND CABLES
1
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
17
1
INSUL.CABLE SOL.
5410346
9999999
Not Available
1
CABLE; RED; 1045 MM
4013289
$89,24 Unit Price incl. VAT
2
CONVOLUTED CONDUIT; 100 CM
4010051100
Not Available
3
HEX NUT
7542105
$7,34 Unit Price incl. VAT
4
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
5
SOLENOID CABLE ASSEMBLY
2460393
$67,19 Unit Price incl. VAT
6
CABLE; BLACK; 1360 MM
4013290
$89,24 Unit Price incl. VAT
7
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
7
TIE-CABLE PRESS MNT BLK
7080999
9999999
Not Available
8
SHIELD-HEAT BATTERY
5253414
5262301
$52,49 Unit Price incl. VAT
9
BATTERY BOLT KIT
2201357
$20,99 Unit Price incl. VAT
10
BATTERY SEALED NON SPILL RUSH 2
4013045
$215,24 Unit Price incl. VAT
11
BATTERY BOX BRACKET ASSEMBLY; FRONT
1018527
$52,49 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 16 MM
7518548
$3,14 Unit Price incl. VAT
13
BATTERY BOX WELD
1017182
$173,24 Unit Price incl. VAT
14
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
15
HOOK- D
5224468
$17,84 Unit Price incl. VAT
15
BATTERY STRAP; RUBBER
5410608
5419141
$16,58 Unit Price incl. VAT
16
STUD PLATE ASSEMBLY
1017181
$18,89 Unit Price incl. VAT
17
HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM
7519243
$7,34 Unit Price incl. VAT

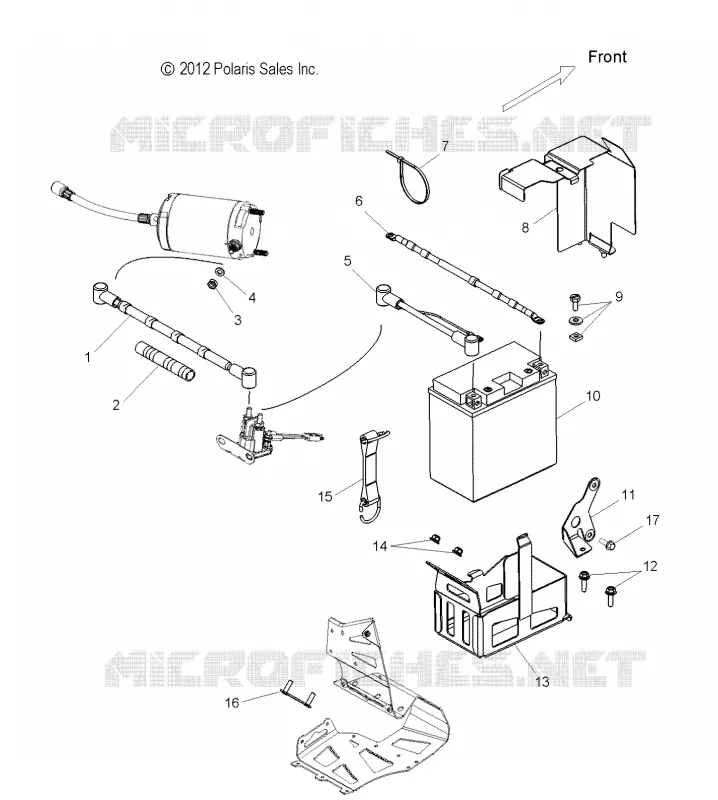

Find the detailed BATTERY AND CABLES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
