1
Engine displacement
800
2
Year
2013
3
Trim
800 RUSH PRO-R
4
Parts Catalog
DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
by
ENGINE, AIR INTAKE SYSTEM
DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
14
1
SCR-TXTH-M8X1.25X20 8.8 ZODP30
7519260
$11,54 Unit Price incl. VAT
2
FLANGETTE-3BOLT 0MM OFFSET OUT
5252738
$18,89 Unit Price incl. VAT
3
JACK SHAFT WITH BEARING ASSEMBLY
1333019
$587,99 Unit Price incl. VAT
4
BEARING; 1 MM X 52 MM X 15 MM
3514617
$54,59 Unit Price incl. VAT
5
FLANGETTE-3BOLT 0MM OFFSET IN
5252739
$18,89 Unit Price incl. VAT
6
ASM-NUT PLATE;JACKSHAFT
1017848
$18,89 Unit Price incl. VAT
7
DRIVESHAFT ASSEMBLY; 9 TOOTH; METRIC
1590485
9999999
Not Available
8
FLANGETTE W/ SCREW ASSEMBLY
1016551
$68,24 Unit Price incl. VAT
9
JACKSHAFT GASKET; BLACK
5811095
9999999
Not Available
10
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7519324
$6,29 Unit Price incl. VAT
11
PALNUT
7547030
$9,44 Unit Price incl. VAT
12
DRIVE PICKUP HOUSING
5246960
$47,24 Unit Price incl. VAT
13
O-RING 20.30 MM X 2.62 MM
5413563
$3,14 Unit Price incl. VAT
14
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT

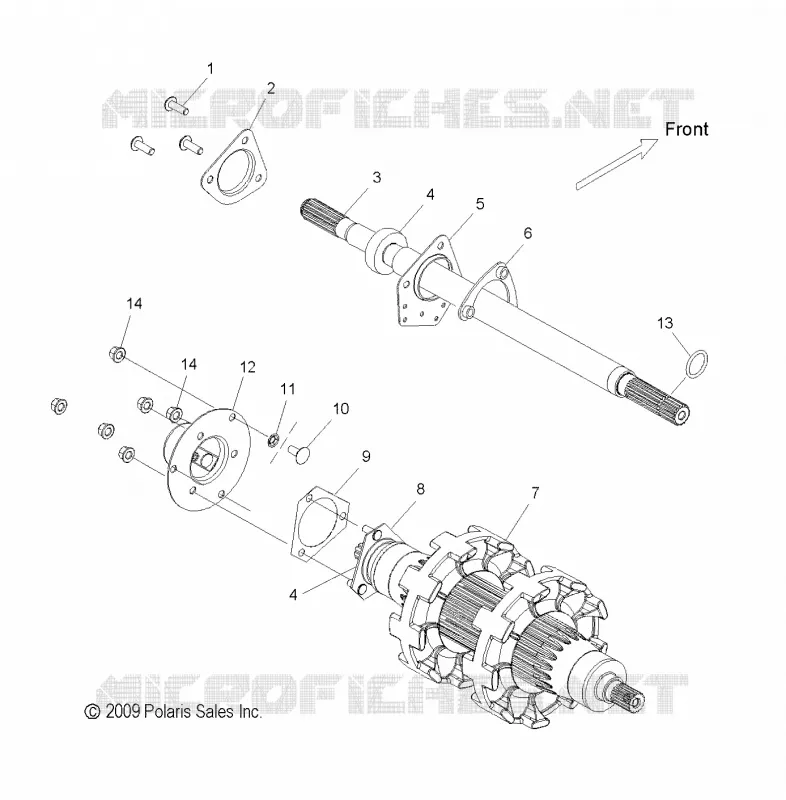

Find the detailed DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
