WHEELS, REAR AND HUB for POLARIS SPORTSMAN TOURING 1000 from 2018

SUSPENSION, SHOCK, FRONT

DRIVE TRAIN, FRONT GEARCASE INTERNALS

WHEELS, REAR AND HUB

1

BEARING CARRIER LEFT

5136689

5143607

$121,79 Unit Price incl. VAT

1

BEARING CARRIER RIGHT

5136690

5143608

$121,79 Unit Price incl. VAT

2

SEALED BALL BEARING; 44 X 72 X 33.1

3514699

$73,49 Unit Price incl. VAT

3

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

4

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

5

TIRE AT26 X 11 R14 PXT

5414828

5419045

$233,40 Unit Price incl. VAT

6

TAPERED WHEEL NUT; 10 MM X 1.25 MM

7547361

$4,19 Unit Price incl. VAT

7

RIM CAP; MEDIUM GLOSS BLACK

1521999067

Not Available

8

RIM OFFSET; REAR; RIGHT; 14 X 7.5-72.2

1522101067

Not Available

9

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

10

CASTLE NUT; 18 MM X 1.5 MM X 13 MM

7547406

$9,44 Unit Price incl. VAT

11

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

12

WHEEL HUB

5136946

$178,49 Unit Price incl. VAT

13

BRAKE DISC

5250205

$141,74 Unit Price incl. VAT

14

WHEEL STUD; M10 X 1.25 X 58

7518671

$3,14 Unit Price incl. VAT

15

RIM VALVE

1525017

$12,59 Unit Price incl. VAT

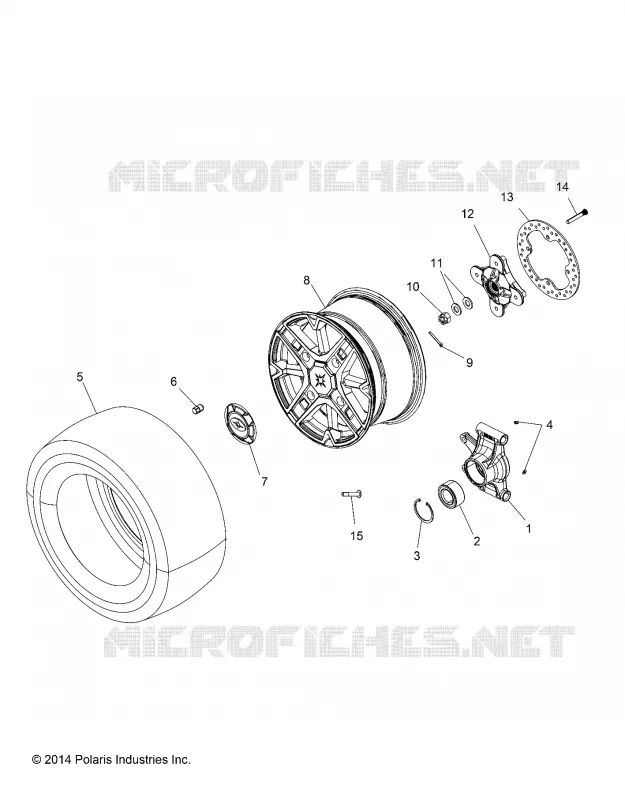

Find the detailed WHEELS, REAR AND HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN TOURING 1000

BODY, CABIN

FRONT RACK SUPPORT

BODY, SEAT, OPERATOR

BODY, SKID PLATES

BRAKES, REAR CALIPER

DRIVE TRAIN, DRIVE COUPLER

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, PROP SHAFT, FRONT

WIRE HARNESS

IGNITION SYSTEM

ENGINE, CAM CHAIN

ENGINE, COOLING SYSTEM

ENGINE, LONG BLOCK

ENGINE, STARTING SYSTEM

FRONT SUSPENSION A-ARMS

SUSPENSION, SHOCK, FRONT

WHEELS, REAR AND HUB

DRIVE TRAIN, FRONT GEARCASE INTERNALS

BODY, FUEL TANK

BODY, HEADLIGHT POD

BODYWORK

MIRRORS

BODY, BODYWORK

DRIVE TRAIN, DRIVE SHAFT, REAR

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEARCASE MOUNTING, FRONT

ELECTRICAL, SWITCHES, SENSORS, ECU AND CONTROL MODULES

ELECTRICAL, TAILLIGHTS

ENGINE, AIR INTAKE

ENGINE, BALANCE SHAFT

ENGINE, VALVE COVER

OWNERS MANUAL

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

STEERING, HANDLEBAR AND CONTROLS

BODY, FRONT BUMPER AND MOUNTING

FRONT CARGO BOX

REAR RACK ASM.

BODY, SEAT, PASSENGER

CHASSIS, MAIN FRAME

DRIVE TRAIN, GEARCASE MOUNTING, REAR

DRIVE TRAIN, PRIMARY CLUTCH

GAUGES & INDICATORS

ELECTRICAL, HEADLIGHTS

ENGINE, COOLING BYPASS

ENGINE, COOLING SYSTEM AND WATER PUMP

ENGINE, EXHAUST

ENGINE, OIL SYSTEM

ENGINE, THROTTLE BODY

STEERING, STEERING POST ASM.

REAR SUSPENSION

DRIVE TRAIN, DRIVE SHAFT, FRONT

BODY, FUEL PUMP COVER

BODY, CLUTCH COVER

BODY, DECALSS

BRAKES, BRAKE LINES

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER

BRAKES, FRONT CALIPER

DRIVE TRAIN, PROP SHAFT, REAR

DRIVE TRAIN, REAR GEARCASE INTERNALS

DRIVE TRAIN, SECONDARY CLUTCH

ELECTRICAL, BATTERY

BULBS

ENGINE, CRANKCASE

ENGINE, CRANKSHAFT AND PISTON

ENGINE, CYLINDER HEAD, CAM AND VALVES

ENGINE, ENGINE AND TRANSMISSION MOUNTING

SUSPENSION, SHOCK, REAR

STABILIZER BAR

TOOLS, TOOL KIT

WHEELS, FRONT AND HUB

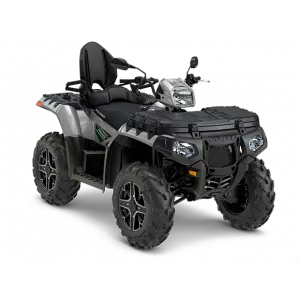

POLARIS SPORTSMAN TOURING 1000 2018
