DRIVE TRAIN, MAIN GEARCASE for POLARIS SPORTSMAN TOURING 1000 from 2018

DRIVE TRAIN, DRIVE COUPLER

DRIVE TRAIN, PROP SHAFT, FRONT

ASM-TRANS BOSS/LUK CLSD RATIO

1333482

$5 680,49 Unit Price incl. VAT

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

SCREW; TORX PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

SCREW; HEX

3234634

$25,19 Unit Price incl. VAT

NUT-LOCK HEX FLANGE NYLON 5/16

3233961

$5,24 Unit Price incl. VAT

WASHER THRUST

3234636

$14,69 Unit Price incl. VAT

THRUST WASHER

3234637

$20,99 Unit Price incl. VAT

PIN; DOWEL; 6 X 20

3234330

$13,64 Unit Price incl. VAT

SNAP RING

3233106

$10,49 Unit Price incl. VAT

RETAINING RING

3233834

$19,94 Unit Price incl. VAT

RING-RETAINING

3233699

$13,64 Unit Price incl. VAT

EXTERNAL RETAINING RING

3234318

$5,76 Unit Price incl. VAT

RING; RETAINING BASIC; EXTERNA

3234327

$13,64 Unit Price incl. VAT

INTERNAL RETAINING RING

3234741

$17,84 Unit Price incl. VAT

RING RETAINNG BC EXTRNL SHR-50

3234639

$19,94 Unit Price incl. VAT

EXTERNAL RETAINING RING

3234641

$26,24 Unit Price incl. VAT

THRUST WASHER; .446 X .88 X .025

3234642

$19,94 Unit Price incl. VAT

INPUT SHAFT SHIM PACK KIT

2204343

$54,59 Unit Price incl. VAT

THRUST WASHER; 1.300 X .995 X .065

3234248

$17,84 Unit Price incl. VAT

SHIM

3234643

$68,24 Unit Price incl. VAT

SHIM

3234644

$26,24 Unit Price incl. VAT

WASHER; THRUST

3234646

$41,99 Unit Price incl. VAT

WASHER; THRUST

3234757

$20,99 Unit Price incl. VAT

BEARING

3233018

$47,24 Unit Price incl. VAT

BEARING

3233019

$54,59 Unit Price incl. VAT

BEARING

3233020

$80,84 Unit Price incl. VAT

BALL BEARING

3234651

$27,29 Unit Price incl. VAT

BEARING; BALL; 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

NEEDLE BEARING

3234759

$27,29 Unit Price incl. VAT

BALL BEARING

3234652

$27,29 Unit Price incl. VAT

BEARING; NEEDLE

3234655

$27,29 Unit Price incl. VAT

NEEDLE BEARING

3234656

$27,29 Unit Price incl. VAT

SPRNG; COMP; .648 OD X 1.33

3234687

$16,79 Unit Price incl. VAT

SPRING; WAVE

3234688

$19,94 Unit Price incl. VAT

PARK PAWL TORSION SPRING

3234787

$52,49 Unit Price incl. VAT

COMPRESSION SPRING

3234790

$47,24 Unit Price incl. VAT

GEARCASE COVER; MACHINED; GTO

3235790

$1 133,99 Unit Price incl. VAT

BELL HOUSING-MACH

3235196

$68,24 Unit Price incl. VAT

GEARCASE-MAIN GTO MACH

3235428

$593,24 Unit Price incl. VAT

PAWL PARK

3234692

3239339

$99,74 Unit Price incl. VAT

GEAR; SECTOR 38T

3234694

$62,99 Unit Price incl. VAT

DETENT BULLET

3234695

$68,24 Unit Price incl. VAT

SPROCKET; 44 TOOTH

3234998

$125,99 Unit Price incl. VAT

REVERSE SHAFT; 53 TOOTH

3234774

$367,49 Unit Price incl. VAT

BALL BEARING

3233265

$68,24 Unit Price incl. VAT

HELICAL GEAR; 42T

3235133

$152,24 Unit Price incl. VAT

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

INPUT SHAFT; 25 TOOTH

3235063

$593,24 Unit Price incl. VAT

INPUT SHAFT

3235194

$435,74 Unit Price incl. VAT

OUTPUT SHAFT; REAR

3235789

$734,99 Unit Price incl. VAT

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

GEAR; 67T

3234706

$173,24 Unit Price incl. VAT

SPROCKET; 48 TOOTH

3234707

$68,24 Unit Price incl. VAT

SPROCKET; 23 TOOTH

3235544

$73,49 Unit Price incl. VAT

BELLCRANK; SHIFT; SHAFT

3234712

$120,74 Unit Price incl. VAT

RAIL; SHIFT; SHAFT

3234714

$52,49 Unit Price incl. VAT

DETENT PLUG

3234715

$68,24 Unit Price incl. VAT

RAIL; PARK SHAFT

3234716

$52,49 Unit Price incl. VAT

DOG; ENGAGEMENT; LOW

3234718

$346,49 Unit Price incl. VAT

DOG-ENGAGEMENT GTO REV/LOW

3235341

$335,99 Unit Price incl. VAT

SHIFT FORK

3235342

$167,99 Unit Price incl. VAT

PIPE; KNOCK

3234765

$26,24 Unit Price incl. VAT

SHIFT FORK

3234766

$167,99 Unit Price incl. VAT

DOG-ENGAGEMENT GTO HIGH

3235190

$136,49 Unit Price incl. VAT

SWITCH SHAFT SUBASSEMBLY

3234767

$230,99 Unit Price incl. VAT

SUBASSEMBLY-OUTPUT SHAFT;FRONT

3235788

$451,49 Unit Price incl. VAT

PRIMARY SHAFT SUB ASSEMBY; 50 TOOTH

3235191

$577,49 Unit Price incl. VAT

SHIM KIT

2204268

$68,24 Unit Price incl. VAT

BELLCRANK; 15 TOOTH SPLINE

3234724

$52,49 Unit Price incl. VAT

DEFLECTOR; OIL

3234725

$26,24 Unit Price incl. VAT

SUB ASSSEMBLY; BEARING COVER

3235198

$40,94 Unit Price incl. VAT

RIBBED WASHER

3235508

$7,34 Unit Price incl. VAT

SILENT CHAIN

3234737

$314,99 Unit Price incl. VAT

SILENT CHAIN

3234738

$456,74 Unit Price incl. VAT

ROTARY SWITCH; 6 PIN

3236115

$225,74 Unit Price incl. VAT

O-RING

3233840

$20,99 Unit Price incl. VAT

O-RING

3233828

$12,59 Unit Price incl. VAT

O-RING

3234729

$25,19 Unit Price incl. VAT

O-RING-N70 9.5MM X 2MM

3236171

$17,84 Unit Price incl. VAT

TRIPLE LIP SEAL

3234769

$78,74 Unit Price incl. VAT

VITON TRIPLE LIP SEAL

3234892

$68,24 Unit Price incl. VAT

TRANSMISSION FLUID;XP (12)

2877606

502505

Not Available

TRANSMISSION SPEED SENSOR

4013908

4082135

$204,74 Unit Price incl. VAT

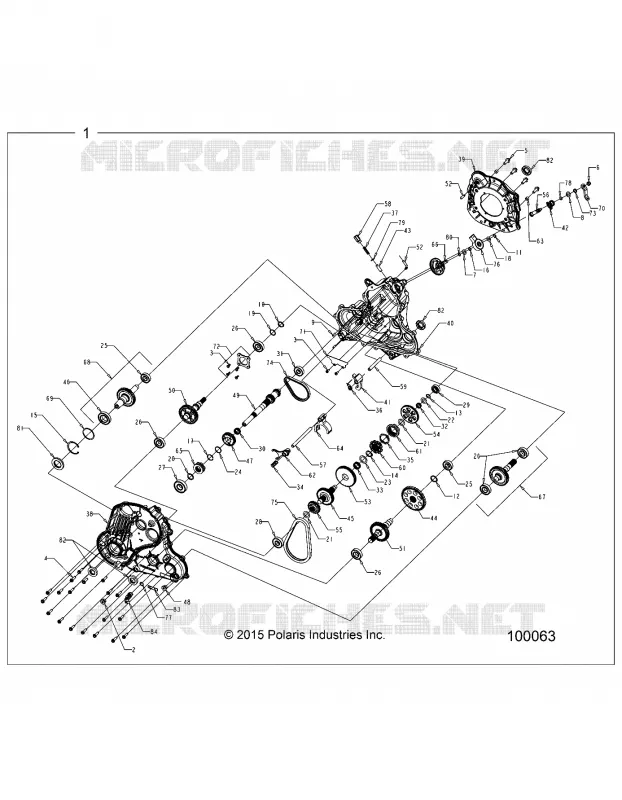

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN TOURING 1000

POLARIS SPORTSMAN TOURING 1000 2018

SPORTSMAN TOURING 1000

Model : SPORTSMAN XP TOURING 1000

Engine capacity : 1000

Year : 2018
