BRAKES, BRAKE LINES AND MASTER CYLINDER for POLARIS RZR PRO XP DELUXE from 2023

SEAT MOUNTING, PASS.

BRAKES, FRONT BRAKE CALIPER

BRAKES, BRAKE LINES AND MASTER CYLINDER

1

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

2

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

3

ASM-MASTER CYL;TANDEM;3-4BORE

1913289

$257,24 Unit Price incl. VAT

4

LINE-BRK FL

1913797

$157,49 Unit Price incl. VAT

5

LINE-BRK FR

1913796

$157,49 Unit Price incl. VAT

6

LINE-BRK RL 60 90F 90D75B 106

1913557

$157,49 Unit Price incl. VAT

7

BRAKE LINE; REAR; RIGHT

1913558

$188,99 Unit Price incl. VAT

8

LINE-BRK MCT 71 70B 20F 210 J

1913200

$167,99 Unit Price incl. VAT

9

SEALED BRAKE SWITCH; 10 MM X 1.25 MM

4014262

4081264

$153,29 Unit Price incl. VAT

10

SEAL

5413212

9999999

Not Available

11

TEE FITTING BRAKE

7052293

$110,24 Unit Price incl. VAT

12

GUIDE BRAKE LINE REAR LH

5455385

$15,74 Unit Price incl. VAT

13

GUIDE BRAKE LINE REAR RH

5455386

$13,64 Unit Price incl. VAT

14

SCRAPER RZR T FRONT LH

5634153

$68,24 Unit Price incl. VAT

15

SCRAPER RZR T FRONT RH

5634154

$68,24 Unit Price incl. VAT

16

SCREW

7512025

$9,44 Unit Price incl. VAT

17

HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM

7519121

$7,34 Unit Price incl. VAT

18

BOLT-M10X1.25X50 HXFLG-OLIVE D

7518559

$10,49 Unit Price incl. VAT

19

BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM

7518760

$17,84 Unit Price incl. VAT

20

SCREW

7519280

$9,44 Unit Price incl. VAT

21

HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM

7519298

$7,34 Unit Price incl. VAT

22

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

23

HEX FLANGE NUT; 6 MM X 1.0 MM

7547453

$7,34 Unit Price incl. VAT

24

CLIP-NYLON C FIR-TREE

7662310

$9,44 Unit Price incl. VAT

25

RIVET-POP 5/32(.188-.250)-LF-B

7662408

$2,09 Unit Price incl. VAT

26

BOLT M5X0.8X10 16.5 SHLD

7521227

$6,29 Unit Price incl. VAT

27

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

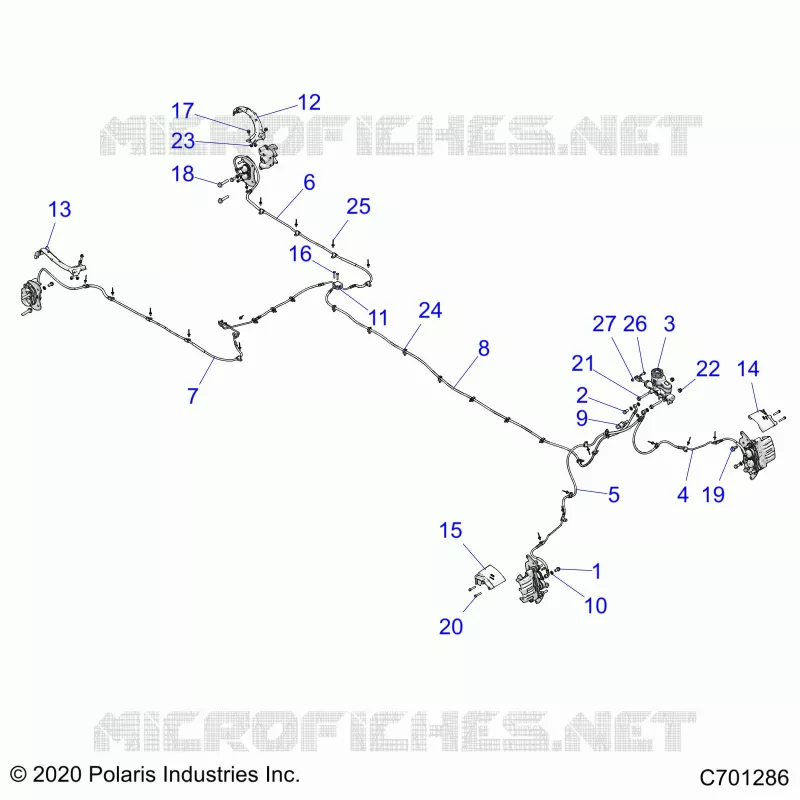

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
