ELECTRICAL, WIRE HARNESS, CHASSIS for POLARIS RZR PRO XP DELUXE from 2023

ELECTRICAL, OPTION, AUDIO

ELECTRICAL, WIRE HARNESS, PERIPHERAL

ELECTRICAL, WIRE HARNESS, CHASSIS

1

HARN-CHASSIS RZR T 96X64 DX

2416287

$3 512,24 Unit Price incl. VAT

1

HARN-CHASSIS RZR T 96X64 DX

2416631

$3 323,24 Unit Price incl. VAT

2

STRAP-PANDUIT DBL LOOP 260MM

7081916

$9,44 Unit Price incl. VAT

3

HARNESS CLIP EDGE

7081890

$19,94 Unit Price incl. VAT

4

STRAP-CABLE TIEW/EDGECLIP3-6MM

7081824

$26,24 Unit Price incl. VAT

5

CABLE TIE STRAP WITH EDGE CLIP

7081808

$10,49 Unit Price incl. VAT

6

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

7

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

8

GROMMET-65MM BLK

5813954

$13,64 Unit Price incl. VAT

9

GROMMET-SPEAKER VOLUME

5413027

$5,24 Unit Price incl. VAT

10

FUSE-ZCASE 200A

4018415200

Not Available

11

FUSE-MCASE 40A

401841440

Not Available

12

FUSE-MCASE 30A

401841430

Not Available

13

CAP-EVAP CONNECTOR

4018066

$8,39 Unit Price incl. VAT

14

FUSE-PDM

4017598

$104,99 Unit Price incl. VAT

15

FUSE BOX RELAY

4016819

$68,24 Unit Price incl. VAT

16

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

17

FUSE 5 AMP

4011652

9999999

Not Available

18

DIODE-6AMP

4011474

$83,99 Unit Price incl. VAT

19

MINI BLADE FUSE; 7.5

4011068

9999999

Not Available

20

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

21

RESISTOR-EVAP PULLUP-1K0HM

2414716

$18,89 Unit Price incl. VAT

22

DIODE-6AMP 1/4 3/16 TERM

2411035

$104,99 Unit Price incl. VAT

23

LED-PANEL MNT;12V;BLUE

2413217

$99,74 Unit Price incl. VAT

24

FUSE-ATC 30 AMP

4017557

$73,49 Unit Price incl. VAT

25

EXTERNAL GPS ANTENNA

4018662

$209,99 Unit Price incl. VAT

26

CAP BLACK 125 X 375 VINYL

5438230

$10,49 Unit Price incl. VAT

27

CABLE TIE-FIR TREE

7082003

$6,29 Unit Price incl. VAT

28

CLIP-ROUTING DIN BOX

7082020

$10,49 Unit Price incl. VAT

29

CLIP-EDGE 3-6MM THICKNESS

7082399

$10,49 Unit Price incl. VAT

30

LABEL-PDM RZR

7189870

Not Available

31

CLIP-XMAS 6.35MM HOLE TAPE-ON

7082411

$6,29 Unit Price incl. VAT

32

CLIP-FIR TREE;12.5MM OFF;90DEG

7082406

$6,29 Unit Price incl. VAT

33

EDGE CLIP; 1 MM - 3 MM

7082403

$9,44 Unit Price incl. VAT

34

CLIP-EDGE 1-3MM THICKNESS

7082402

$13,64 Unit Price incl. VAT

35

LABEL-FUSEBOX

7197253

Not Available

36

LABEL-AMP

7193569

Not Available

37

CLIP-EDGE 1-3MM THICKNESS

7082428

$9,44 Unit Price incl. VAT

38

FUSE; 15 AMP

4010859

$15,74 Unit Price incl. VAT

39

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

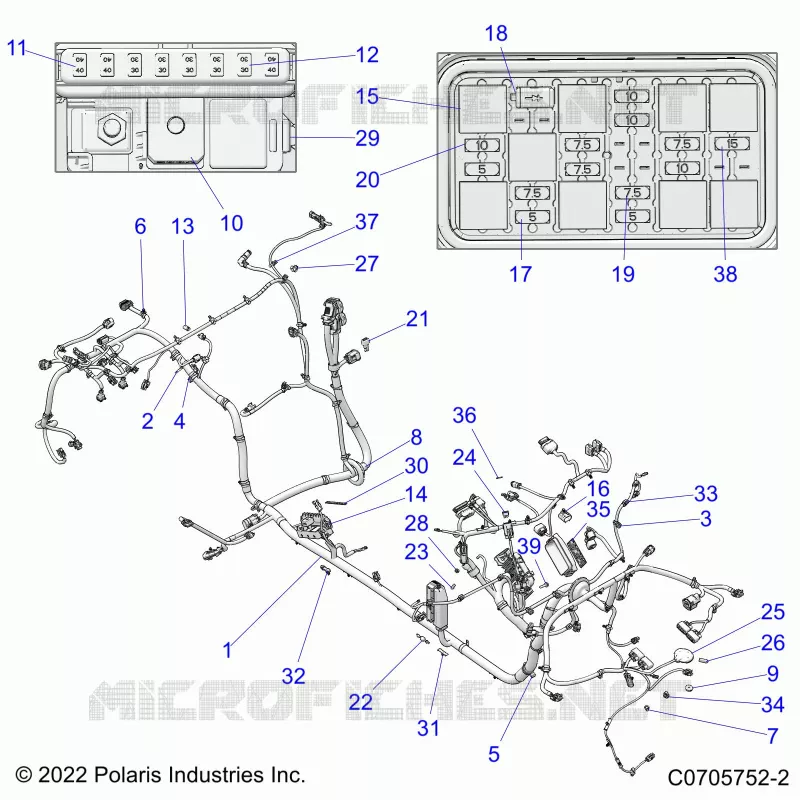

Find the detailed ELECTRICAL, WIRE HARNESS, CHASSIS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
