DRIVE TRAIN, GEARCASE COVER ASM. AND DIPSTICK

1

RING-RTNG INT 3000X-165

7710560

$15,74 Unit Price incl. VAT

2

BALL BEARING; 20 MM

3514476

9999999

Not Available

3

REVERSE COVER ASSEMBLY

1332553

9999999

Not Available

4

SCREW

7512225

9999999

Not Available

5

OIL SEAL

3610109

$15,74 Unit Price incl. VAT

6

CHAINCASE GASKET; 8.424

5412542

9999999

Not Available

7

DIPSTICK WITH MAGNET ASSEMBLY; EDGE

1332250

9999999

Not Available

8

BRKT-RESONATOR/CHAINCASE

5249149

9999999

Not Available

9

SCREW

7515399

9999999

Not Available

10

BRKT-REV ACT MNT NYLON 66

5436152

9999999

Not Available

11

COUPLER-REVERSE ACTUATOR

5436807

9999999

Not Available

12

SCREW

7512024

$9,44 Unit Price incl. VAT

13

ACTUATOR ASSEMBLY

1332477

9999999

Not Available

14

WASHER (10)

7555727

9999999

Not Available

15

SCR-#8X1 PN-PH H/L-Y

7518046

9999999

Not Available

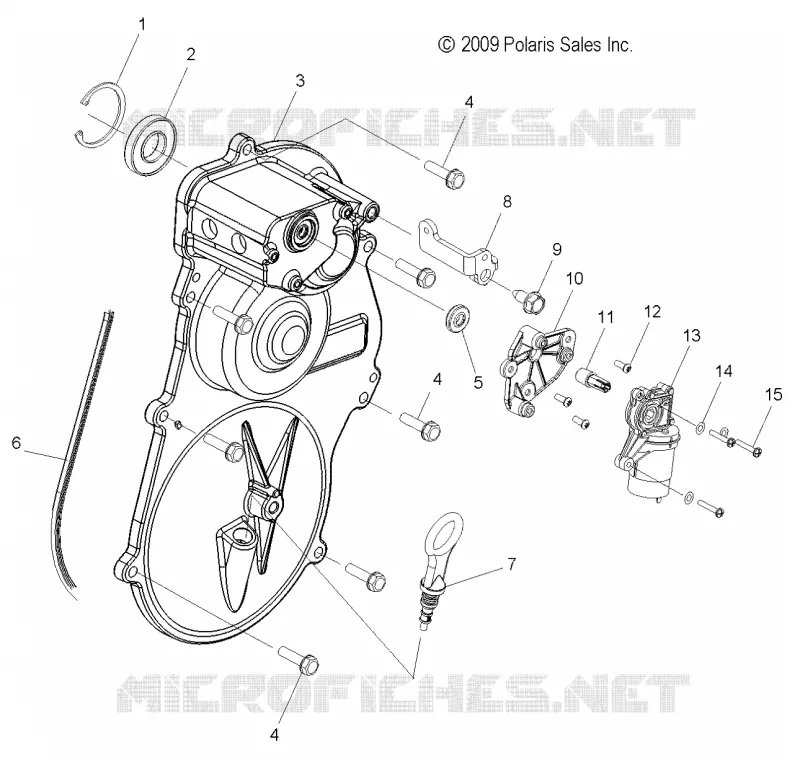

Find the detailed DRIVE TRAIN, GEARCASE COVER ASM. AND DIPSTICK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
