DRIVE TRAIN, SECONDARY CLUTCH AND DRIVE BELT for POLARIS 750 TURBO SWITCHBACK from 2009

DRIVE TRAIN, PRIMARY CLUTCH

HEADLIGHT AND TAILLIGHT

DRIVE TRAIN, SECONDARY CLUTCH AND DRIVE BELT

1

ASM-DRVN CLTEAMBSCLWTSPLWD

1322645

9999999

Not Available

2

SCREW-CAP TORX SFCH1/4-28X.625

3234381

3235592

$10,49 Unit Price incl. VAT

3

RAMP-DVN(64/38.65)NON-REV

5135537

9999999

Not Available

4

RETAINING RING

7710583

$36,74 Unit Price incl. VAT

5

SECONDARY CLUTCH ROLLER

5434534

$89,24 Unit Price incl. VAT

6

THRUST WASHER

7556226

$10,49 Unit Price incl. VAT

7

RETAINER E-RING

7710523

$5,24 Unit Price incl. VAT

8

SPRING-DRVN CLTCHLHRED/BLK

7043058

9999999

Not Available

9

WASHER-THRUST

7556227

$41,99 Unit Price incl. VAT

10

WASHER

7556370

$41,99 Unit Price incl. VAT

11

HEX SOCKET SET SCREW; 1/4-20 X 1.25

3234228

3236575

$9,44 Unit Price incl. VAT

12

FLEXLOC NUT

7542103

$10,49 Unit Price incl. VAT

13

BOLT

7515369

$9,44 Unit Price incl. VAT

14

WASHER FLAT

7555701

$7,34 Unit Price incl. VAT

15

WASHER FLAT(10)

7555734

$1,56 Unit Price incl. VAT

16

WASHER

7555957

$9,44 Unit Price incl. VAT

17

INPUT SHAFT SPACER; .875

5135611

$15,74 Unit Price incl. VAT

18

WASHER

7555917

$4,19 Unit Price incl. VAT

19

WASHER

7555864

$4,19 Unit Price incl. VAT

20

BUSHING

7556509

$3,14 Unit Price incl. VAT

21

DRIVE BELT

3211121

$192,14 Unit Price incl. VAT

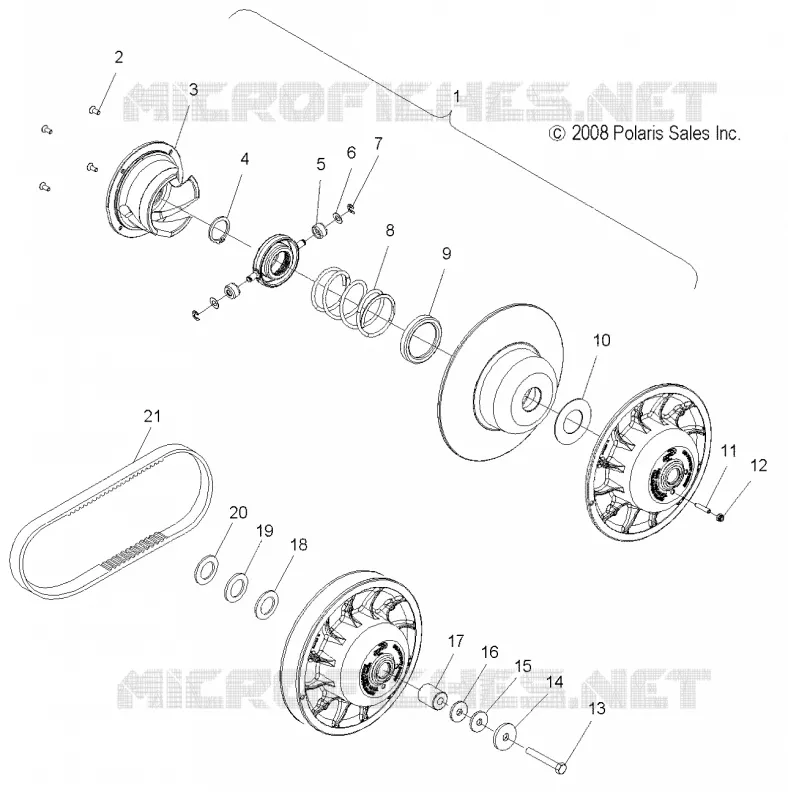

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH AND DRIVE BELT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
