1
Engine displacement
925
2
Year
2018
3
Trim
RZR XP 4 TURBO MD
4
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME
by
ELECTRICAL, HEADLIGHTS AND TAILLIGHTS
CHASSIS, MAIN FRAME AND SKID PLATES
1
2
3
3
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
1
MAIN FRAME WELD; MATTE BLACK
1022402458
Not Available
2
FRONT MAINFRAME; MATTE BLACK
1022703458
Not Available
3
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
4
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
5
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
6
PLATE-SKID BLK
5450239070
Not Available
7
SKID PLATE; GLOSS BLACK
5450556070
Not Available
8
REAR SKID PLATE; GLOSS BLACK
5452063070
Not Available
9
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
10
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
11
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
12
SUSPENSION MOUNT BRACKET; FRONT; MT BLK
5259449458
Not Available
13
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
14
DASH BRACKET; BLACK
1020984329
Not Available
15
BRKT-DIN MNT;BLK
5257304329
Not Available
16
MULTI PASSENGER SEAT BASE WELD; BLACK
1020572329
Not Available
17
SEAT SUPPORT BRACKET; FRONT; BLACK
5258097329
Not Available
18
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$7,34 Unit Price incl. VAT
19
BOLT
7519650
$7,34 Unit Price incl. VAT
20
SEAT BASE WELD; REAR; BLACK
1019777329
Not Available
21
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
22
BOX STRAP BRACKET; BLACK
5260947329
Not Available
23
BOX SUPPORT BRACKET; REAR; BLACK
5260948329
Not Available
24
SUPPRT WELD; REAR; BLACK
1019529458
Not Available
25
CLOSEOFF SUPPORT BRACKET; BLACK
5260539329
Not Available
26
SCREW
7516732
$3,14 Unit Price incl. VAT
27
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT

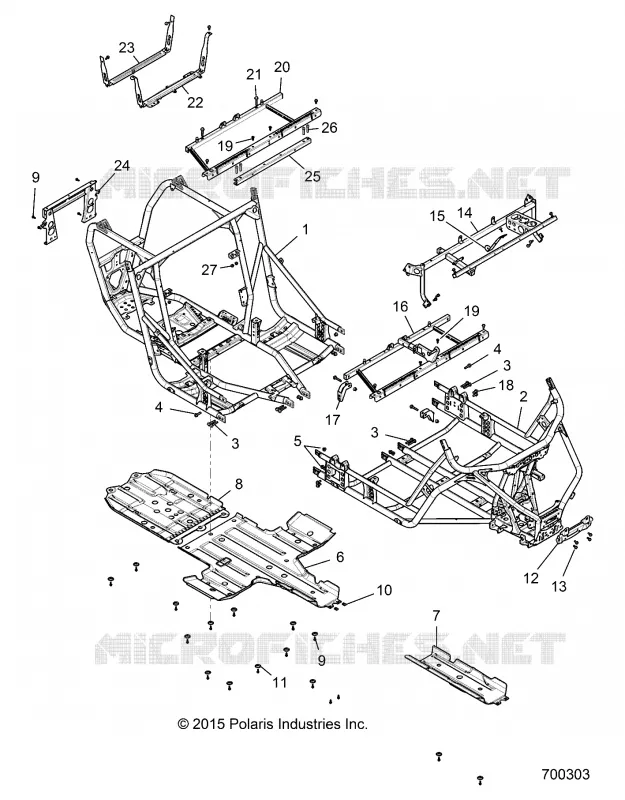

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
