1
Engine displacement
925
2
Year
2018
3
Trim
RZR XP 4 TURBO MD
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, BATTERY
by
CRANKCASE
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
RADIATOR CORE ASSEMBLY
1241117
1241388
$1 044,74 Unit Price incl. VAT
2
ASM-FAN BRUSHLESS
2413548
2414657
$512,39 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
4
MOUNT BRACKET; RADIATOR; LEFT; BLACK
5263170329
Not Available
5
RADIATOR BRACKET MOUNT; RIGHT; BLACK
5263171329
Not Available
6
RADIATOR MOUNT BRACKET; BLACK
5260767329
Not Available
7
GROMMET
7052028
$11,54 Unit Price incl. VAT
8
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
9
RADIATOR SHROUD; UPPER
5452630
$36,74 Unit Price incl. VAT
10
SCR-M6X1X16 TR/TX-M
7518936
$7,34 Unit Price incl. VAT
11
HOSE-OUT SURGE TANK TO TEE
5415443
9999999
Not Available
12
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
13
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
14
IAC HOSE; SHORT
5813672
$12,59 Unit Price incl. VAT
15
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
16
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
17
COOLANT TUBE; 1 IN
5141784
$83,99 Unit Price incl. VAT
18
COOLANT TUBE; 1 IN; MP
5141785
$83,99 Unit Price incl. VAT
19
COOLANT TUBE BRACKET; BLACK
5259433329
Not Available
20
COOLANT TUBE BRACKET; BLACK
5260766329
Not Available
21
COOLANT TUBE BRACKET
5451221
$16,79 Unit Price incl. VAT
22
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
23
SCREW
7512026
$2,09 Unit Price incl. VAT
24
ENGINE OUTLET HOSE; REAR
5414530
$141,74 Unit Price incl. VAT
25
ENGINE INLET HOSE; REAR
5414976
$83,99 Unit Price incl. VAT
26
RADIATOR HOSE; UPPER
5416028
$104,99 Unit Price incl. VAT
27
RADIATOR HOSE; LOWER; FRONT
5416030
$62,99 Unit Price incl. VAT
28
RADIATOR HOSE; LOWER; REAR
5415446
9999999
Not Available
29
CONNECTOR-TEE 1 1 1 BARBED
7052373
$19,94 Unit Price incl. VAT
30
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
31
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
32
DUAL SURGE TANK WELD
1240943
$230,99 Unit Price incl. VAT
33
1/4SAEJ2002 EPDM HOSE 61 CM
845012061
Not Available
34
FAN BRACKET MOUNT WELD; BLACK
1241122329
Not Available
35
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT

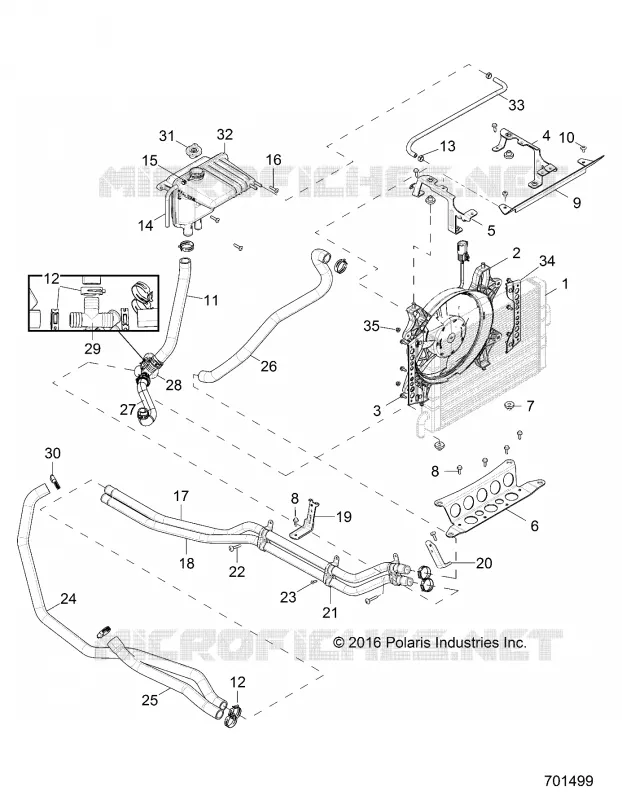

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
