1
Engine displacement
autre
2
Year
1992
3
Trim
LITE GT - 0923133
4
Parts Catalog
FRONT SUSPENSION AND SKI INDY LITE GT (4921342134009A)
5
Parts Diagram
Parts Catalog
HOOD
by
REAR TORQUE ARM INDY LITE GT (4921342134018A)
FRONT SUSPENSION AND SKI INDY LITE GT (4921342134009A)
1
SCREW
7515462
9999999
Not Available
2
SCREW
7515509
9999999
Not Available
3
NUT LOCK
7542403
9999999
Not Available
4
SCREW
7515415
9999999
Not Available
5
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
6
COMPRESSION SPRING
7041261067
Not Available
7
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSP.
7041144
9999999
Not Available
9
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
10
BOLT
7512404
$7,34 Unit Price incl. VAT
11
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
12
BUSHING
7556509
$3,14 Unit Price incl. VAT
13
SCREW
7515433
$3,14 Unit Price incl. VAT
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
BOLT
7512557
9999999
Not Available
18
ARM RH TRLG BLK.
1823137067
Not Available
18
ARM LH TRLG BLK.
1823136067
Not Available
19
STEERING ARM
5220326067
Not Available
20
WASHER
7555832
$4,19 Unit Price incl. VAT
21
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
22
DECAL RH IFS RED [No Longer Available]
7072951
Not Available
22
DECAL LH IFS RED [No Longer Available]
7072950
Not Available
23
SPINDLE BLK.
6230055067
Not Available
24
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
25
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
26
STOP RUBBER
5521231
9999999
Not Available
27
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
28
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
29
SKI SKAG WELD
1820267
$40,94 Unit Price incl. VAT
30
SKI
1820325
9999999
Not Available
31
BUSHING
5010252
9999999
Not Available
32
ROD RADIUS BLK BOTT.
1822083067
Not Available
33
ROD RADIUS BLK.TOP
1822082067
Not Available
34
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
35
BUSHING FLANGE
5431132
9999999
Not Available

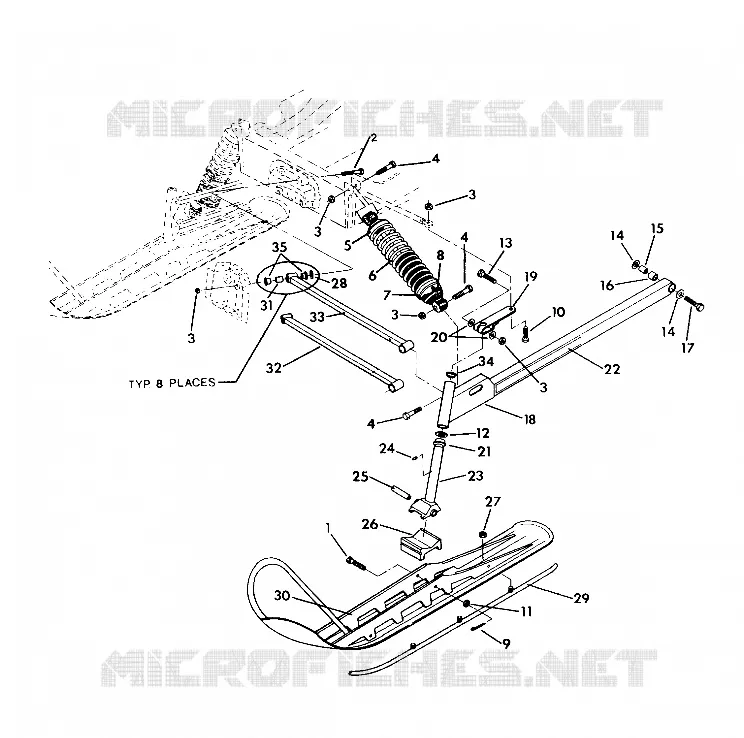

Find the detailed FRONT SUSPENSION AND SKI INDY LITE GT (4921342134009A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
