1
Engine displacement
autre
2
Year
1992
3
Trim
LITE GT - 0923133
4
Parts Catalog
SUSPENSION INDY LITE GT (4921342134015A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE INDY LITE GT (4921342134013A)
by
FRONT TORQUE ARM INDY LITE GT (4921342134017A)
SUSPENSION INDY LITE GT (4921342134015A)
1
RAIL ASM LH 133##(LITE GT) Substituted by 1541119 (Incl. 59 64-66 71-72)
1540691
Not Available
2
RAIL ASM RH 133##(LITE GT) Substituted by 1541120 (Incl. 59 64-66 71-72)
1540692
Not Available
3
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
4
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
5
WASHER
7555743
9999999
Not Available
6
ADJUSTER BOLT
7515455
9999999
Not Available
7
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
8
WHEEL; IDLER
1594021
9999999
Not Available
9
SPACER-IDLER-OUTER
5332641
9999999
Not Available
10
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
11
WASHER FLAT
7555732
9999999
Not Available
12
SCREW
7515433
$3,14 Unit Price incl. VAT
13
WASHER
7555804
$7,34 Unit Price incl. VAT
14
BUSHING
7556301
$6,29 Unit Price incl. VAT
15
SPACER IDLER R.INNER
5333086
9999999
Not Available
16
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
17
SHAFT REAR IDLER
5020395
9999999
Not Available
18
SHAFT-PIVOT ARM
5020415
9999999
Not Available
19
TUBE; SUSPENSION
5332783
9999999
Not Available
20
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
21
SPACER INNER IDLER
5010169
9999999
Not Available
22
WHEEL IDLER OUTER RED
1594039
9999999
Not Available
23
SCREW
7512227
$6,29 Unit Price incl. VAT
24
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
25
COVER-RAIL TIP
5430627
9999999
Not Available
26
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
27
SPACER
5332787
9999999
Not Available
28
ROLLER-SPRING
5430540
9999999
Not Available
29
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
30
BUMPER; RAIL
5810554
9999999
Not Available
31
RIVET
7621476
$2,09 Unit Price incl. VAT
32
REINF.; BUMPER
5222629
9999999
Not Available
33
BOLT
7512404
$7,34 Unit Price incl. VAT
34
INSERT-WHEEL
5430789
5431531
$19,94 Unit Price incl. VAT
35
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
36
BOLT
7512659
9999999
Not Available
37
SLIDE RED (HIFAX)
5521104
5521452
$73,49 Unit Price incl. VAT
38
SPACER
5332786
$13,64 Unit Price incl. VAT
39
SPACER OUTER
5332784
9999999
Not Available
40
TRACK
5410615
5410727
Not Available

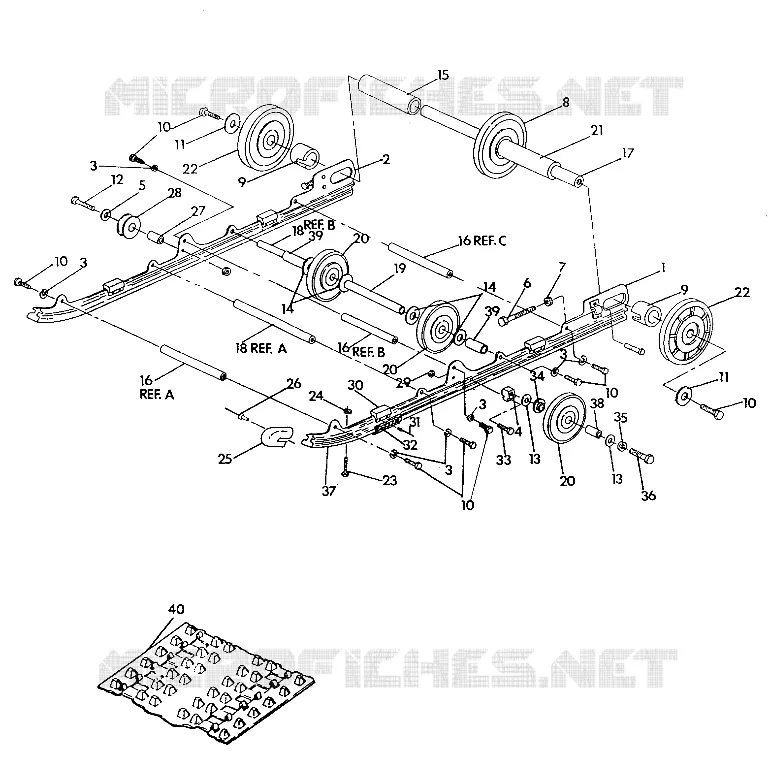

Find the detailed SUSPENSION INDY LITE GT (4921342134015A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
