1
Engine displacement
800
2
Year
2010
3
Trim
RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ
4
Parts Catalog
REAR RACK AND FENDERS
5
Parts Diagram
Parts Catalog
REAR BUMPER
by
BARKE CALIPER MOUNTING
REAR RACK AND FENDERS
9
10
11
12
12
13
14
14
15
15
16
17
18
18
19
19
20
20
20
21
22
23
24
25
26
27
28
29
1
FENDER FLARE; REAR; RIGHT; GLOSS BLACK
5438210070
Not Available
2
FENDER; REAR; RIGHT
5437474464
Not Available
2
FENDER; REAR; RIGHT; BRIGHT PEARL WHITE
5437474538
Not Available
2
FENDER; REAR; RIGHT; SUNSET RED
5437474520
Not Available
2
REAR FENDER-PAINTEDT.GOLDRH
5437474578
Not Available
2
FENDER; REAR; RIGHT; INDY RED
5437474293
Not Available
2
FENDER REAR RIGHT TURBO SILVER
5437474402
Not Available
2
REAR FENDER; RH; I.RED
5437393293
Not Available
2
FENDER; REAR; RIGHT; SB GRN MTLC
5437393498
Not Available
3
ASM-RACK RR BLK
2633389070
Not Available
4
REAR FENDER-PAINTED;I.RED;LH
5437472293
Not Available
4
FENDER; REAR; LEFT; BRIGHT PEARL WHITE
5437472538
Not Available
4
FENDER; REAR; LEFT; SUNSET RED
5437472520
Not Available
4
REAR FENDER; LH; I.RED
5437392293
Not Available
4
FENDER REAR LEFT SB GRN MTLC
5437392498
Not Available
4
FENDER; REAR; LEFT; STEALTH BLACK
5437472464
Not Available
4
FENDER; REAR; LEFT; TURBO SILVER
5437472402
Not Available
4
REAR FENDER-PAINTEDT.GOLDLH
5437472578
Not Available
5
FENDER FLARE; REAR; LEFT; GLOSS BLACK
5438211070
Not Available
6
TIE-DOWN RACK BRACKET; LEFT; GLOSS BLACK
5436849070
Not Available
7
TIE DOWN RACK BRACKET RIGHT GLOSS BLACK
5436850070
Not Available
8
PANEL DIVIDER; REAR; LEFT; GLOSS BLACK
5437395070
Not Available
9
DIVIDER PANEL; REAR; GLOSS BLACK
5437394070
Not Available
10
DIVIDER PANEL REAR RIGHT GLOSS BLACK
5437396070
Not Available
11
RACK SUPPORT WELD; REAR; BLACK
1015565329
Not Available
12
SCREW
7517561
$3,14 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
SCREW
7517230
$2,09 Unit Price incl. VAT
15
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
16
FOAM-SOUND ATTN;CUT
5813298
9999999
Not Available
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
WASHER
7555919
$7,34 Unit Price incl. VAT
19
LATCH 1/4 TURN
7081500
$10,49 Unit Price incl. VAT
20
SCREW
7517685
$3,14 Unit Price incl. VAT
21
BOLT-5/16-18X2.25 FLG TAP/R-M
7518382
9999999
Not Available
22
SHIELD-BOX
5251419
9999999
Not Available
23
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
24
TIEDOWN RING
7081195
$20,99 Unit Price incl. VAT
25
COVER-STORAGE BLK
5437822070
Not Available
26
SEAL-STORAGE
5813400
9999999
Not Available
27
GROMMET-STORAGE
5813401
9999999
Not Available
28
FOIL-RH PANEL
5813380
9999999
Not Available
29
GROMMET-CAPLUG 0.75
5413582
9999999
Not Available

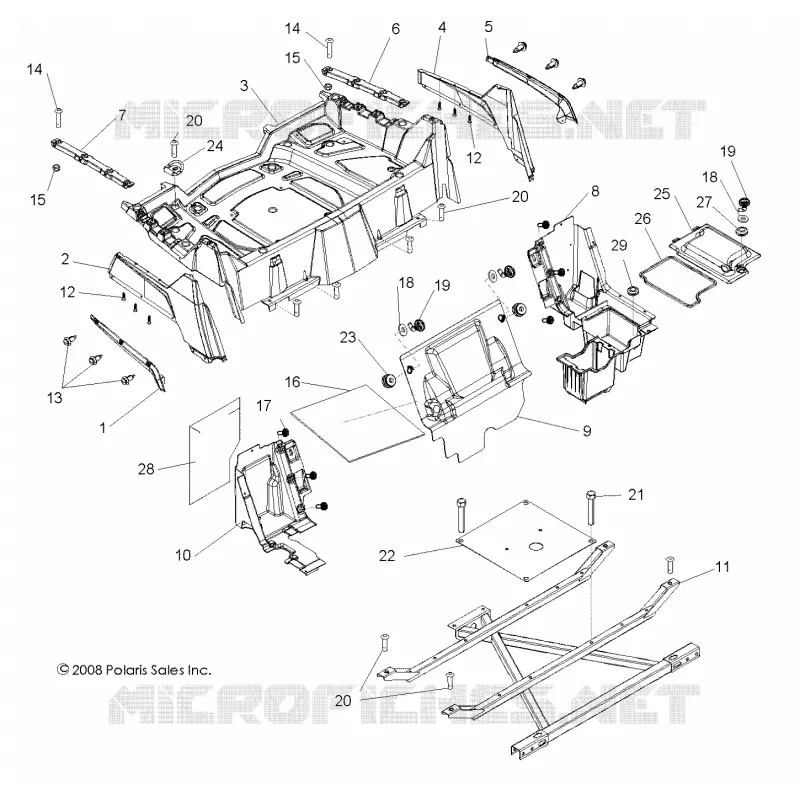

Find the detailed REAR RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
