Engine displacement
800
2
Year
2010
3
Trim
RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ
4
Parts Catalog

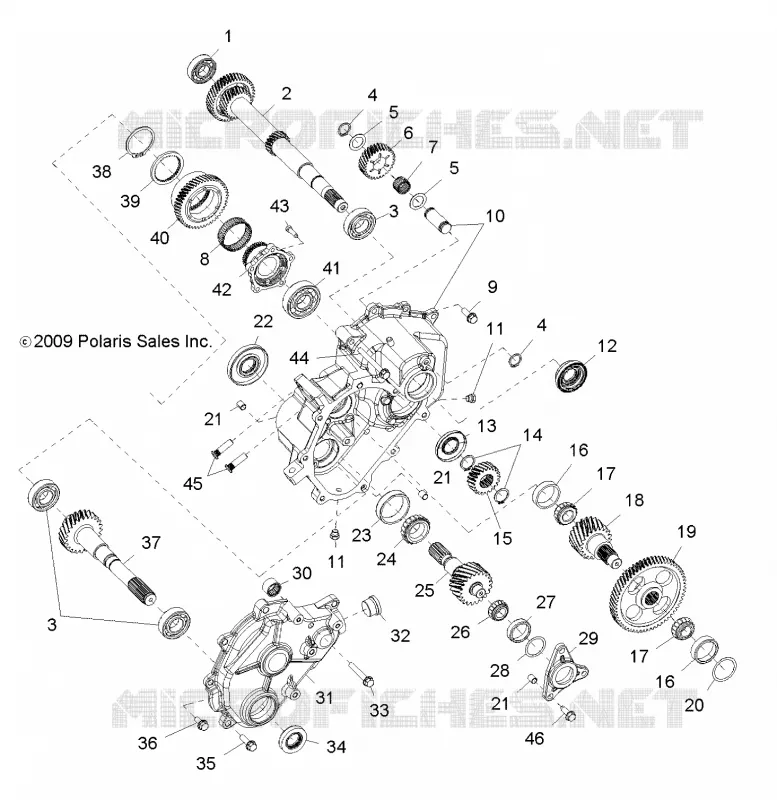

DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 (BUILT 5/17/10 AND AFTER)
5
Parts Diagram
Parts Catalog
WHEELS, REAR
by
DRIVE TRAIN, MAIN GEARCASE INTERNALS 2 (BUILT 5/17/10 AND AFTER)
DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 (BUILT 5/17/10 AND AFTER)
-
16
16
17
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
-
ASM-SUB TRASMISSION
3235269
9999999
Not Available
1
BALL BEARING
3234549
9999999
Not Available
2
ASM-GEAR SHAFT/PIN(026GS124X)
3234550
9999999
Not Available
3
BALL BEARING
3234502
$54,59 Unit Price incl. VAT
4
RING-RETAINING(012HR128)
3234552
9999999
Not Available
5
THRUST WASHER
3234878
9999999
Not Available
6
REVERSE GEAR 29T
3234554
9999999
Not Available
7
NEEDLE BEARING
3234555
9999999
Not Available
8
NEEDLE BEARING
3234536
9999999
Not Available
9
BOLT-HEX FLANGED 026HM103
7518172
9999999
Not Available
10
TRANSMISSION HOUSING KIT
3235078
9999999
Not Available
11
DRAIN PLUG
5133731
$20,99 Unit Price incl. VAT
12
OIL SEAL
3234551
$73,49 Unit Price incl. VAT
13
OIL SEAL
3235073
9999999
Not Available
14
RETAINING RING
3234547
$9,44 Unit Price incl. VAT
15
MAIN PINION GEAR
3234548
9999999
Not Available
16
BEARING CUP
3234556
9999999
Not Available
17
BEARING CONE
3234557
9999999
Not Available
18
PINION SHAFT20T(026GS110)
3234558
9999999
Not Available
19
OUTPUT GEAR; MAIN
3234559
9999999
Not Available
20
KIT-SHIM INTER.SHAFT(026KV101)
3234560
9999999
Not Available
21
DOWEL BUSHING
3234503
9999999
Not Available
22
OIL PINION SEAL
3610102
$57,74 Unit Price incl. VAT
23
TAPERED BEARING CUP
3235079
9999999
Not Available
24
TAPERED BEARING CONE
3235080
$80,84 Unit Price incl. VAT
25
PINION SHAFT21T(026GS109)
3234564
9999999
Not Available
26
BEARING CONE
3234565
9999999
Not Available
27
BEARING CUP
3234566
$27,29 Unit Price incl. VAT
28
KIT-SHIM RR BEARING(026KV102)
3234567
9999999
Not Available
29
RETAINING BEARING CAP
3234568
9999999
Not Available
30
NEEDLE BEARING
3234561
9999999
Not Available
31
TRANSMISSION COVER ASSEMBLY
3234496
9999999
Not Available
32
PLUG-FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
33
SCR-5/16-18X2.125(026HM103-2)
3234571
9999999
Not Available
34
OIL SEAL
3234570
$52,49 Unit Price incl. VAT
35
SCR-5/16-18X1.125(026HM117-1)
3234618
9999999
Not Available
36
SCR-5/16-18X.75 FL(026HM103-4)
3234511
9999999
Not Available
37
PINION SHAFT24T(026SS106)
3234569
9999999
Not Available
38
RETAINING RING
3234879
9999999
Not Available
39
RETAINING PLATE
3234874
9999999
Not Available
40
GEAR-CLUTCH REV 47T(026GS118X)
3234542
3235290
$309,74 Unit Price incl. VAT
41
BALL BEARING
3234545
9999999
Not Available
42
PARK FLANGE
3234877
9999999
Not Available
43
SCREW-FLANGE HEX(1/4-20X.875)
3235082
9999999
Not Available
44
SCR-5/16-18X3.0
3234901
9999999
Not Available
45
PRESS FIT STUD
7518378
$3,14 Unit Price incl. VAT
46
SCREW-SELF THREADING
3235081
9999999
Not Available
