1
Engine displacement
autre
2
Year
1996
3
Trim
EURO STORM SKS - E965582
4
Parts Catalog
INSTRUMENTS
5
Parts Diagram
Parts Catalog
HOOD
by
STEERING STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STORM S (4931593159B006)
INSTRUMENTS
1
SPEEDOMETER; (KPH)
3280245
9999999
Not Available
1
SPEEDO MPH
3280243
9999999
Not Available
2
BULB DASH
4030050
9999999
Not Available
3
BULB WARN (AGR.)
4030052
9999999
Not Available
4
GASKET ANGLEDRIVE
5811250
9999999
Not Available
4
ANGLEDRIVE;CLUSTER
3280244
9999999
Not Available
5
SCREW
7516303
Not Available
6
CABLE SPEEDO W/FOIL
3280203
9999999
Not Available
7
CLAMP WIRE HARNESS
5432292
Not Available
8
SCREW;SELF-TAPPING
7522024
9999999
Not Available
9
HARNESS WIRE(LOW LEVEL)
2460568
9999999
Not Available
10
SCREW (10)
7516304
Not Available
11
SCREW
7516305
9999999
Not Available
12
CASE ASM LOW LEVEL
2652163
Not Available
13
TACH; 6-P
3280242
9999999
Not Available
14
REFLECTOR PANEL ASM LOW
2652164
Not Available
15
LENS ASM.
2652162
9999999
Not Available
16
WASHER
7555904
$1,56 Unit Price incl. VAT
17
SCREW
7512026
$2,09 Unit Price incl. VAT
18
INST.CLUSTER ASM (LL) (Incl. 1-17)
3280196
Not Available

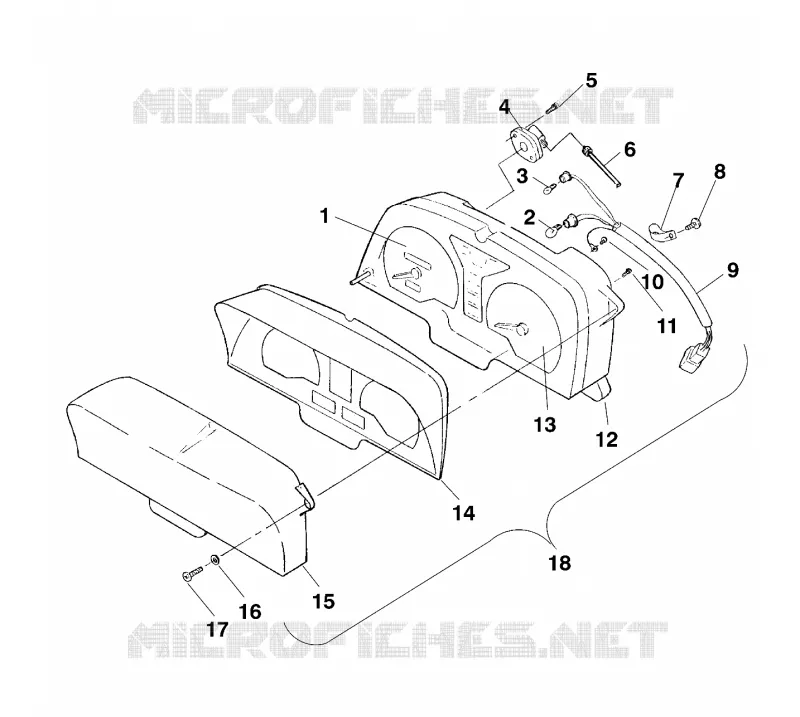

Find the detailed INSTRUMENTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
