1
Engine displacement
autre
2
Year
1996
3
Trim
EURO STORM SKS - E965582
4
Parts Catalog
COOLING SYSTEM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159B010)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI STORM 0965782, STORM SKS 0965582, EURO STORM E9657 (4931593159B004)
by
TOOL KIT/BOX STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EU (4931593159B012)
COOLING SYSTEM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159B010)
1
EXCHANGER COOL.REAR
2511254
9999999
Not Available
2
TAPE 35FT SEAL R.COOL.
5811252
Not Available
3
CLAMP HOSE GRY 35MM.
7080564
9999999
Not Available
4
HOSE COOLING
5410758
9999999
Not Available
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
7
HOSE (1 X 10 FT.)
8450048305
Not Available
8
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
9
COOLER; SIDE; RIGHT
2511258
9999999
Not Available
9
COOLER LH SIDE(XTRA 10)
2511257
9999999
Not Available
10
GUARD COOL.EXT.
5222863
9999999
Not Available
11
CLAMP HOSE SIL 27MM.
7080562
7080841
$13,64 Unit Price incl. VAT
12
HOSE-CROSSOVER
5410324
9999999
Not Available
13
HOSE-CROSSOVER
5410350
9999999
Not Available
14
EXCHANGER COOL.CTR.
2511239
9999999
Not Available
15
HOSECTR.COOLER/TOP SURGE
5411070
9999999
Not Available
16
TANK-COOLANT
5432168
9999999
Not Available
17
HOSE SURGETANK/WATERPUMP
5411069
Not Available
18
HOSE AUTOSTAT/CTR.SURGE
5411066
9999999
Not Available
19
HOSE AUTOSTAT/ENGINE
5411068
Not Available
20
HOSE AUTOSTAT/BRK.COOLER
5411067
Not Available
21
HOUSING THERMOSTAT
5130943
Not Available
22
AUTOSTAT 120DEG.
7051017
Not Available
23
GASKET THERMOSTAT
5830020
9999999
Not Available
24
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
26
PLUG; AIR VENT
3083350
9999999
Not Available
27
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
28
CAP THERMOSTAT HSG MACH.
5130942
9999999
Not Available
29
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
30
FILTER WATER LINE
2530010
9999999
Not Available
31
FUEL LINE; 1/4 ID
84500031525
Not Available
32
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
33
FITTING
7052099
$9,44 Unit Price incl. VAT
34
HOSE R.COOLER 3-WAY
5410845
9999999
Not Available
35
CONNECTOR TEE 3/4
7052093
$15,74 Unit Price incl. VAT
36
HOSEWATER305 CM.
8450050305
Not Available
37
HOSE 3-WAY R.COOLER
5410962
9999999
Not Available
37
HOSE R.COOLER (SKS) (SKS RMK)
5410972
Not Available
38
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
39
BOLT
7512240
9999999
Not Available
40
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
41
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT

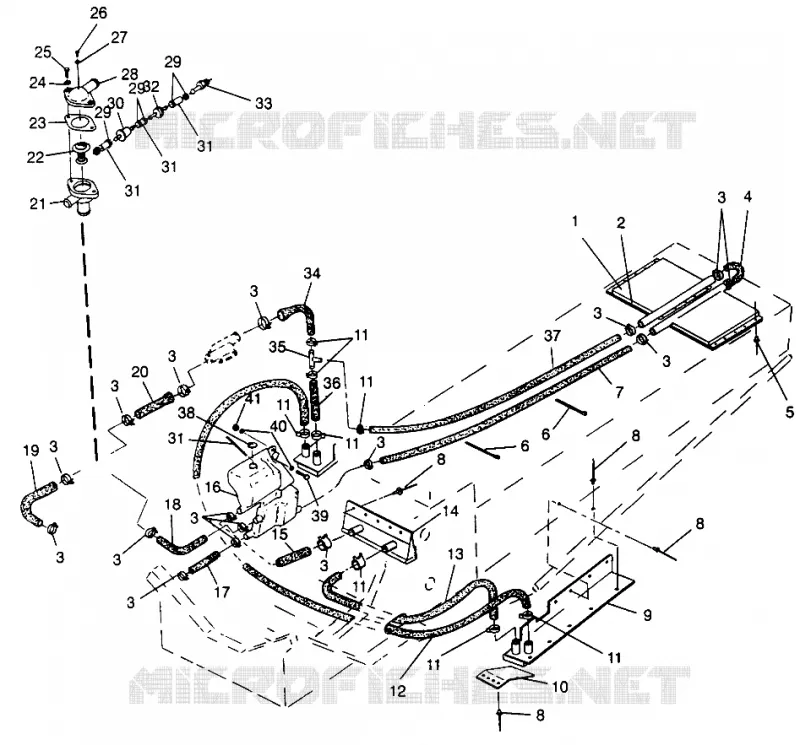

Find the detailed COOLING SYSTEM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159B010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
